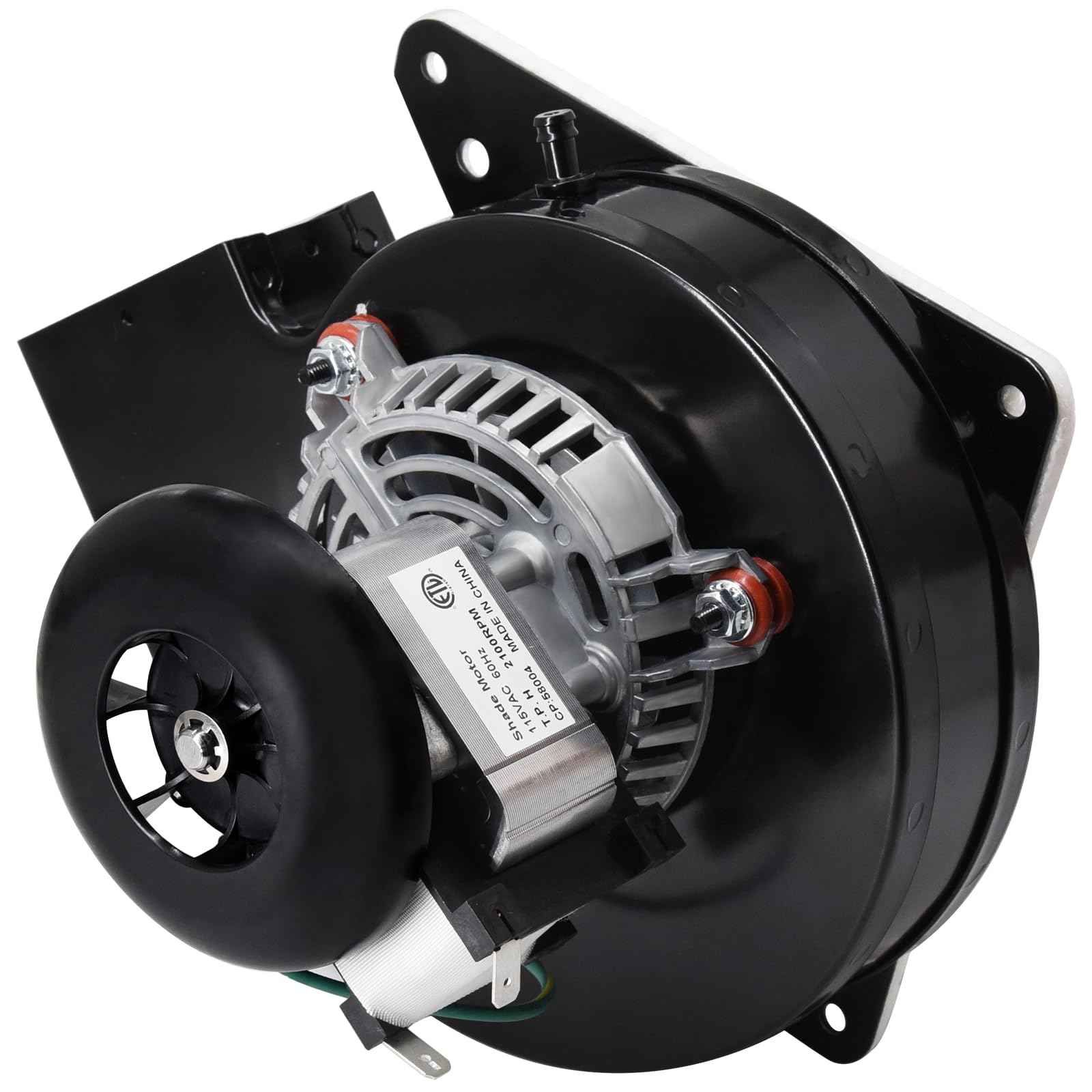

Hiorucet Draft Inducer Motor for Jakel Inc J238-112-11128, J238-112-11258, J238-112-11195, Goodman B1859005, B1859005S, Fasco A157, Replacement for Goodman Furnace & Jakel Inducer Motor with Gasket.

Brand: Hiorucet

Color: Black

Features:

• ★This Brand New Part is a Replacement Draft Inducer Vent Motor Assembly Kit for Goodman Furnaces. It is part of Goodman's GMP series. For use with Goodman Janitrol & Amana equipment. Replaces Amana Part Numbers: B1859005, B1859005S.
• ►【Compatibility】 Goodman Inducer Motor Models: B1859005, B1859005S, B18590-05, B18590-05S, J238-112-11128, 66005, 7002-2307, 7002-2771, 7058-0229, Fasco A157, 4MH09, 68005, 7002-3219, B40590-35, J238-11128, R7-RFB185, 12159, 17570. ►Rotom Models: FB-RFB859, FB-RFB595, RFB595, FB-RFB185, RFB185.
• ►【Compatibility】 Jakel Inducer Motor Models: J238-112-11128, J238-112-11258, J238-112-11195, J2380-112-11258, J238-11128. ►Fasco: 70022307, 7058-0229, 70022771, 70023219. ►AllTemp: FB-RFB859. ►Mars: 10703. ►Nidec/US Motors: N157. ►Emerson: 2569, 3106, F33JCS-3655.

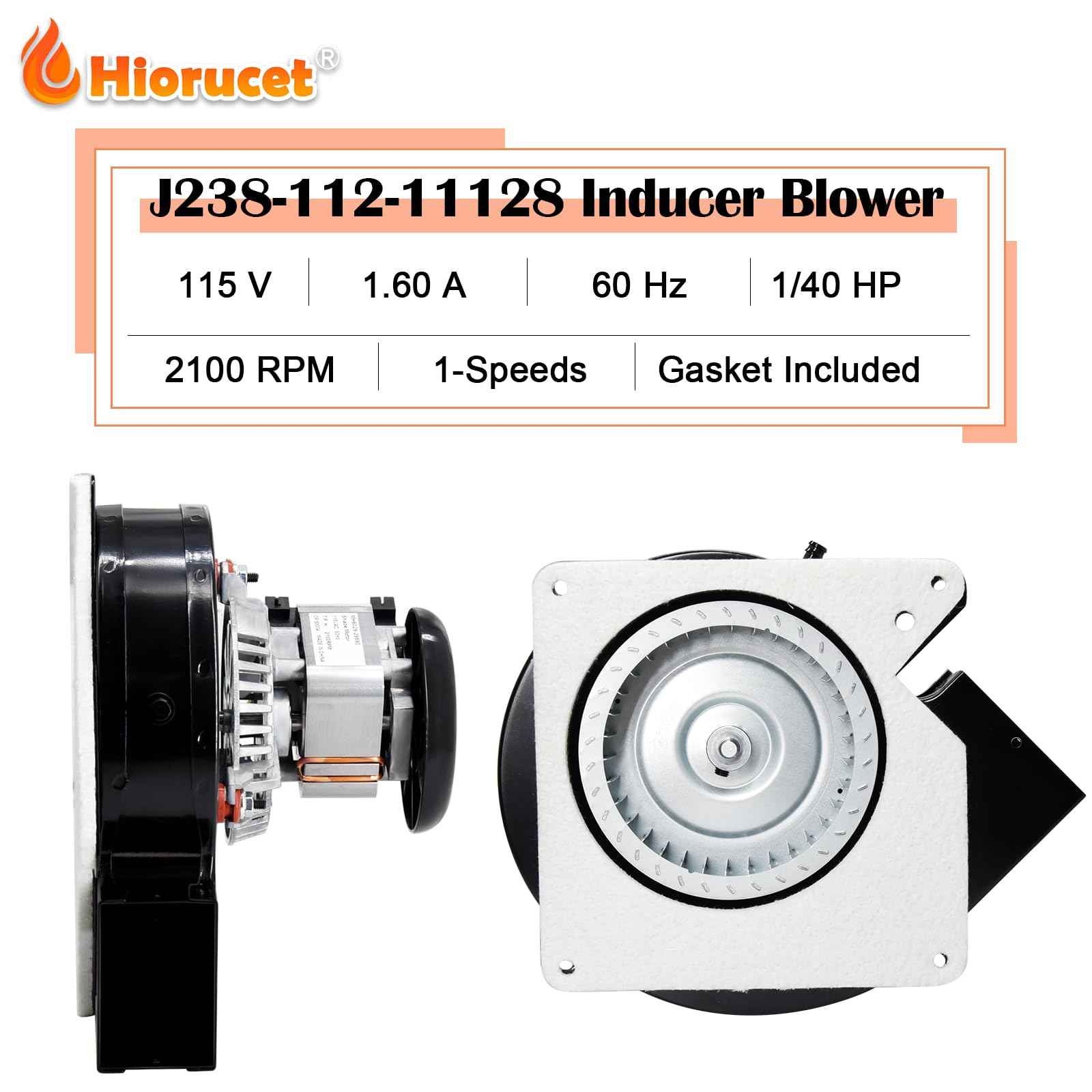

• ►【Specifications】 J238-112-11128 Blower Motor Voltage: 115V; HP: 1/40; RPM: 2100; Amps: 1.60; Hertz: 60; NEMA Frame: C-Frame; Overload Protection: Automatic; Phase: Single; Speeds: 1; Bearings: Ball; Enclosure: Open; Insulation Class: B; Motor Type: Shaded Pole; Mounting Option: Mounting Hole; Gasket Included.
• ►【Function】 This goodman b1859005 draft inducer motor is designed to expel the exhaust gas from the furnace. Older inefficient furnaces allowed the flue gas to escape the unit with virtually no resistance. Newer high efficient furnace heat exchangers are so restrictive that the flue gases cannot exit the furnace though natural draft. Therefore, the inducer is required to pull the flue gases through the heat exchanger. The inducer motor is usually the first thing that starts up when your furnace calls for heat.

model number: B1859005S

Details: This Draft Inducer Motor Replaces Goodman Janitrol & Amana Equipment.
Motor Voltage: 115
HP: 1/30(40)
RPM: 2100
Amps: 1.60
Hertz: 60
NEMA Frame: C-Frame
Overall Length (In.): 8.69
Overload Protection: Automatic
Phase: Single
Speeds: 1
Bearings: Ball
Enclosure: Open
Insulation Class: B
Motor Type: Shaded Pole
Mounting Option: Mounting Holes

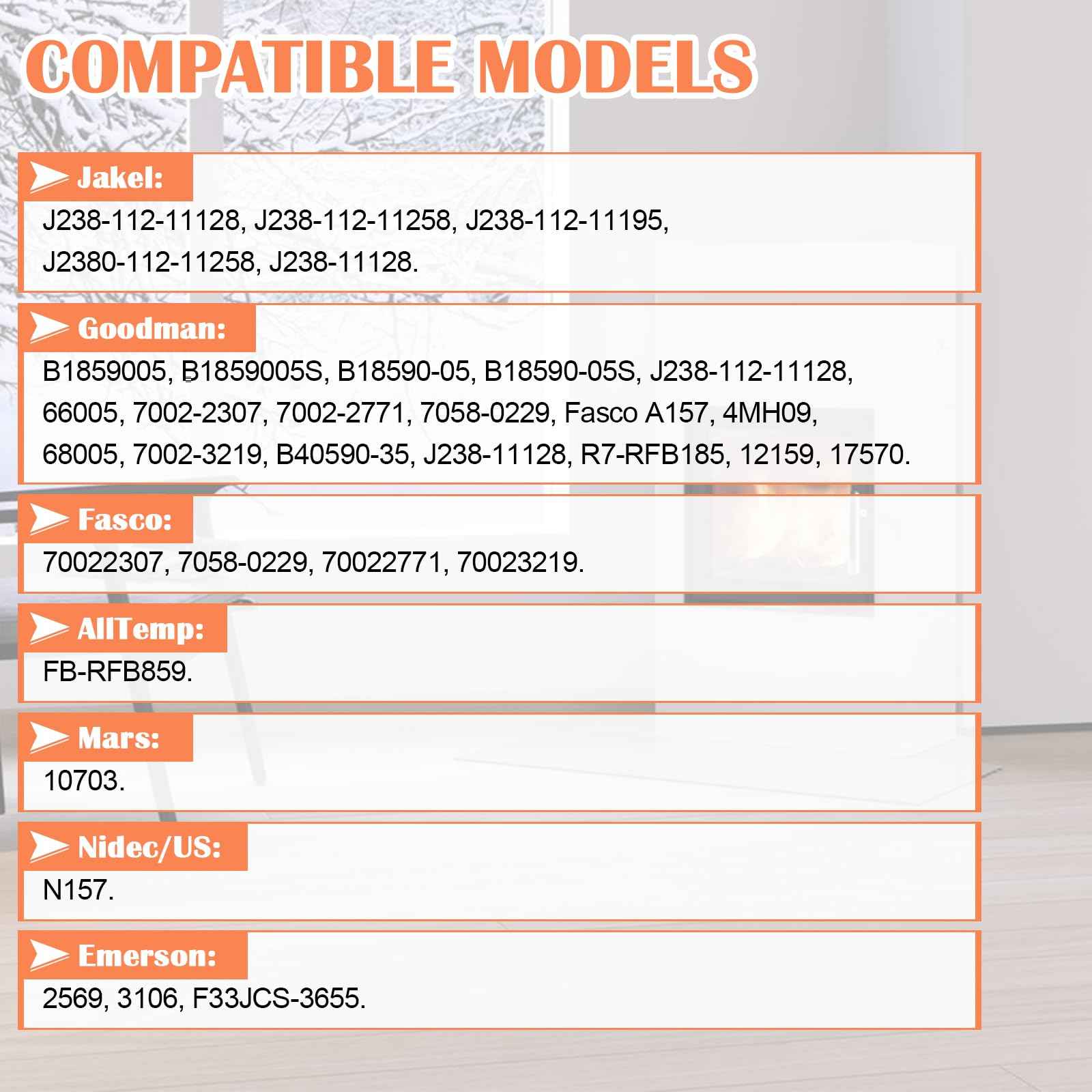

►Goodman: B1859005, B1859005S, B18590-05, B18590-05S, J238-112-11128, 66005, 7002-2307, 7002-2771, 7058-0229, Fasco A157, 4MH09, 68005, 7002-3219, B40590-35, J238-11128, R7-RFB185, 12159, 17570.
►Jakel: J238-112-11128, J238-112-11258, J238-112-11195, J2380-112-11258, J238-11128.
►Rotom: FB-RFB859, FB-RFB595, RFB595, FB-RFB185, RFB185. Fasco: 70022307, 7058-0229, 70022771, 70023219.
►AllTemp: FB-RFB859.
►Mars: 10703.
►Nidec/US Motors: N157.
►Emerson: 2569, 3106, F33JCS-3655.
►Other Models: GMP050-3, GMP075-3, GMP075-4, GMP100-3, GMP100-4, GMP100-5, GMP125-4, GMP125-5, GMP150-5, GMPE075-3, GMPE075-3A, GMPE100-4, GMPE100-4A, GMPE125-5, GMPE125-5A, GMPH050-3, GMPH075-4, GMPH080-5, GMPH120-5, GMPV075-1.5, GMPV075-3, GMPV100-3, GMPV100-5, GMPV125-3, GMPV125-5, GPD050-3, GPD075-3, GPD100-4, GPD125-4

Package Dimensions: 10.2 x 9.6 x 7.9 inches
