36V 15A Golf Cart Charger Special for Lead-Acid Batteries D-Type Plug for EZGO TXT 73345-G01

Brand: ieadaor

Features:

• 【36V 15A Golf Cart Battery Charger】Dedicated DC Voltage for Lead Acid Battery: 36V | DC Current: 15A | AC Input: AC110V | Output Voltage: 58.8V | Plug Standard: Powerwise / "D" Type Plug | Golf Cart Charging Controller for EZGO | Compatible EZ-GO Models: TXT, TXTE, TXT PDS, Freedom TXT, Medalist, Shuttle
• 【Intelligent protection function】 Input low and overvoltage protection | Charger overheating protection | Output no-load protection | Output short circuit/reverse connection protection | Output overcurrent/overvoltage protection |Fully charged automatic shutdown
• 【Sturdy and lightweight design, aluminum profile】 The input line is 0.85m long, the output line is 2.8m long, and the product weight is 1855G; the protection level is IPX4.
• LED Indicators: There are 3 LED indicators: LED1. Red Power | LED2. Blue charging | LED3. fully charged green
• 1 year warranty

Details: Lead-acid battery special charger, charger with big brand prefix

36V 15A Golf Cart Charger EZGO TXT Battery Charger for 36V Golf Cart - Type D Plug 73345-G01

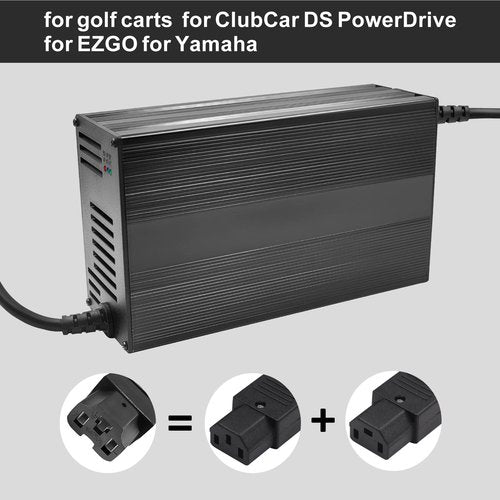

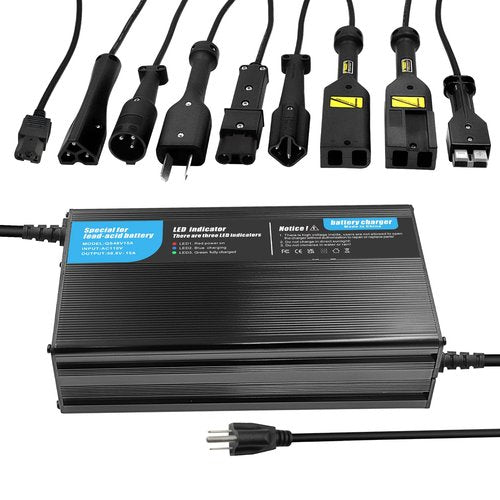

Compatible with: All Powerwise - "D" shaped 2-pin plugs

EZGO Replacement Part Numbers: 19300-88, 28115-G04, 20484, 5-002AP, CP602718, 25970-A88, 28080, 28115GO4, 28115G04, 602718, 28115-G01, 28105G01, 14390, 915-3610, 2605747 , 25970

EZGO Year of manufacture: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009

Replacement Golf Cart Model:

PowerWise, PowerWise II, Powerwise QE, Lestronic II, Lestermatic, E-Series, Delta Q, Schumacher, Eagle Dual Pro DPI Accusense, Accupower, LVS, Stanley, Schauer, Clarke, Quick Charge, MadJax

Compatible with EZ-GO Mfg. Year: 1995-2

Compatible with EZ-GO models: TXT, TXTE, TXT PDS, Freedom TXT, Medalist, Shuttle

Product Specifications

DC voltage: 36V

DC current: 15A

AC input: AC110V

Output voltage: 44.1V

Material: Aluminum

Plug Standard: Powerwise / "D" Type Plug

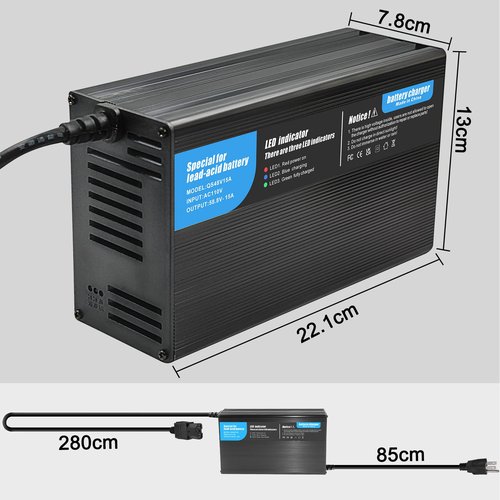

Input cable length: 0.85m

Output cable length: 2.8m

Weight: 1855g

Warranty: 1 year

Intelligent protection function:

*Input low voltage and over voltage protection

* Overheat protection charger

*Output no-load protection

*Output short circuit/reverse protection

*Output overcurrent/overvoltage protection

*Automatic shutdown when fully charged

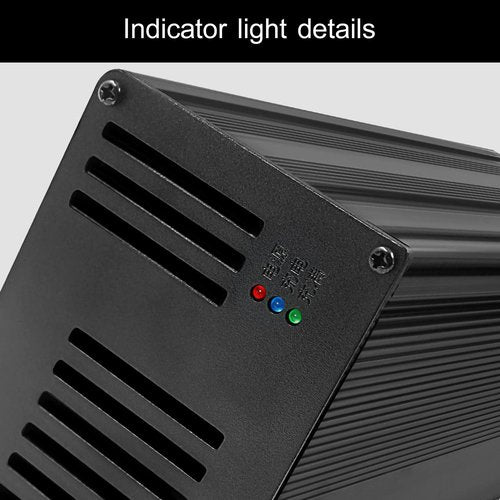

LED Indicator Description

A total of 3 LED indicators

LED1: red power

LED2: blue charging

LED3: fully charged green

EAN: 0786750197961

Package Dimensions: 14.2 x 9.8 x 4.7 inches
