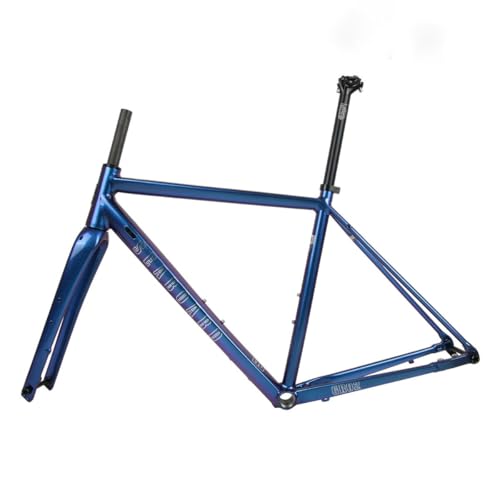

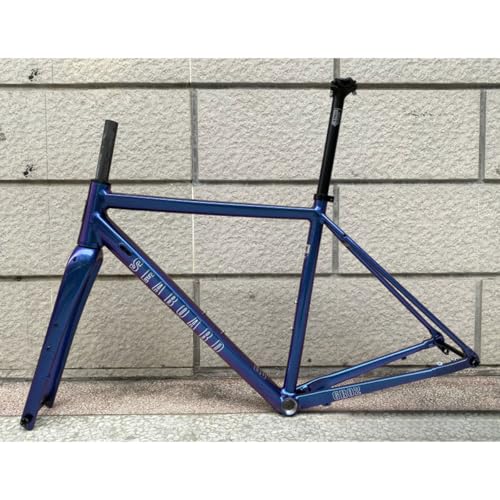

700C Gravel Bike Frame - Aluminum Alloy with Carbon Fork - Blue, 59cm

• 【Aluminum Alloy Frame】6061 T6 Aluminum alloy Material, Lightweight aluminum alloy has good welding performance, so that the frame has a high strength and not easy to break characteristics.
• 【Gravel bike frameset】700C Road Bike Frameset, 44cm/47cm/50cm/53cm/56cm/59cm disc brake frame, thru axle frame, max for 700*40c tires.
• 【Frameset Specifications】For seatpost 27.2mm + Fit for 41.8-52mm Concealed headset + For 700C Wheels. 68mm threaded bottom bracket, Disc brake, Thru Axle Front 12x100mm Rear 12x142mm,Fork top tube length 260mm.
• 【Threaded screw-in bottom bracket】precision threads to enhance lateral stability, not easy to loosen, and reject rattles.
• 【Package】Includes frame, Carbon Fiber fork, Front Thru axle lever, Rear Thru axle lever, seatpost, Seatpost Clamp, Water bottle cage screws, headset, Cable Guides.

700C Gravel Road Bike Frameset 45cm 48cm 51cm 54cm luminum alloy steel frame With Carbon Fiber Fork, F12*100MM R12*142mm Thru-Axle Frame with Carbon Fiber Fork,Shifter disc brakes are internally routed.

Product Name: 700C Gravel Road Bike Frameset
Material: frame + carbon fibre fork
Frame Sizes: 44cm , 47cm , 50cm , 53cm , 56cm , 59cm
Wheel Size: 700Cwheels
Seatpost: 27.2mm
Head tube 28.6mm
Headset 41.8-52mm
Bottom Bracket Standard: Threaded BB68
Fit for Tire：700*42C
Spacing: Front 12x100mm Rear 12x142mm
Fork top tube length: 260mm
Brake type: disc brake
Construction: Internal cable routing
Colours: Silver Gray , Glossy Black , Dark Gray , White , Teal , Charcoal Gray , Army Green , Bright Orange , Blue , Pink

rider height:
44CM-------145-160cm
47CM-------160-170cm
50CM-------170-180cm
53CM-------180-185cm
56CM-------height≥185cm

frame Weight:
44cm≈1584G,
47cm≈1614G,
50cm≈1644G,
53cm≈1674G,
56cm≈1704G
Fork≈496G

Package:
Frame*1 + fork*1 + Seatpost*1 + Headset*1 +Front Thru axle lever*1,Rear Thru axle lever*1 + Seatpost Clamp*1 + Cable Guides*1 + Over wire fastener*1+Water bottle cage screws*4

Notice:
1. Due to different shooting angles, there will be chromatic aberration problems, because there will be 1-2cm error due to manual measurement, please understand.
2. Please check if the size of bike frame is correct before purchasing.
3. If you have any questions, please feel free to contact us, we will reply you in time.
