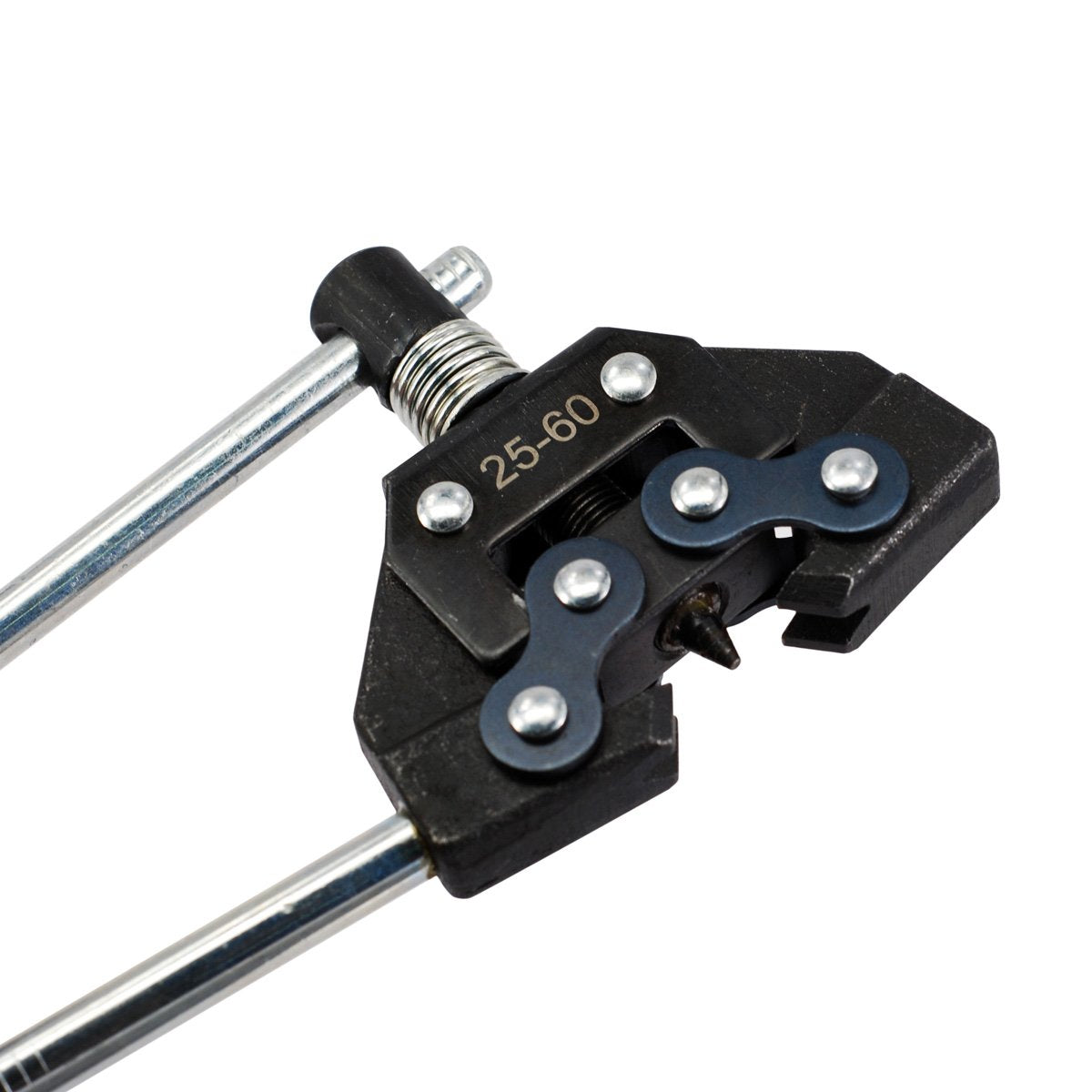

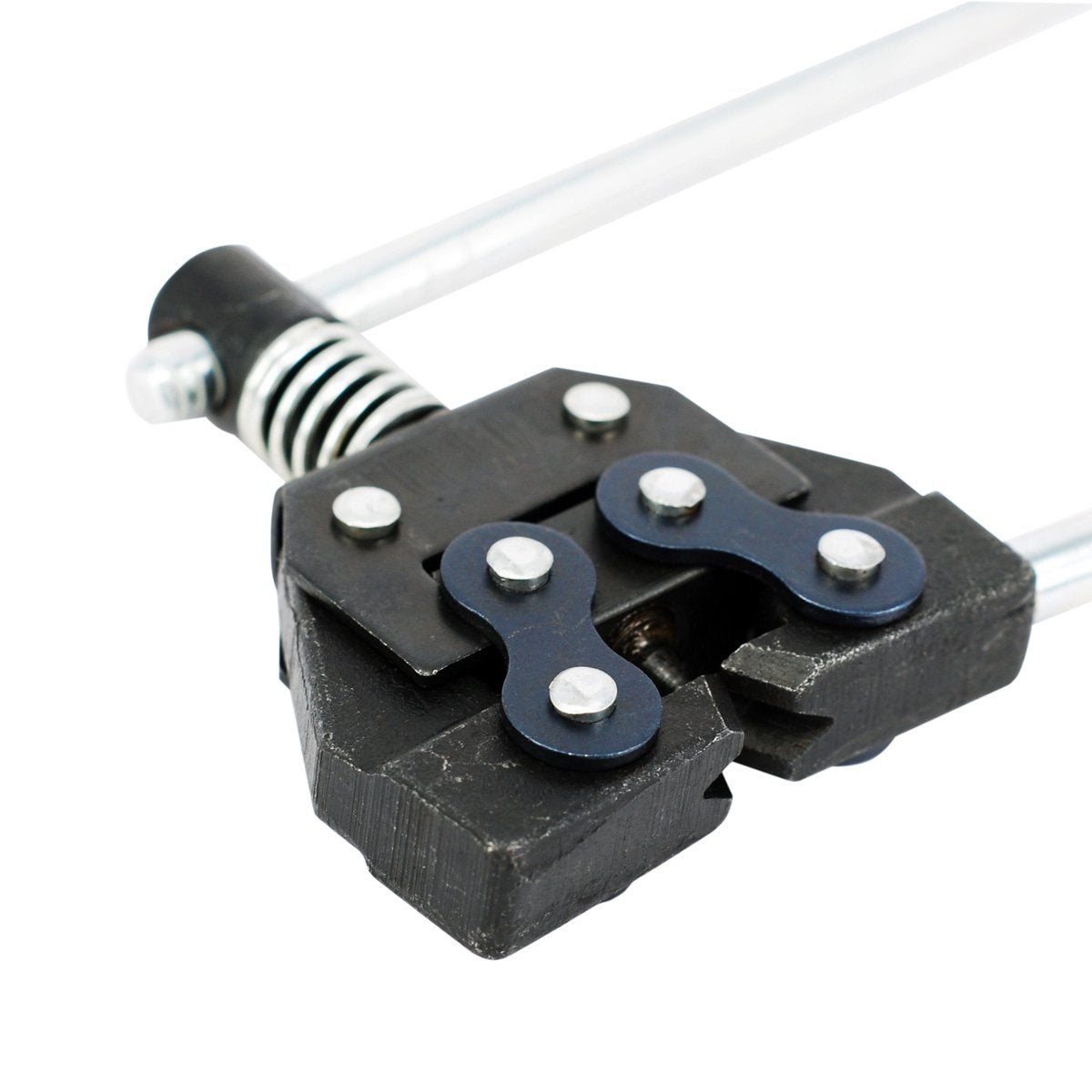

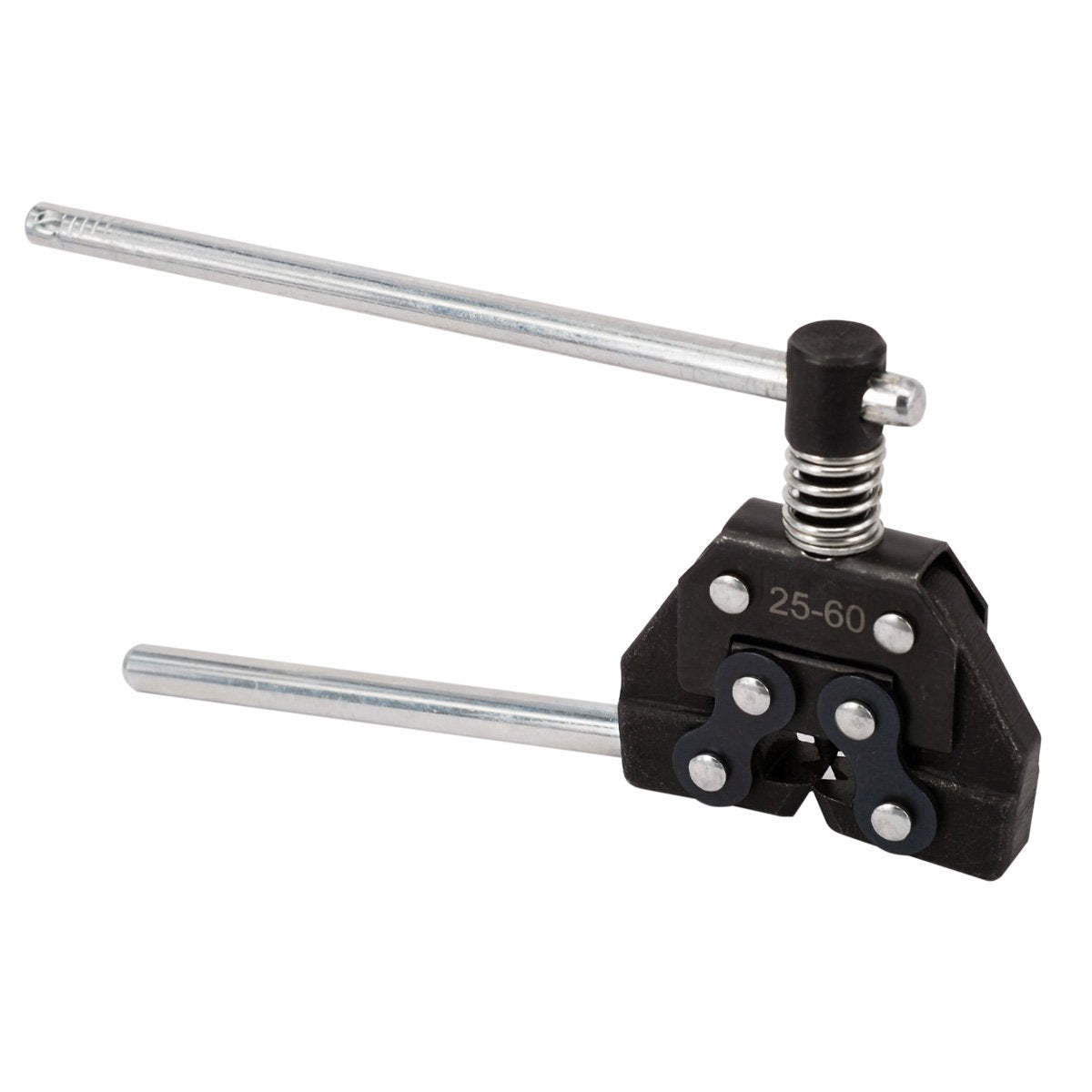

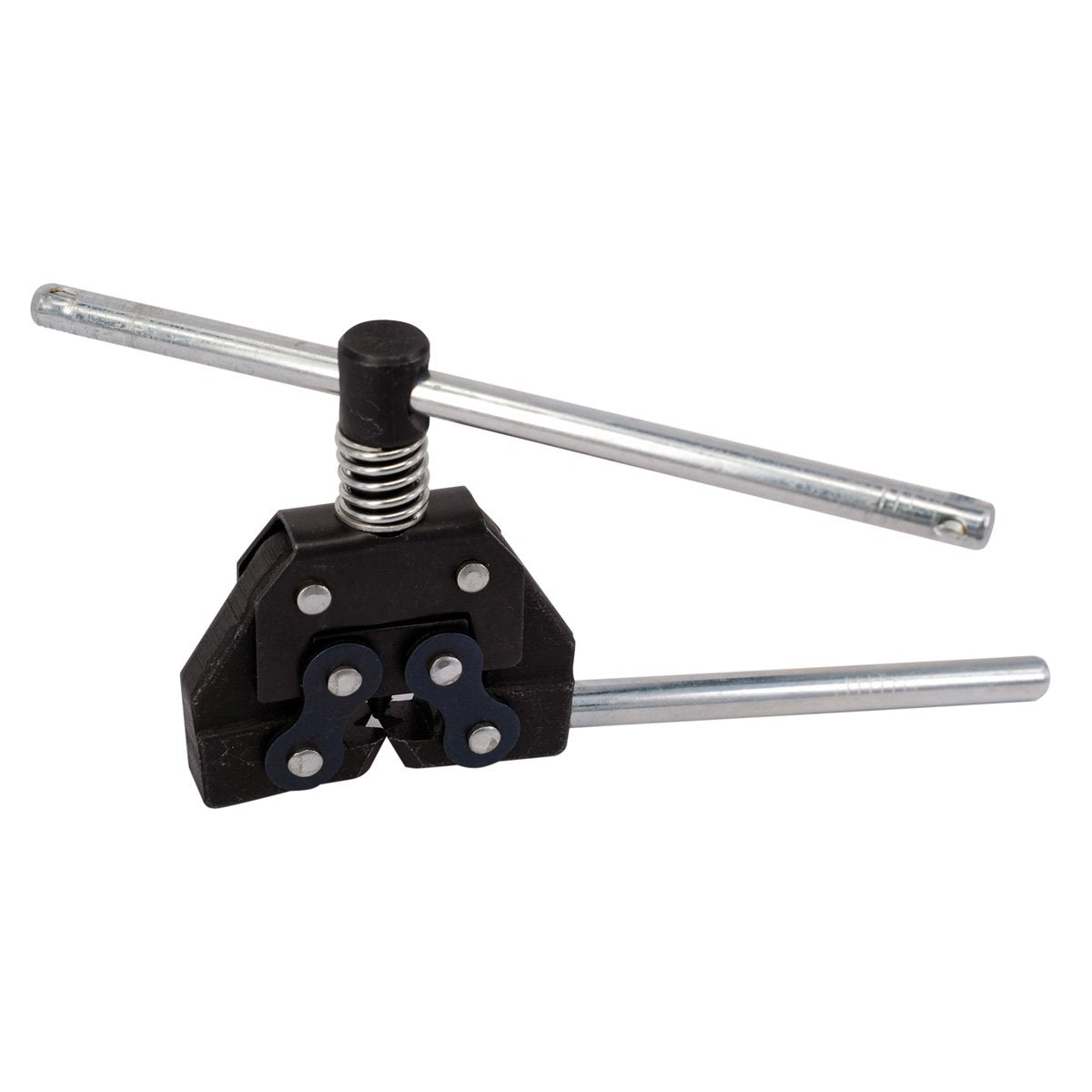

Ansoon Roller Chain Breaker Detacher Cutter Splitter Tool for # 25 35 41 40 50 60 415H 428H 520 530 Roller Chains Fit for Motorcycle Bicycle Go Kart ATV Chains Replacing

Brand: Ansoon

Features:

• Made for #25-60 Roller Chain
• For Motorcycle Bicycle Go Kart ATV Chains Replacing
• Suitable for the following Roller Chains: 25, 35, 41, 40, 50, 60, 05B, 06B, 08B, 10B, 410, 43, 65, 415, 42, 415H, 420, 423, 428, 28H, 520, 530, 25H, 40H, 50H, 60H, C2040, C2042, C2050, C2052, C2060, C2062, A2040, A2050, A2060.
• Package Content : 1 Piece Roller Chain Detacher Breaker Cutter+1 Piece Extra Niddle Pin.

model number: AS25-60

Part Number: AS25-60

Details: Roller Chain Cutter Breaker Detacher Splitter
Suitable for varied tybes of bikes, including mountain bike, road bike, folding bike, BMX etc
Suitable for the following Roller Chains: 25, 35, 41, 40, 50, 60, 05B, 06B, 08B, 10B, 410, 43, 65, 415, 42, 415H, 420, 423, 428, 28H, 520, 530, 25H, 40H, 50H, 60H, C2040, C2042, C2050, C2052, C2060, C2062, A2040, A2050, A2060.

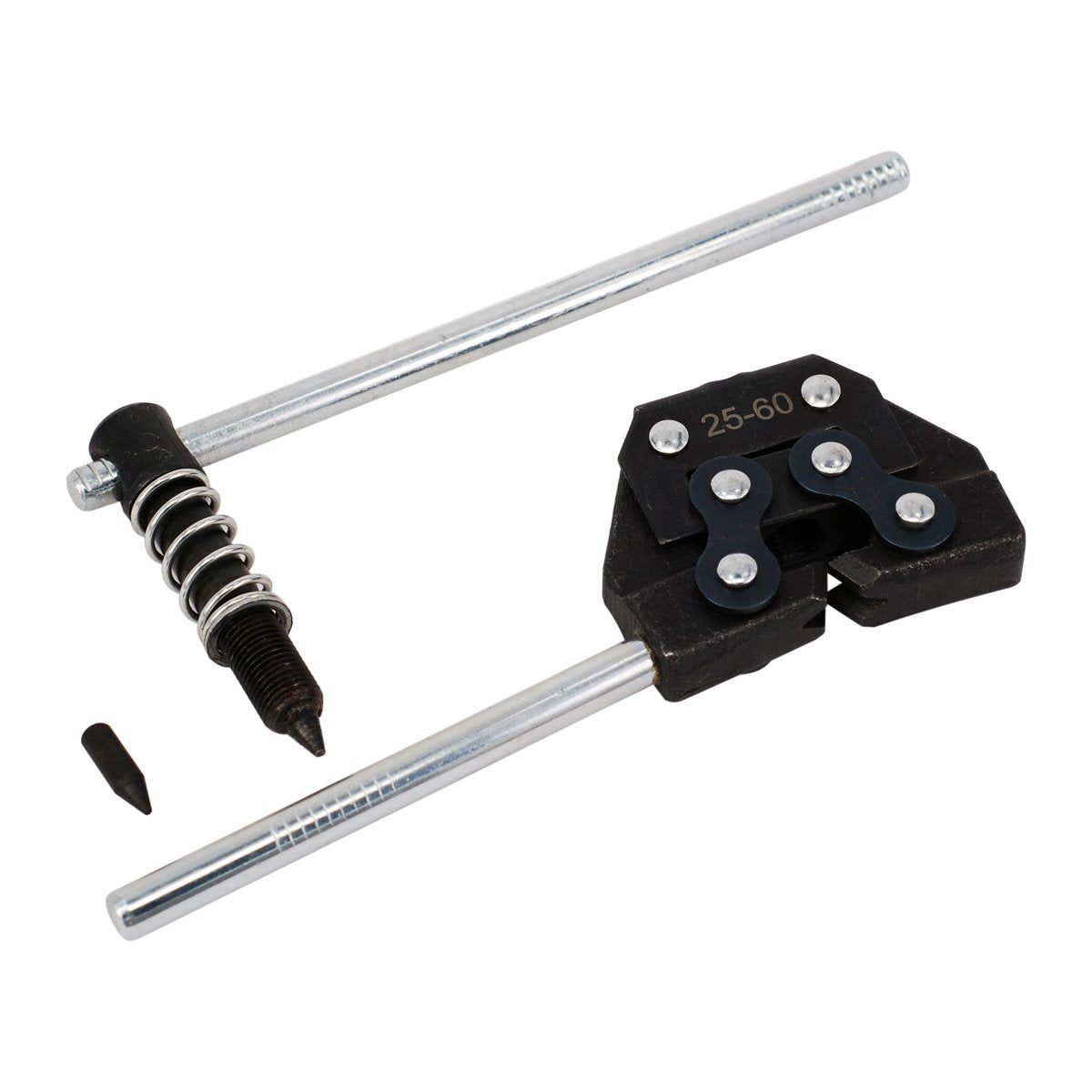

Package Content :
1 x Roller Chain Detacher Breaker Cutter
1x Extra Niddle Pin.

Disassembly sequence steps :
1: Mark the chains part what you need to move.
2:Turn the handle counterclockwise to bring the pin up from breakers jaws.
3:Place the marked pin of chain on the breaker jaws, to align the breaker pin with the chain rivet.
4:Turn the chain breaker clockwise to push the rivet out of the chain.
5: Do the same on second pin freeing link plate from from the pins.
6. And then, the node of chain pin will be disassembled. 7:Both rivets are pushed out of the chain and the part of chain will slip out of the chain.

Tips:
1: Apply pressure slowly to each rivet, suddenly applying excessive pressure to the rivet will cause the connecting rod to bend and damage the chain.
2: Some rivets may be tight and may need to be hammered by hammer

EAN: 0603097495454

Package Dimensions: 7.6 x 4.7 x 0.9 inches
