Bemonoc DC 12V 250W Gear Reduction Motor with 9 Tooth Sprocket, MY1016Z2 Brushed Motor for E Scooter, Electric Wheelchairs, Motorcycles, Massagers and Mowers

Brand: Bemonoc

Features:

• 【Precise Parameters】Rated Voltage: DC12V; DC Motor No-Load Speed: 3850rpm; DC Motor Rated Speed: 3000rpm; DC Gear Motor Actual Speed: 300 rpm; Rated Current: 26.8A; Pitch: 12.7mm (1/2"); Tooth Thickness: 3mm; Inside Diameter: 11mm; Outside Diameter: 41mm; Efficiency>78%;
• 【Motor Rotation Direction】You Can Easily Change Bcycle Generator Shaft Rotation Direction by Adjusting the Wiring Positive and Negative. Enjoy Flexibility and Adaptability for Your Specific Application Needs;
• 【Durable Gear Reduction Motor】The Sturdy Construction and Durable Materials Ensure Reliable Operation Even in Demanding Conditions. Additionally, the Motor Comes with a 410 Model Sprocket 9 Tooth for Ordinary Bicycle Chain, you can Change 410 Sprocket 13 Tooth by Yourself, 420/428 Model Sprockets are Suitable;
• 【Superior Features】Our Electric Geared Motor is Equipped with High-quality Pure Copper Wire, Premium Carbon Brushes, and Thick Wiring, To Ensure Silent Operation and Enhances Durability, Giving You a Reliable and Long-lasting Motor;
• 【Wide Application Range】This 12V 250W electric motor is not compatible with the Razor Dirt Quad, but it is perfect for other electric bicycles, mopeds, pocket bikes, electric dirt bikes, scooters, e-bikes, ATVs, and more. It is also suitable for noodle makers, agricultural machinery, sugarcane machines, chestnut machines, roasters, small lifts, and similar equipment.

model number: MY1016Z2-12V

Part Number: MY1016Z2-12V

Details: This motor is great for those wanting to make their own custom electric vehicle, whether it's a scooter, electric bicycle or something else.
This electric motor with gear reduction produces more low-end torque than your standard motor.

Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

Note on Compatibility: This motor is NOT compatible with the Razor Dirt Quad.

Specifications:

MY106Z2 250W 12V Brush Motor

No-Load Speed: 3850rpm
Rated speed: 3000rpm
Gear Ratio: 9.78:1
Actual speed: 300 rpm
Sprocket: 9 teeth sprocket 410 (use for ordinary bicycle chain)

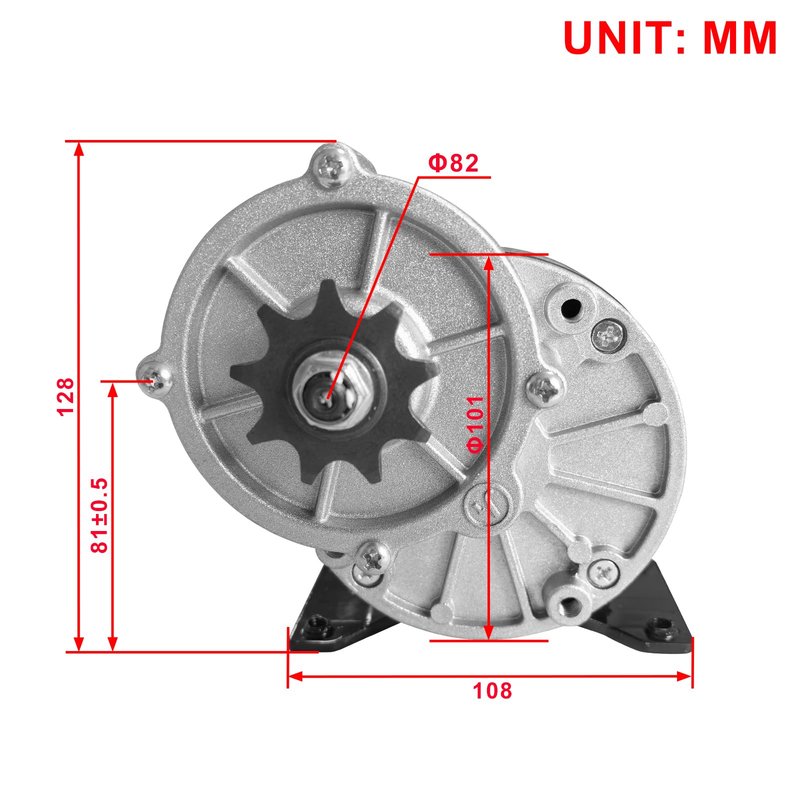

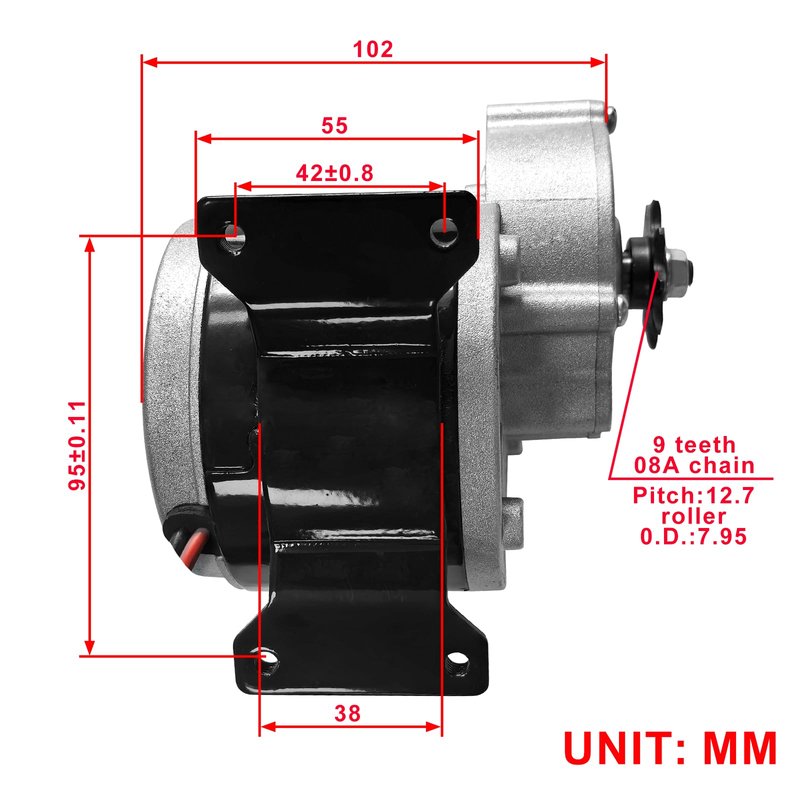

Sprocket size
Teeth: 9
Pitch: 12.7mm (1/2")
Tooth thickness: 3mm
Inside diameter: 11mm
Outside diameter: 41mm
Rated Current: 13.4 A
No-Load Current: 2.5A.

Package Dimensions: 6.5 x 6.4 x 5.7 inches
