DROK 12V to 5V Converter, DC 8-32V to 5V Buck Converter 12V DC Power Supply 3A, Voltage Regulator for RV Solar Panels

Brand: DROK

Features:

• 【Parameter】Input voltage: DC 8V-32V (12V 24V); output voltage DC 5V; output current 3A; output power 15W.

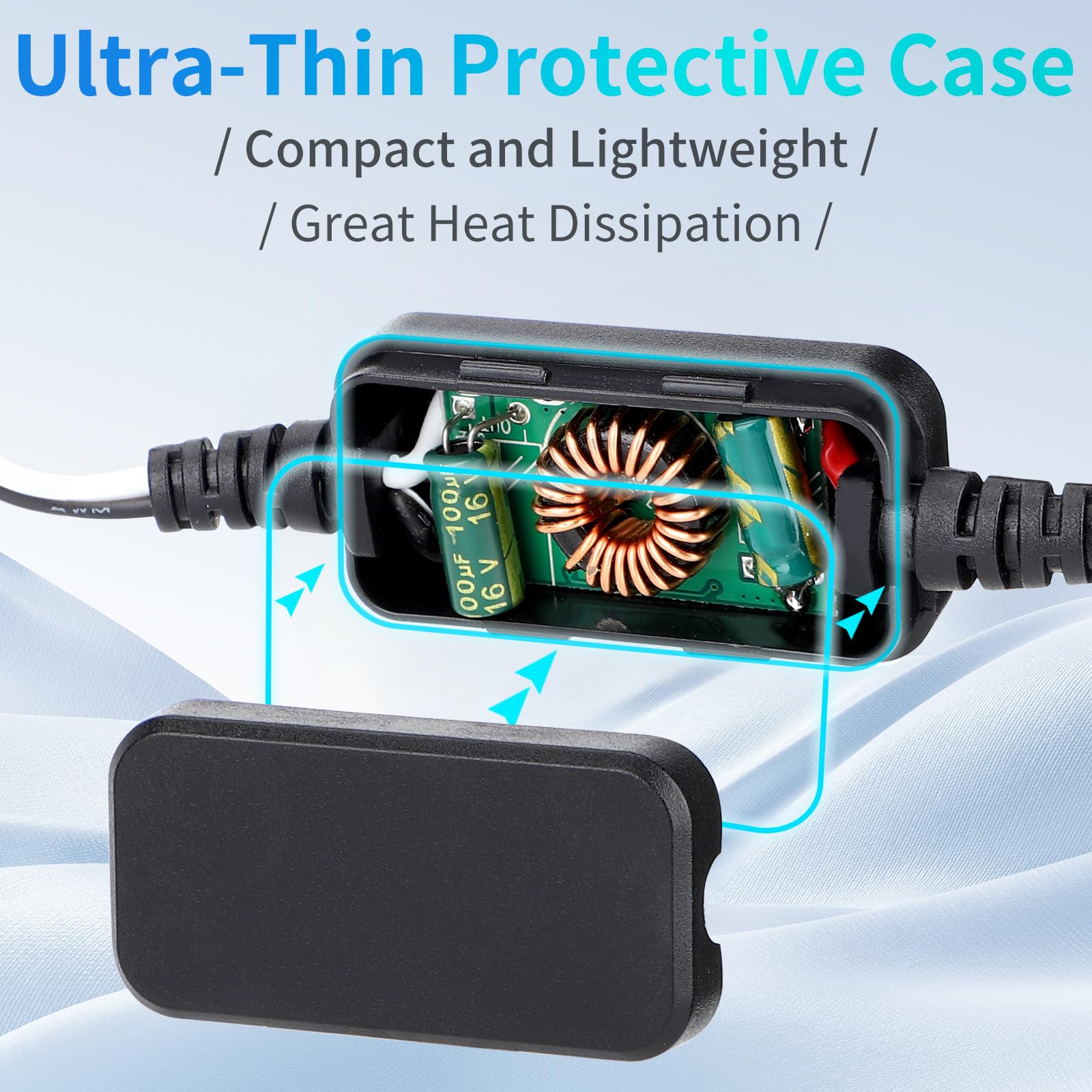

• 【Great Heat Dissipation】 With ultra-thin protective case, and intelligent chip overheating protection, the DROK buck converter is convenient to install and use.
• 【Protection】Over-current protection, overheating protection, input reverse connection protection, short-circuit protection, waterproof, dust-proof, moisture-proof, shock-proof.
• 【Efficient】 With high conversion efficiency up to 95%, this DROK buck converter is stable and safe.
• 【Multifunctional】DC step down converter can be use for any DC devices that are fit for the voltage range, such as GPS navigator for car RV, audio, LED display, motor, speaker, acoustics, electric fan, toy cars, air conditioning, solar panel, etc.

Part Number: FBA200742

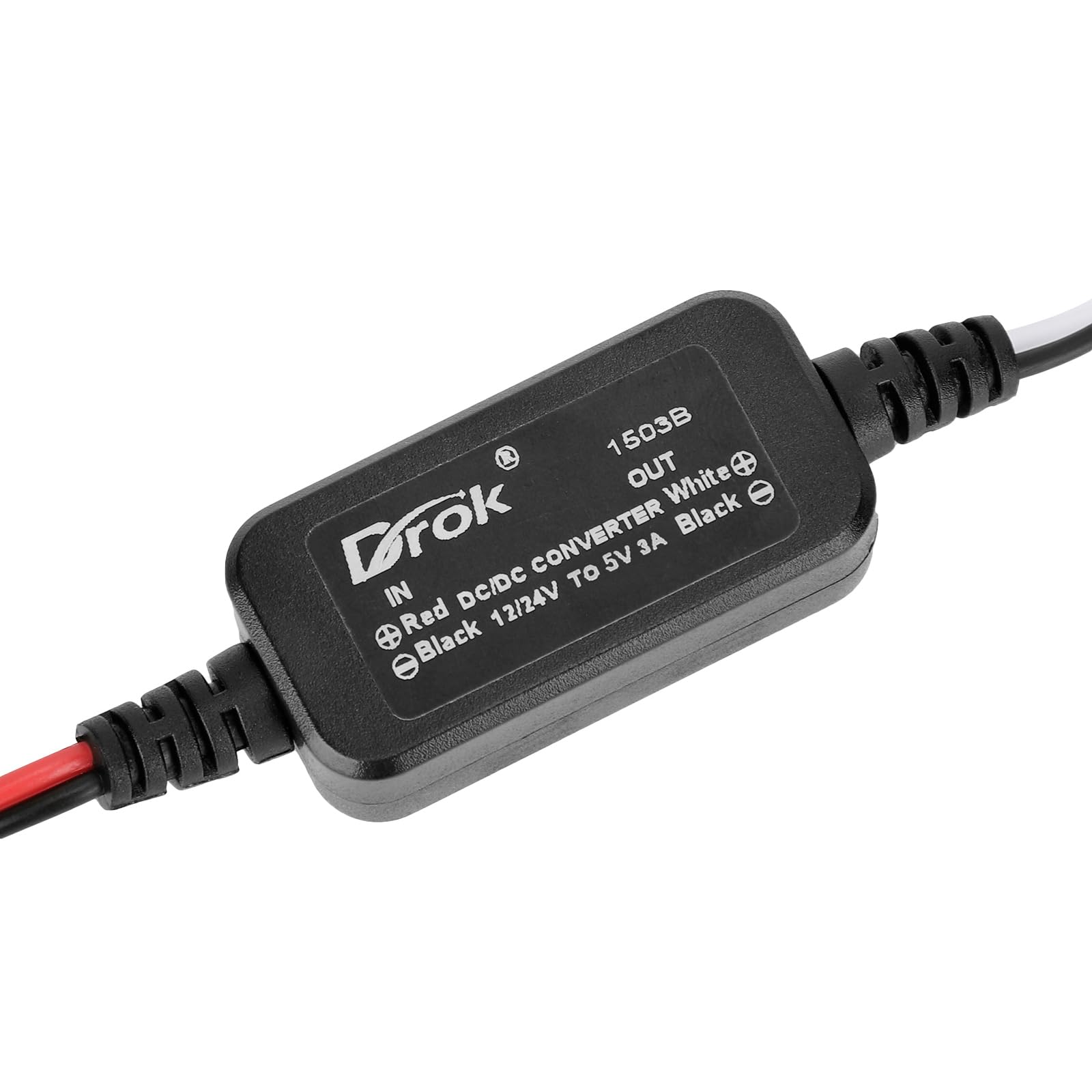

Details: DROK DC to DC Converter

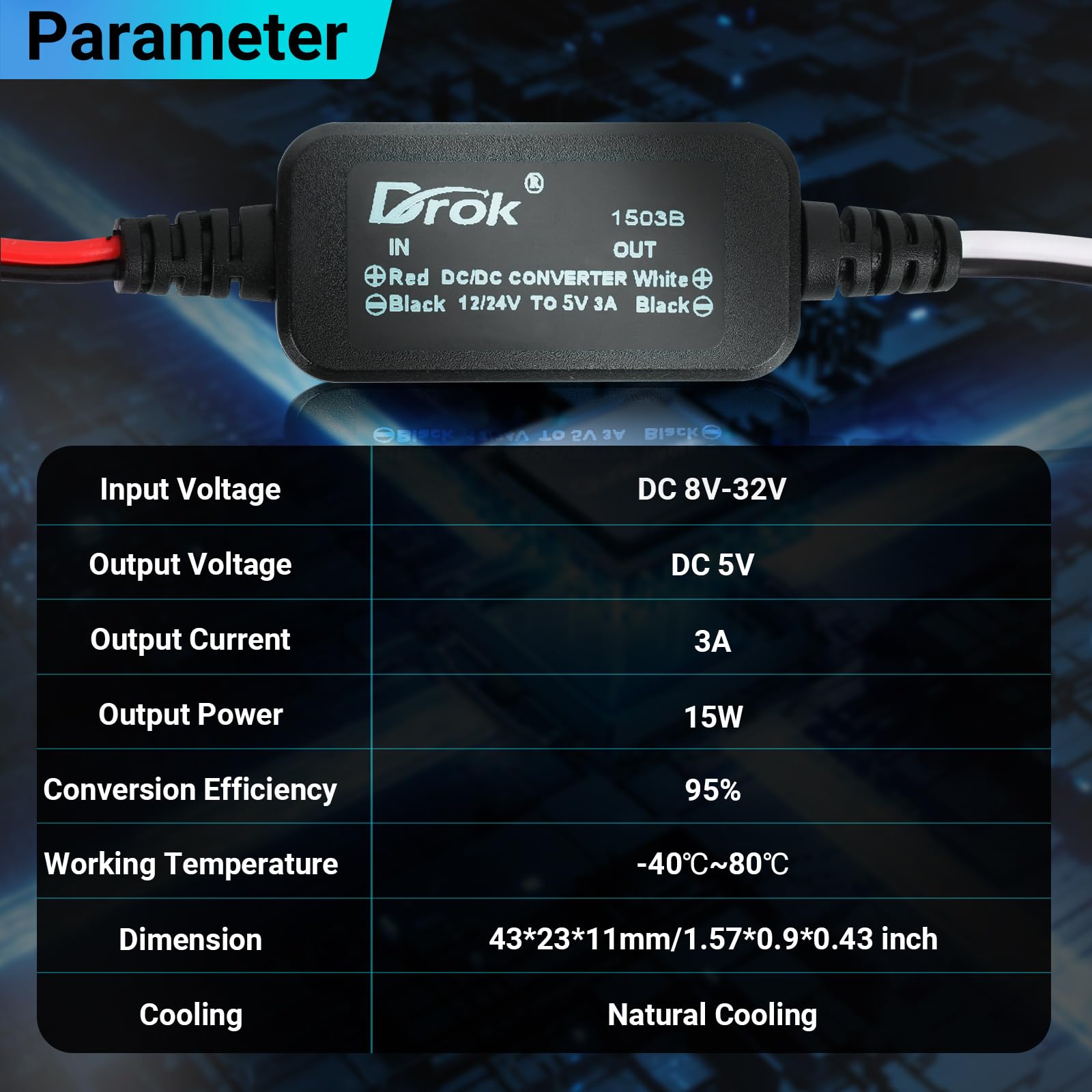

Parameter:
Input voltage: DC 12V/24V (8V-32V)
Output voltage: DC 5V
Output current: 3A
Output power: 15W
Conversion efficiency: up to 95%.
Working temperature: -40℃~80℃

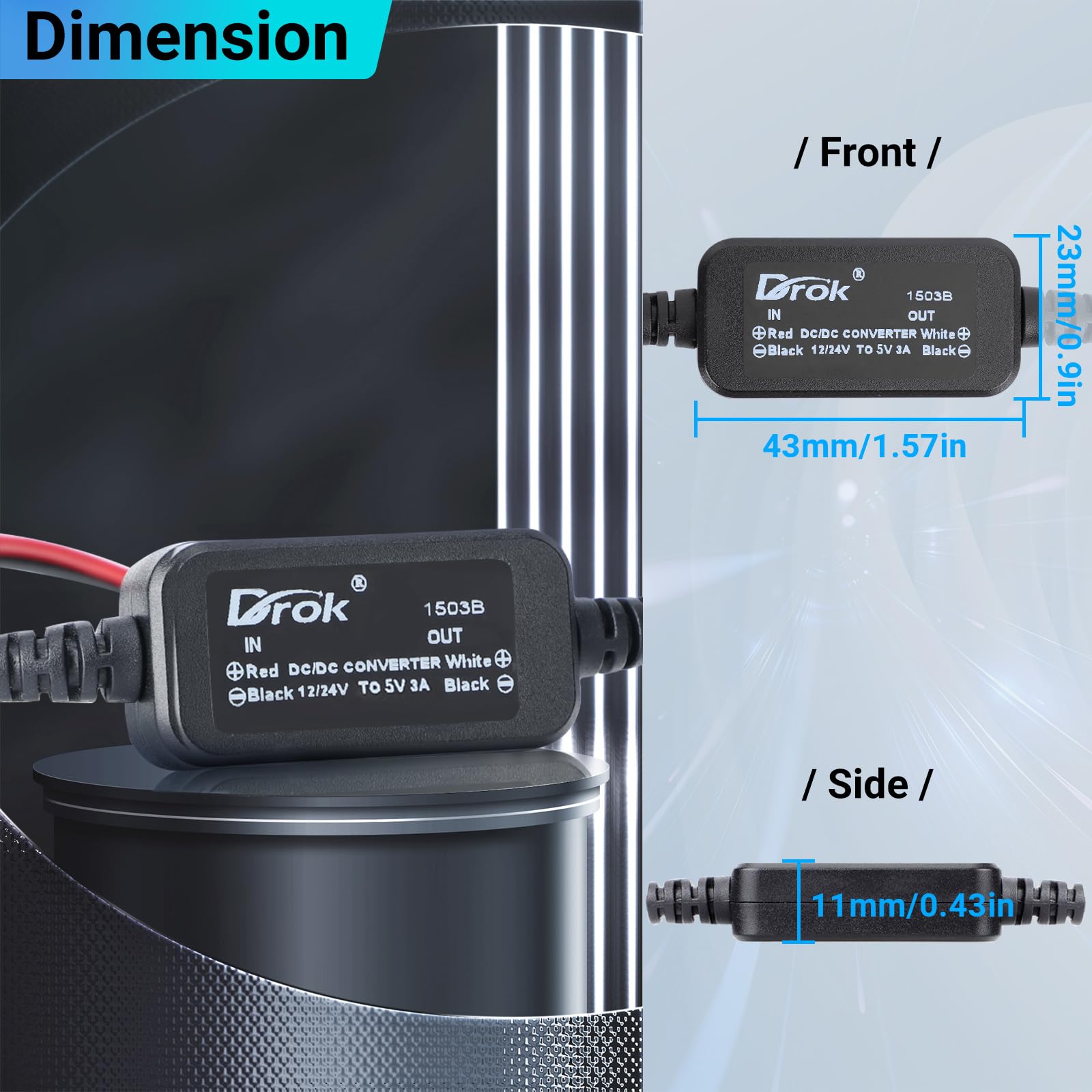

Dimension: 43*22*11mm/1.57*0.9*0.43 inch
Cooling: Natural cooling

Protection:
Over-current protection;
Over-heating protection;
Input reverse connection protection;
Short-circuit protection

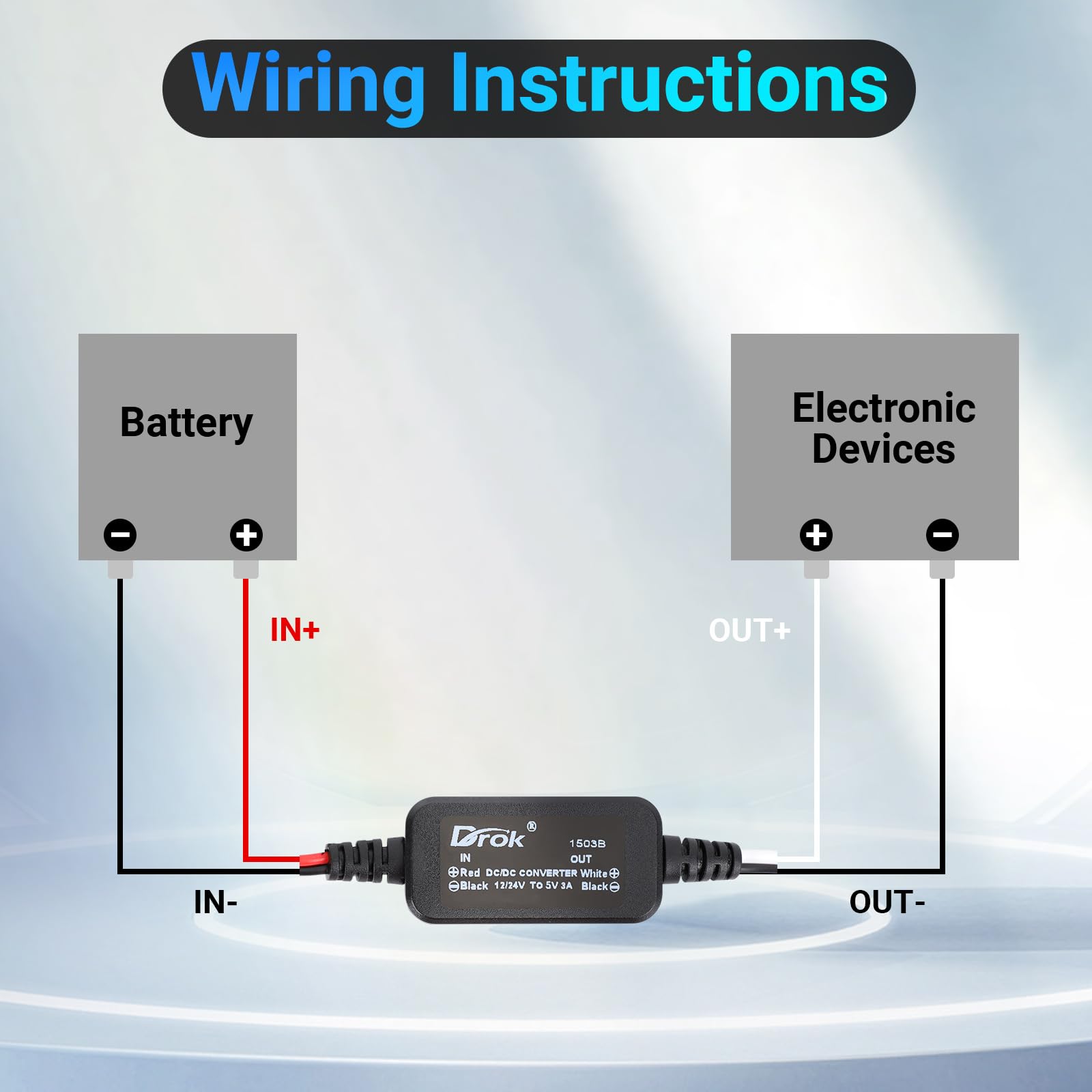

Wiring:
Input:
Red wire: input +
Black wire: input -
Output:
White wire: output +
Black wire: output -

Package Included:
1x DC Buck Converter

Package Dimensions: 5.2 x 3.1 x 0.5 inches
