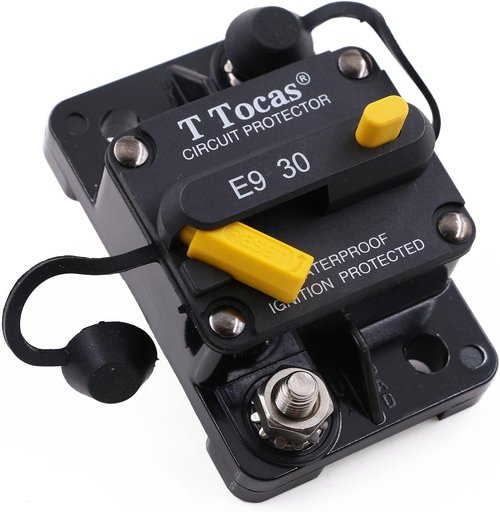

E9 30A Amp Boat Circuit Breaker - Manual Reset for Automotive, RV, Truck & Marine | Waterproof, UL-Rated 12V-72V DC

Name: E9 30A Amp Boat Circuit Breaker - Manual Reset for Automotive, RV, Truck & Marine | Waterproof, UL-Rated 12V-72V DC
Brand: Enerbold
Price: 42.95 USD
Availability: InStock

$42.95 USD

~~$75.99 USD~~ $42.95 USD

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

30 Amp Circuit Breaker 12V -72V DC
Type III , Manual Reset and Switch Button
1/4"-28 threaded studs, Extended Surface Mount
Waterproof IP67
Housing is thermalplastic UL rated 94V0;
Compact and lightweight design,Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected)
Typically used in auxiliary and accessory circuits in truck, bus', RVs,Marine battery charger and DC audio system.

Note:

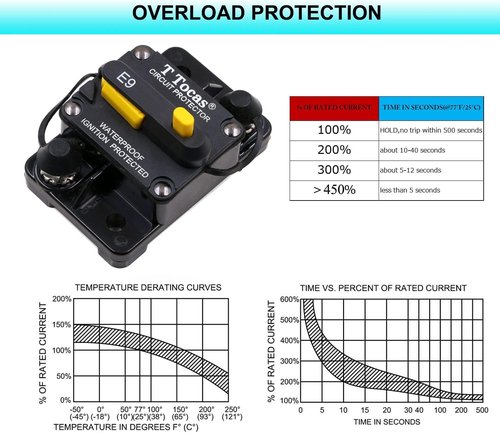

Hold 100% @ 25C° / 77F° ；must trip @ 135% rate current within 60 min, @ 200% rate current within 10~40 seconds;
Due to thermal plastic material,not metal,power tools do not torque too much when installing.Please slow down when installed nearly the postion, otherwise it's easy to fracture the product.

Voltage	12v-72Vdc(<100A); 12V-48VDC(>90A)

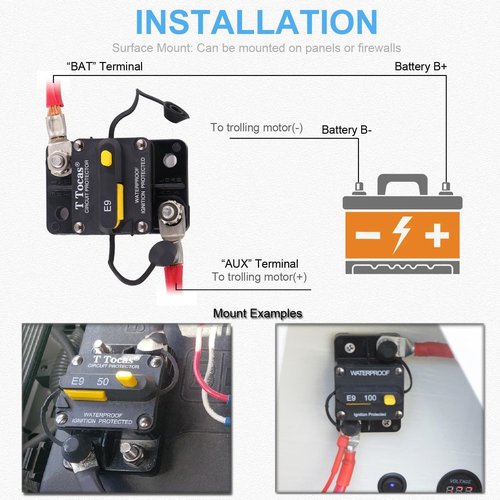

Mounting	Surface Mount

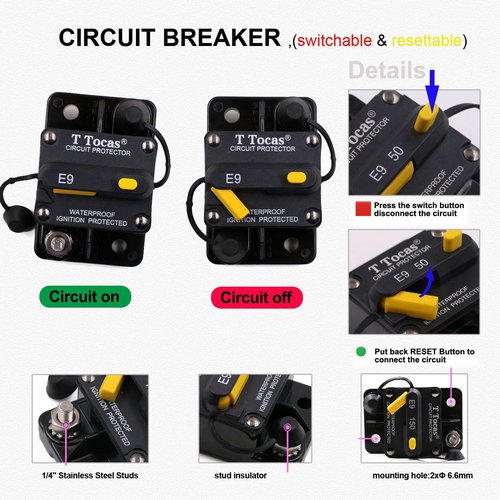

Reset Type	T3, Manual Reset and Switch Button
Operating Temperature	-32ºC (-25ºF) to 82ºC (180ºF)
Interrupt Capacity	2,500A @ 14Vdc ;1,500A @ 48Vdc ; Consult Factory
Dust and Waterproof	IP67

Termination	1/4" Stainless Steel Studs
Body	UL-rated 94V0 thermoset plastic

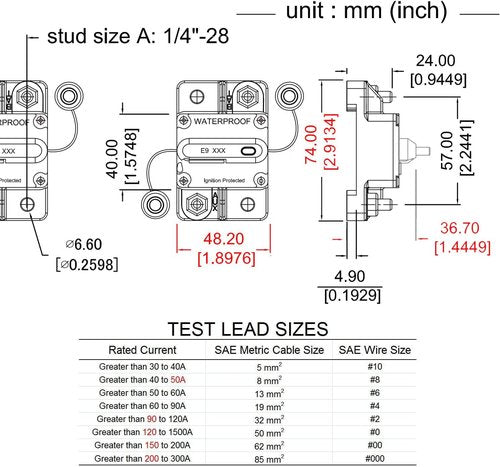

Dimension	Length: 2.913" Width: 1.900" Height: 1.5" Unit: inch
Weight	98 g
Torque rating	1/4"@100in-lb(11.3Nm), 3/8" 5/16"@150in-lb(17Nm)
