Details: Product Description

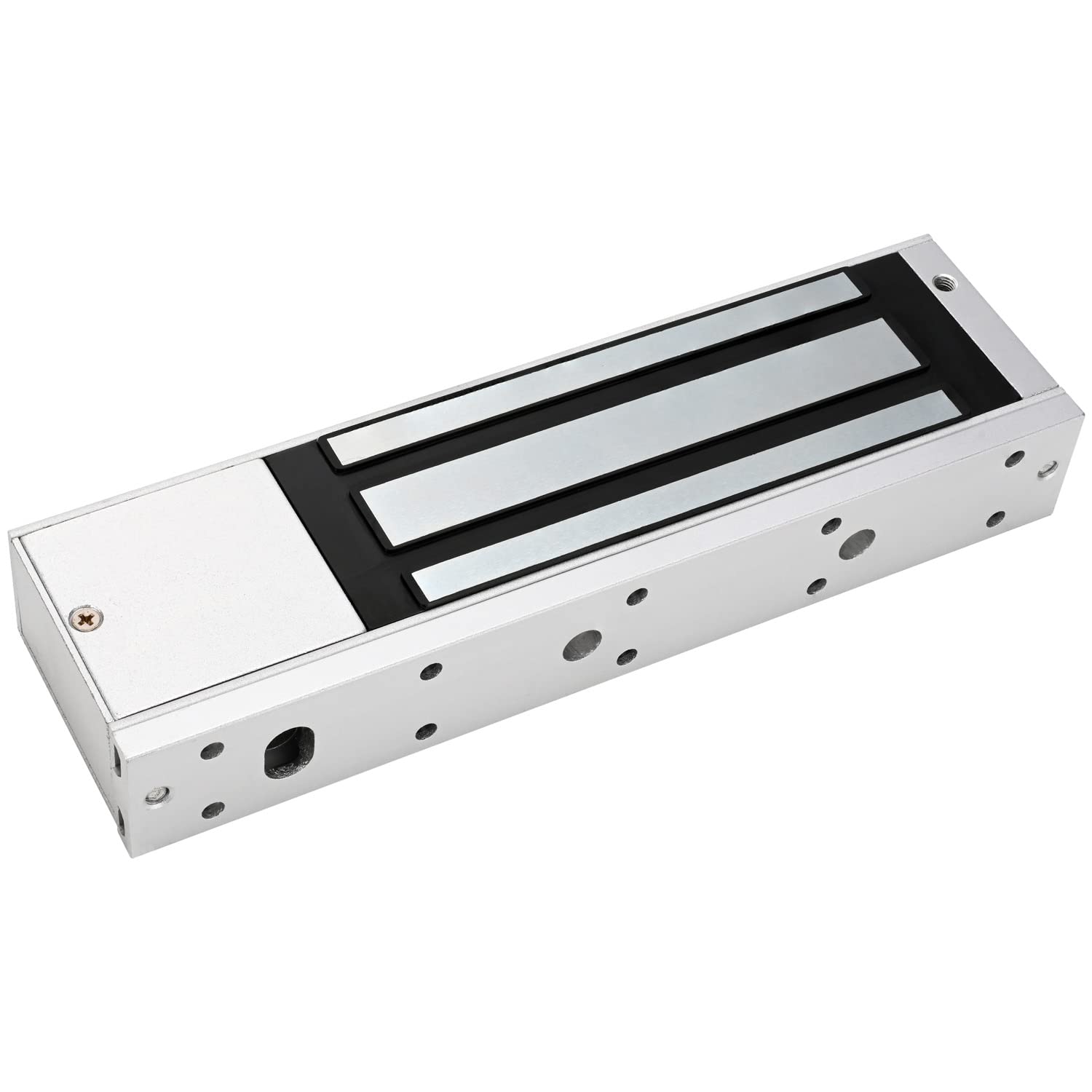

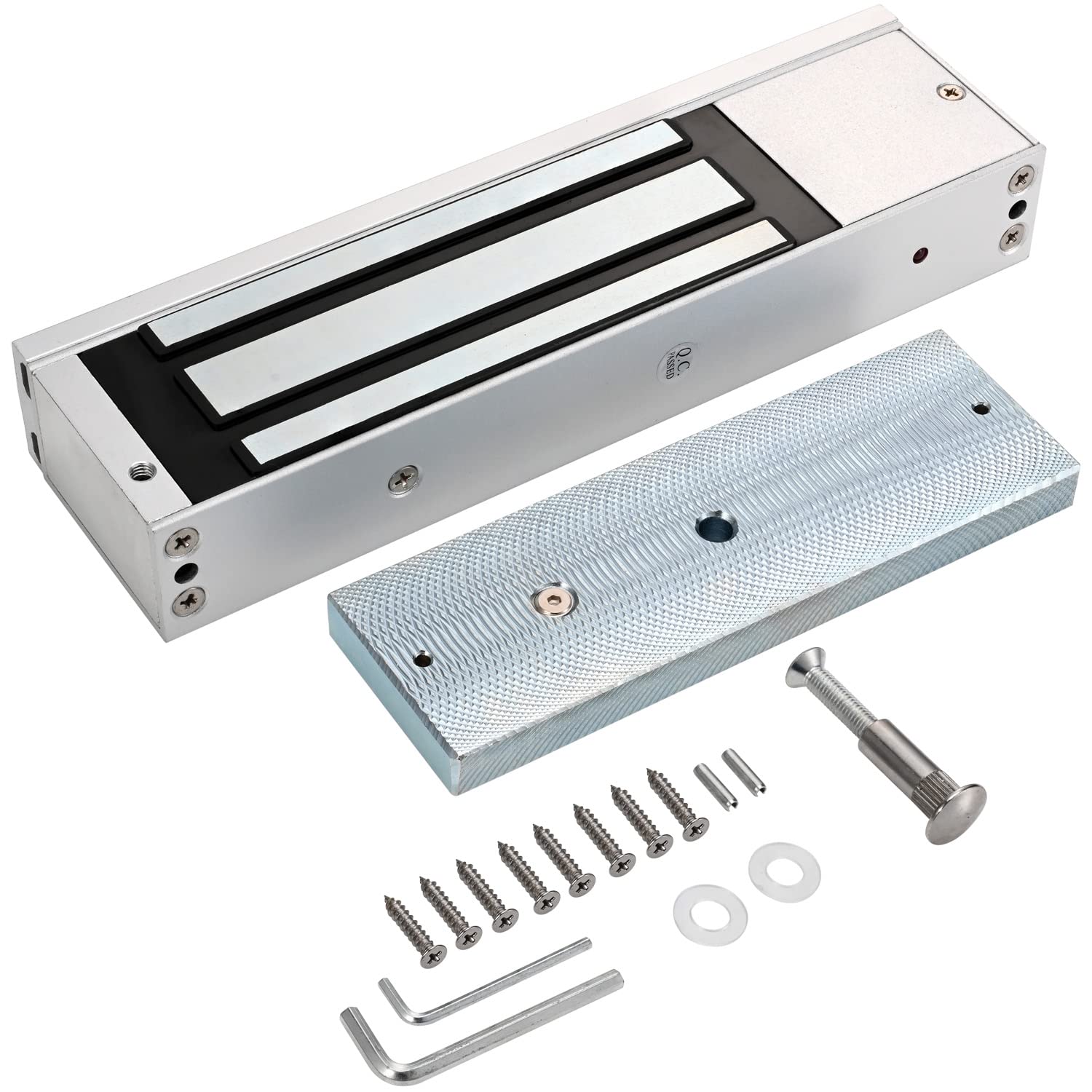

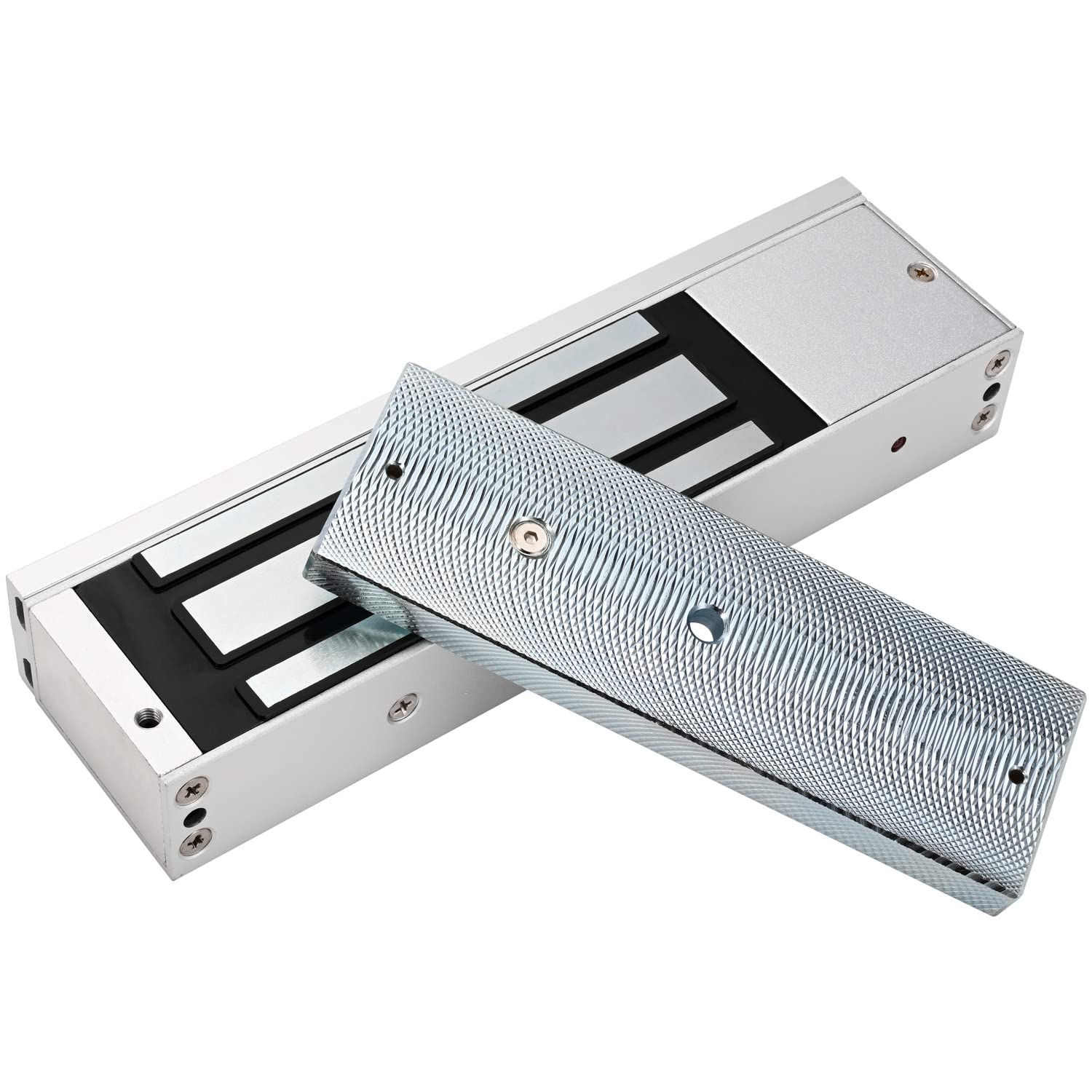

This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.

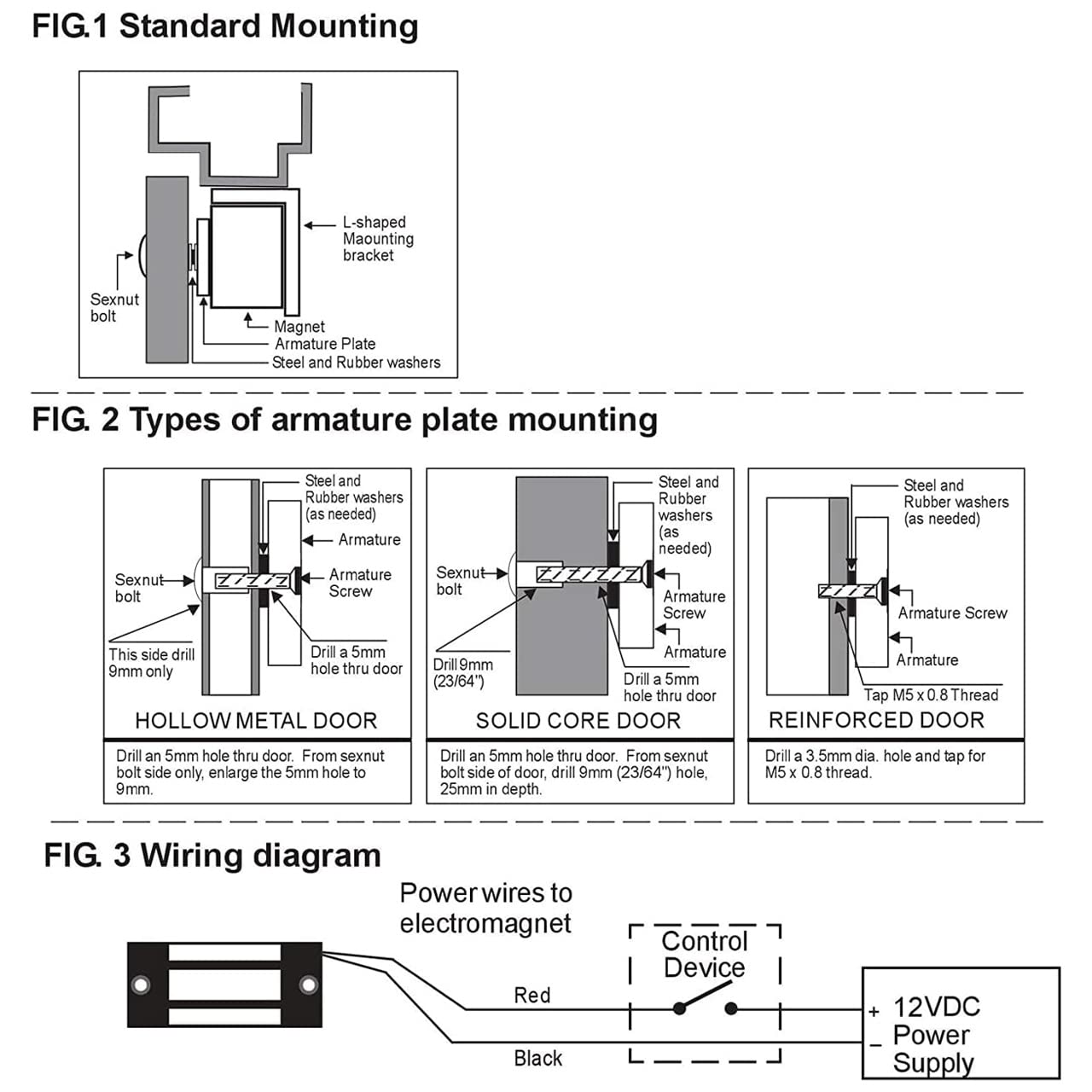

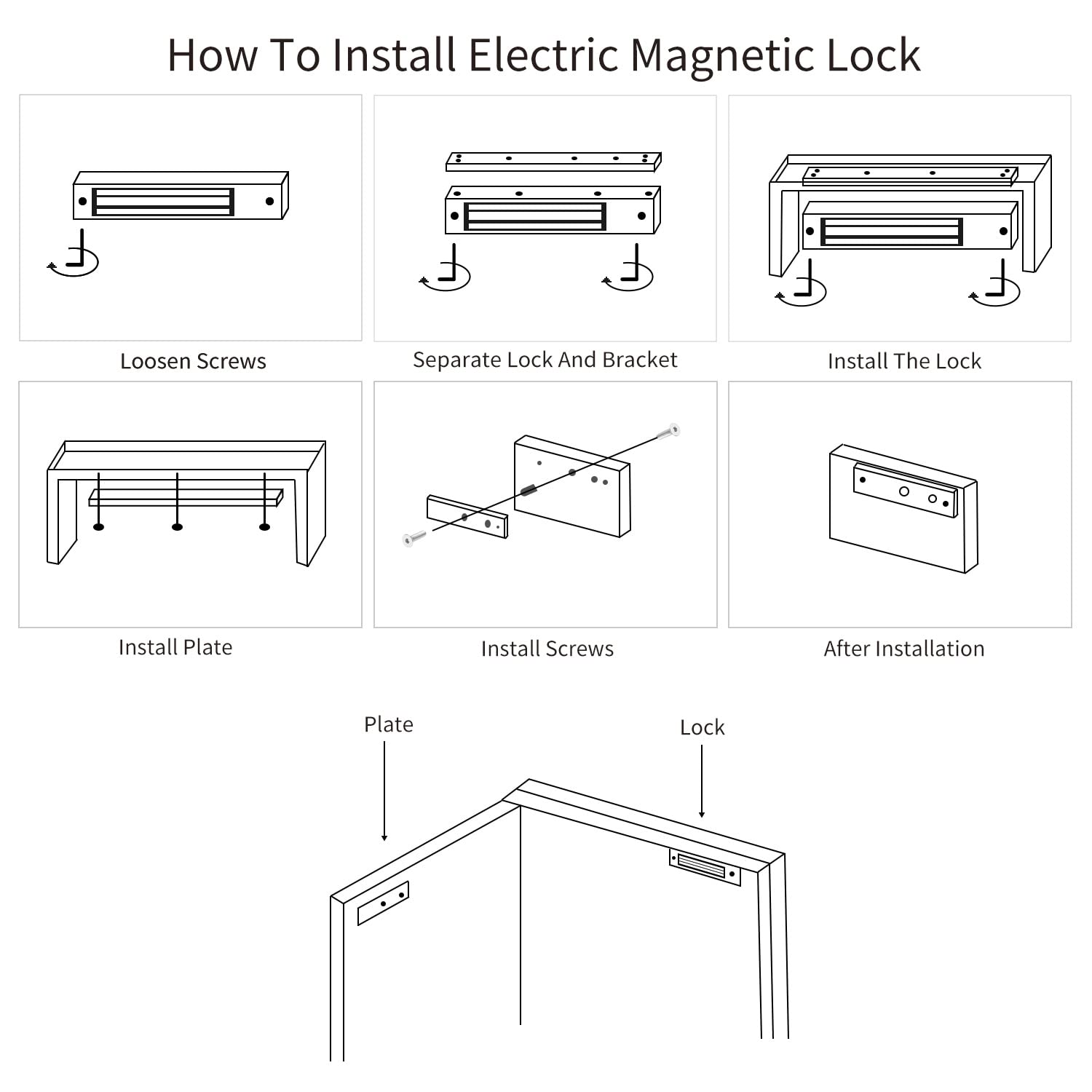

By attaching this to the door frame and the armature plate to the door, a current passing through the
electromagnet attracts the armature plate, holding the access control door lock shut.
The door will be closed when power is on; when power off, the door will open.
t is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc.
Specification:
Electromagnetic plate Material: Aluminum Alloy + Metal Plate
Armature Plate Material: Zinc
Cover Finish: Anodized aluminum
Color: Silver
Holding Force: 500kg/1200lbs
Input Voltage: DC 12V
Operating Temp: -10 ~ +55C (14-131F)
Operation Current: 480mA
Size: 10.43L x 2.95W x 1.54H (in)/ 265L x 75W x 39H (mm)
Armature plate: 7.28L x 2.36W x 0.51H (in)/ 185L x 60W x 13H (mm)
