EPLZON 4 Pin 8 mm LED Strip Connector - RGB Lights Adapter (20pcs)

Brand: EPLZON

Features:

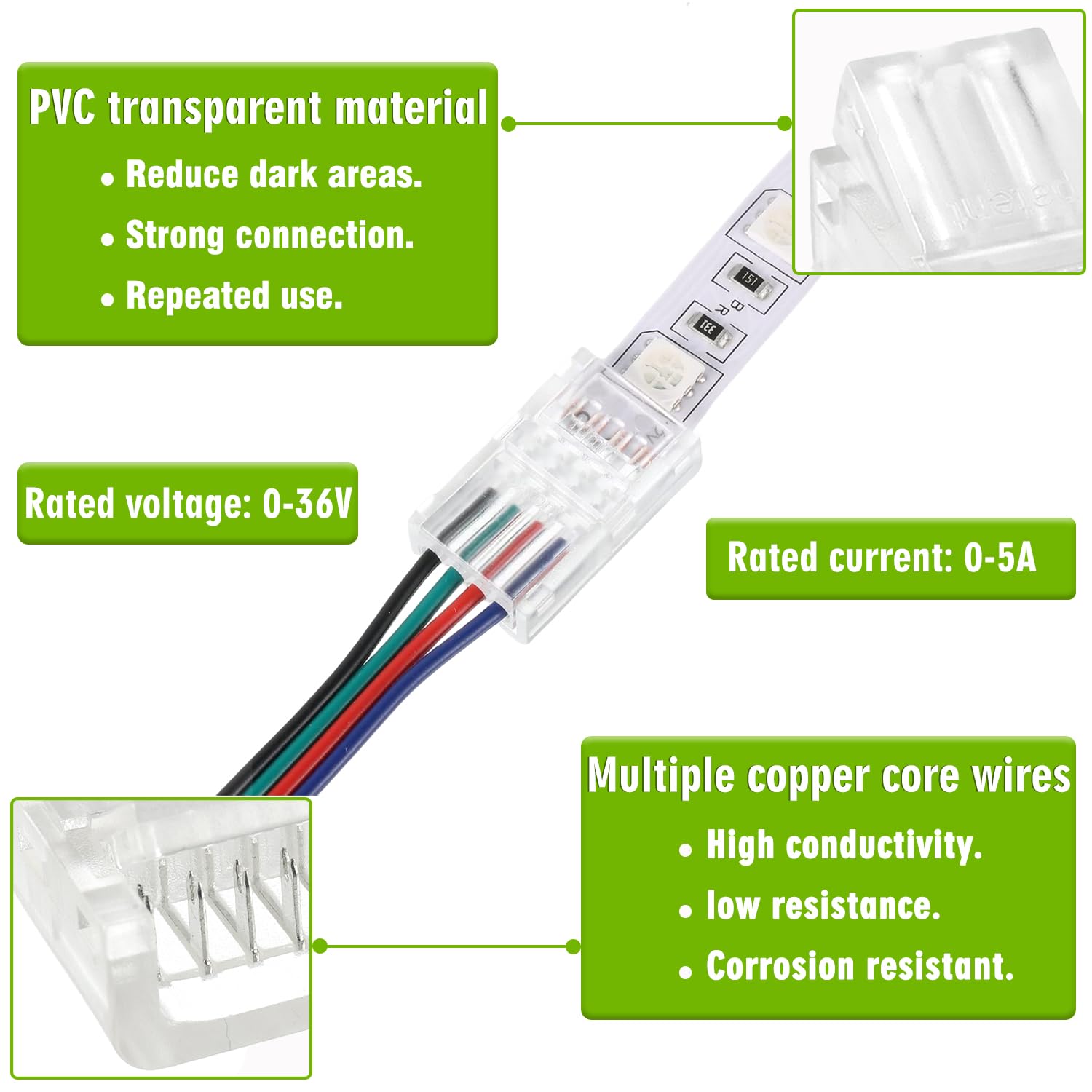

• The LED connector is made of high-quality PC material, which is sturdy, safe, not easy to break, not easy to corrode, and easy to carry in one box. It can make your light strip more outstanding in reducing dark areas
• Compatible with most LED strips: The LED strip connector is not only compatible with 5V, 12V, and 24V LED strips, but can also be used for 22 AWG 4-pin and 10mm LED strips, solid and multi-core wires, with a rated voltage of 5-24V. Please pay attention to whether the voltage is consistent with the connected wires when using it
• Easy to operate: Insert the LED light strip wire into the guide slot, check if the positive and negative poles are correct, then press the cover and align the surface pad of the light strip with the pin on the track lighting connector. When installing, make sure the LED light strip is facing downwards to make contact with the pins of the connector
• LED connector strip to wire, can be widely used in household appliances, wall lights, desks, wardrobes, TV background lights, bedside lights, bedside lights, aisle lights, etc
• The packaging includes: 20 transparent LED light strip connectors, 2 connector pry bars, and 1 screwdriver, which are practical and efficient enough to meet your connection needs

model number: EP-4PIN-8MM

Part Number: EP-4PIN-8MM

Details: EPLZON LED Strip Connector LED Light Connector Strip to Wire Quick Connector RGB Lights Adapter Connector

Solve the problem with:
LED strips are not long enough
Multi shapes of corner
Some sections do not need lights

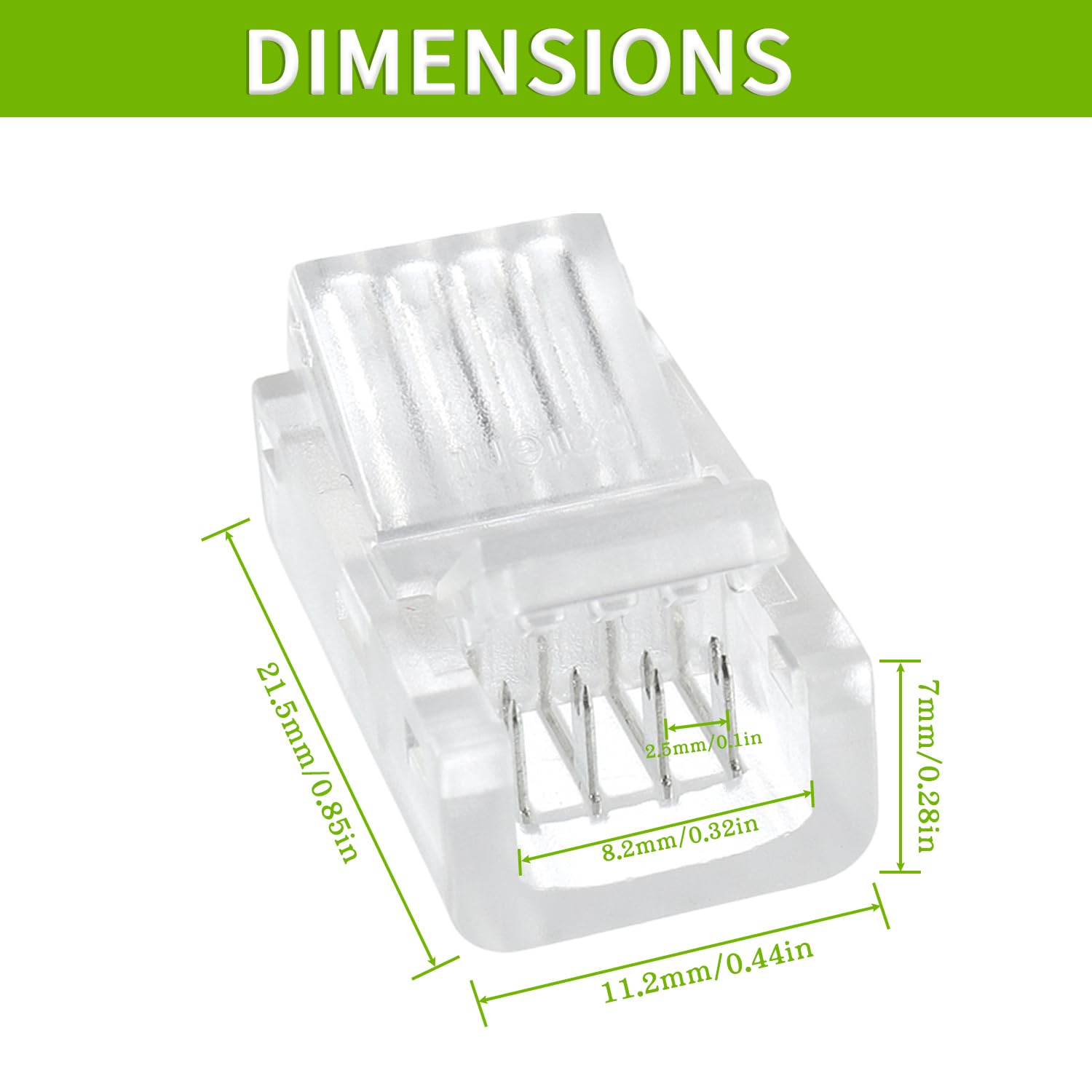

Specifications:
Voltage:DC 5-24V
Max Wattage Support:72W
Wire Gauge:22 AWG(Not suitable for 20 AWG wires)
Pin:4Pin
Workable strip:8mm
Suggest piercing the IP20 RGB light strip from the front of the light strip
Suggest piercing the IP65 waterproof light strip from the back without removing the silicone on the surface of the light strip

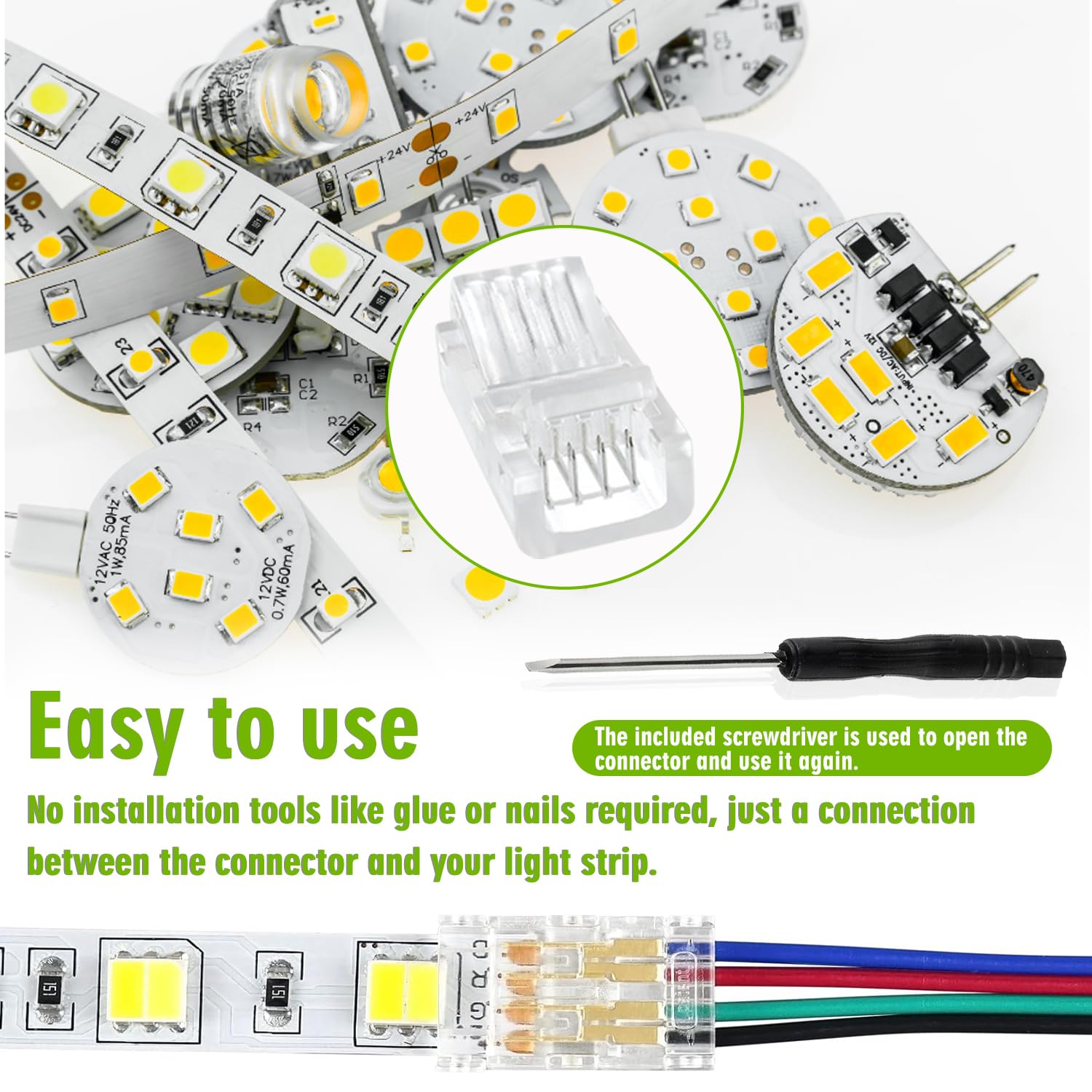

If you accidentally cover the connector, you can use a screwdriver to pry it off.

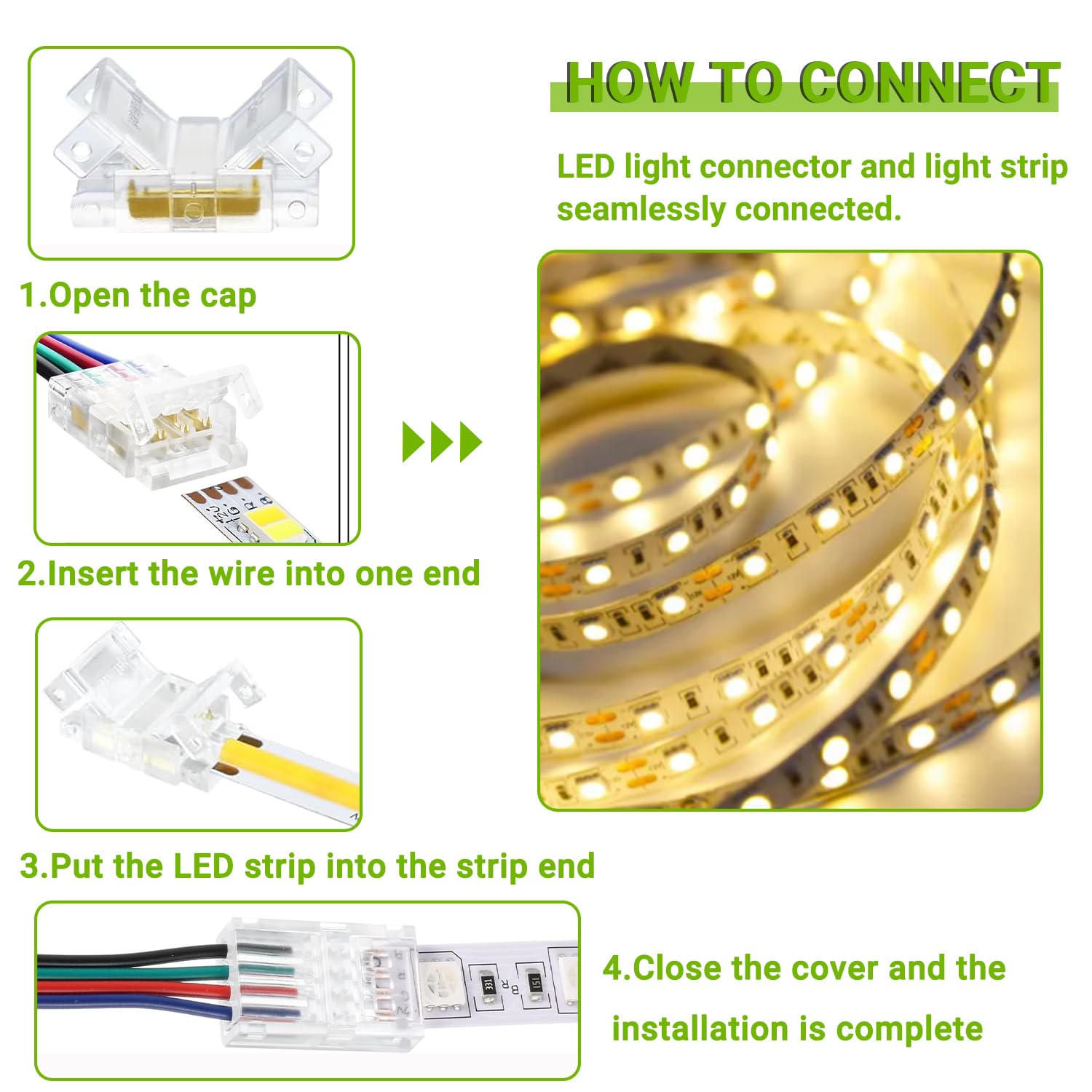

Install:
🌟Wire End Installation：
1.Cut the length of wire you need
2.Open the wire end cover with an opener
3.Insert the wires into the wire holes respectivel
4.Close the cover with a plier

🌟Strip End Installation:
1.Cut the length of light strip you need
2.Open the strip end cover with an opener
3.Insert the led strip under the copper prongs(the solder pads faces the prongs)
4.Close the cover with a plier

Versatile uses:
The LED lights connector is a compact and helpful tool, which can be applied to house, school, offices, supermarkets, stores, factories, kitchens and so on, practical and safe to use.

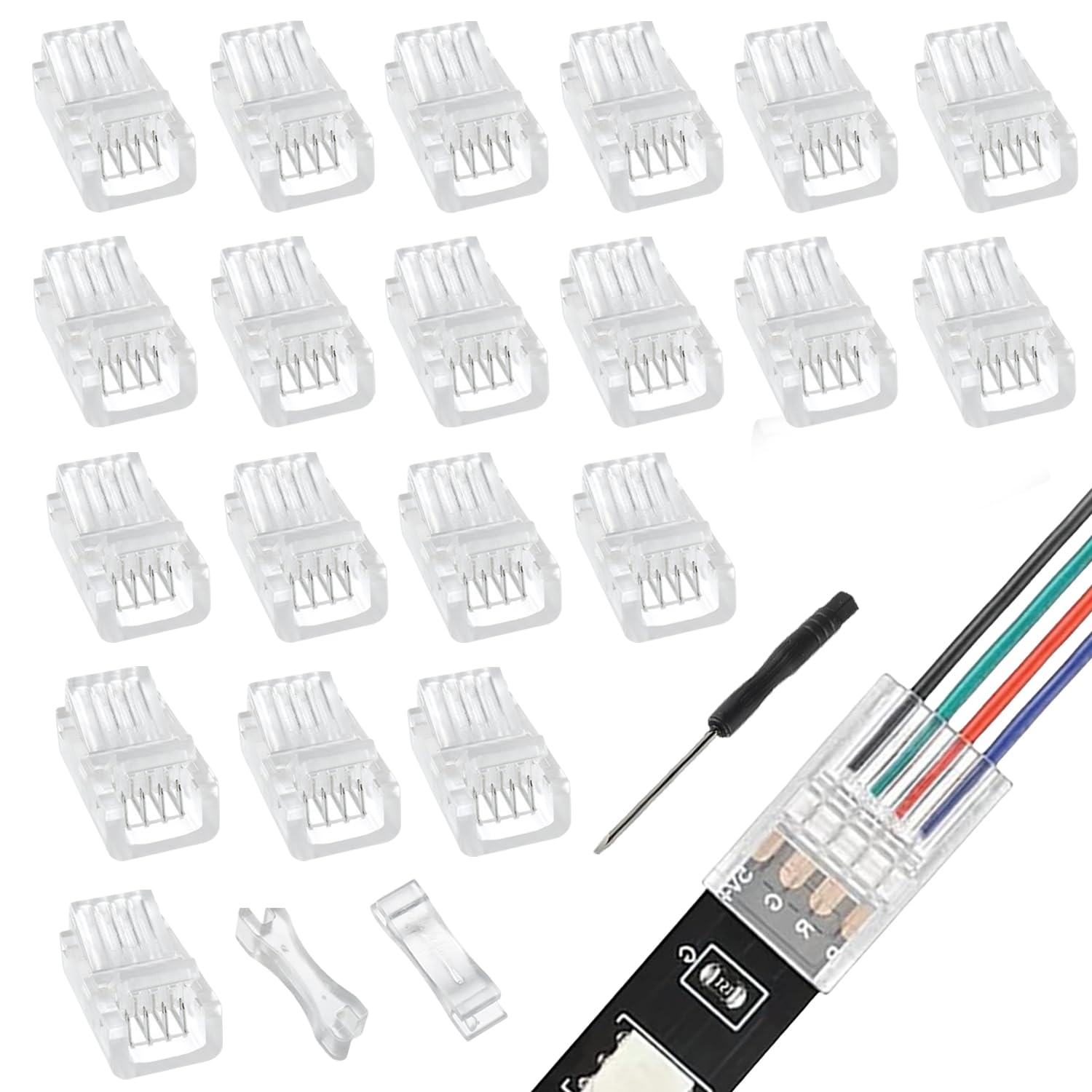

Package include:
20PCS * connectors
2PCS * connector pry bars
1PCS * screwdriver

EAN: 0780943186541

Package Dimensions: 4.7 x 2.4 x 0.6 inches
