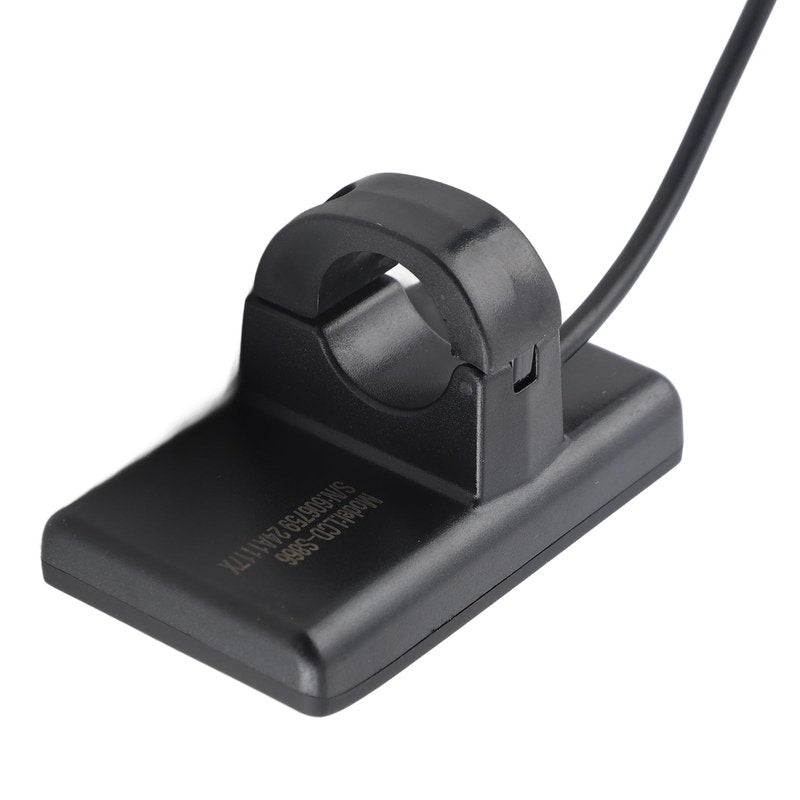

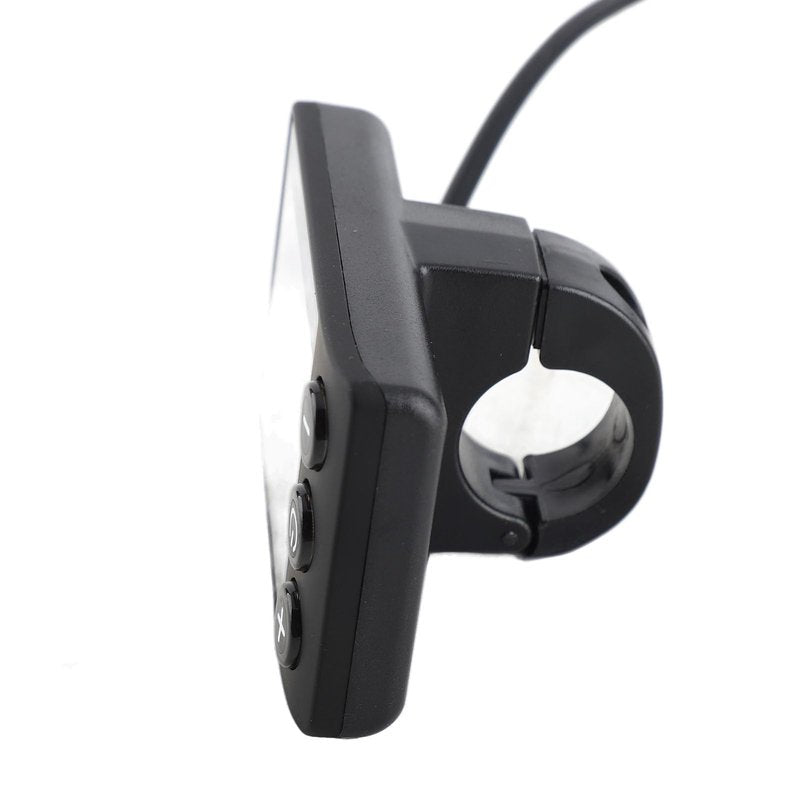

Easy installation and disassembly: The product is equipped with a 22.2mm handlebar bracket and uses an SM plug (standard plug). The entire process requires no tools, making it simple and fast.
Durable Material: Made of excellent ABS material, it has the characteristics of lightweight, waterproof, and good stability. The reinforced ABS shell can withstand tail vibration, ensuring long-term stable use in different environments
Clear and Visible Display Screen: The bike speedometer has backlight function, which can display screen information clearly even in dark environments, and the button operation is convenient and fast
Large Screen Design: Ebikes controller the large segmented LCD display screen is convenient for users to easily view data on the panel, and status information is displayed intuitively on the screen
Strong Compatibility: The bike power meter supports electric scooters with voltages of 24V, 36V, and 48V, but it should be noted that its communication protocol is the No.2 protocol and must be used in conjunction with controllers of the same protocol
model number: S866
Part Number: Fayelume8ntvdsgw46
Details: Item Type: S866 LCD Display
Material: ABS
Color: As Pictures Shown
Water Proof Grade: IP65
Communication Protocol: UART
Matching Voltage: 24V 36V 48V
Weight: Approx.138g/4.9oz
Bracket Diameter: Approx. 22.2mm/0.9in
Plug: SM Plug (Ordinary Plug)
Package List：
1 x S866 LCD Display1 x Manual
Note:
Please check whether the communication agreement is the same before purchasing. This instrument communication protocol is No. 2 communication protocol and must be used with the controller of No. 2 communication protocol.
