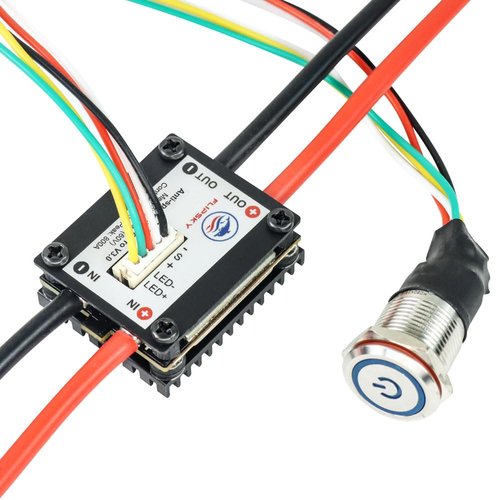

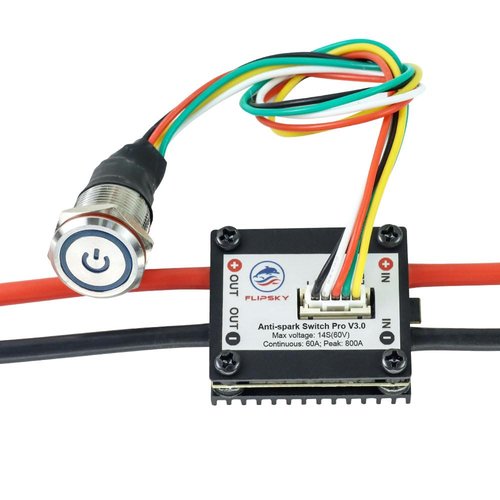

Flipsky Antispark Switch Pro with Aluminum PCB V3.0 200A for Electric Skateboard/EBike/Scooter/Robots(with Heatsink)

Brand: FLIPSKY

Color: Black

Features:

• High Side Switching : Much safer to use with multiple ESCs and other devices.
• Roll-to-start. Has 12 second blanking timer after turn off. Can still be turned on by switch during this period.
• Auto-turn-off. Will turn off automatically after 20 minutes. The output voltage must vary by at least 500mV within any three second interval to reset the turn-off timer.

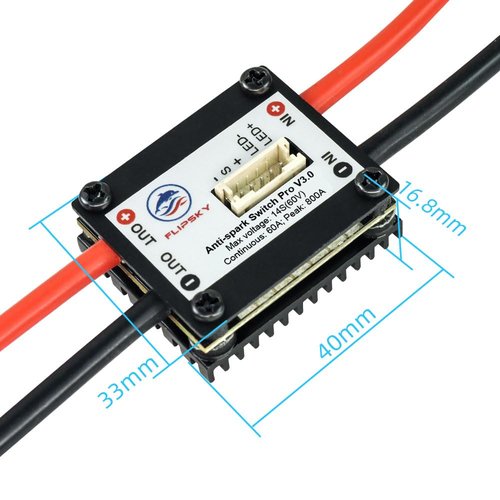

• Pro V3.0 Dimensions(with heatsink and heat shrink): 42.2mm*33mm*26.6mm(12AWG Wire)
• Voltage range:3S-14S (12V-60V) Max current:200A(It is better to increase bigger heat sink) Continuous current:100A Burst current 1200A(theoretical current)
• Top Service: If there are any question or need help , just feel free contact us , we will always here help you out within 24 hours.

model number: V75 SERIES

Part Number: Antispark Switch Pro 3.0

Details: Specs: V3.0 Mosfets:HYG015N10NS1TA LED button diameter: 16mm Voltage range:3S-14S (12V-60V) Max current:200A(It is better to increase bigger heat sink) Continuous current:100A Burst current 1200A(theoretical current) PCB thickness: 6 layer*3oz copper=18oz copper Pro V3.0 Dimensions(with heatsink and heat shrink): 42.2mm*33mm*26.6mm(12AWG Wire) With Aluminum PCB/case V3.0 Dimensions:72mm*37mm*16.2mm(8AWG Wire) Reminder : the LED button is defaultly inserted in the switch in shipping status, DO NOT power on switch without the LED button connected.Make sure the switch is off before applying power.

EAN: 0768481809290

Package Dimensions: 6.5 x 5.0 x 1.5 inches
