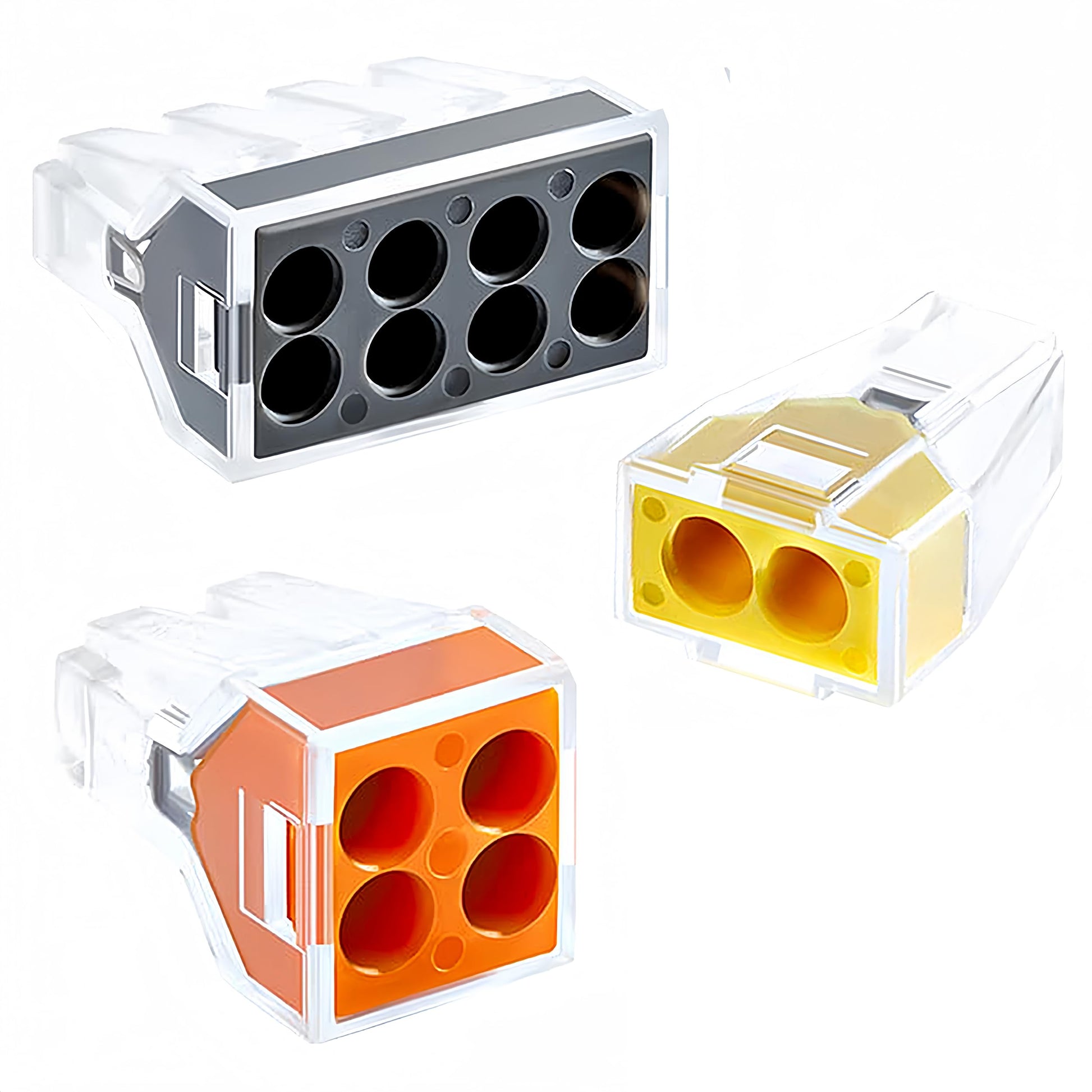

FONGLUAN 100pcs Push-in Wire Connector Splicing Terminals for Solid and Stranded Conductors with 2/4/8 Wires

Brand: FONGLUAN

Features:

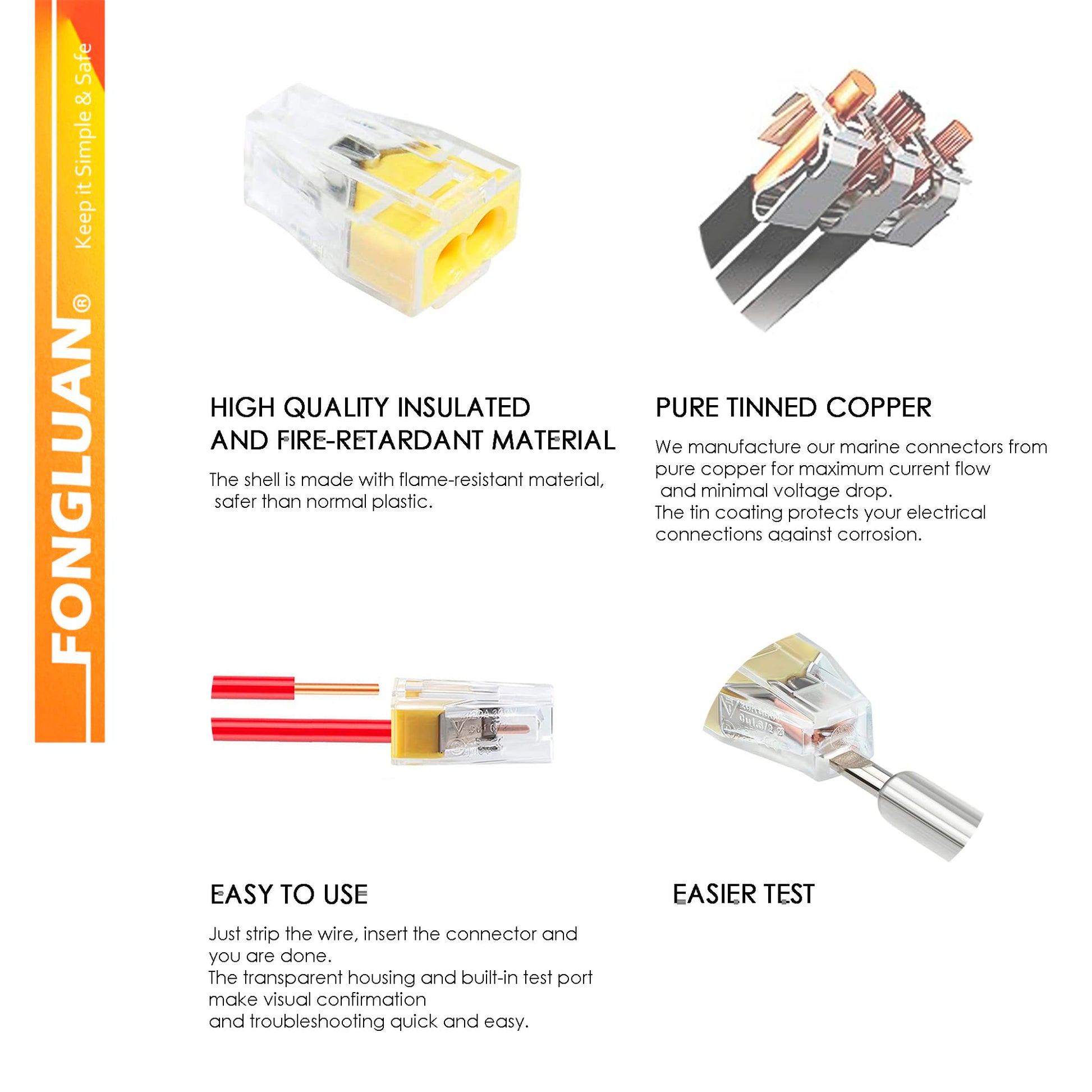

• [ PREMIUM QUALITY ] - Made of durable, flame-retardant materials, these connectors are safe, reliable, and resistant to aging and corrosion.
• [ EASY TO USE ] - The transparent housing and built-in test port make visual confirmation and troubleshooting quick and easy.
• [ SPACE-SAVING DESIGN ] - With their compact size, our push in wire connectors are perfect for applications where space is limited. They allow for efficient and organized wiring, even in tight spaces.
• [ VARIOUS APPLICATIONS ] - Ideally used in automobile, lighting, electrical control, fixtures, control circuits, signal and PA systems, home appliances, machinery and other electrical connection parts.
• [ PACKAGE INCLUDED ] - The Lever Wire Nuts Connectors kit are meet your common needs for joining 2-8 conductors (2P/50pcs , 4P/40pcs and 8P/10pcs).Simply push-in any combination of solid and stranded conductors (Wire range: 22-12 AWG Solid and 18-12 AWG Stranded).

model number: 64ca178b-212b-4c18-8f7a-73017f904095

Part Number: SJDZ100V1

Details: Push-in Wire Connector Splicing Terminals for Solid and Stranded Conductors

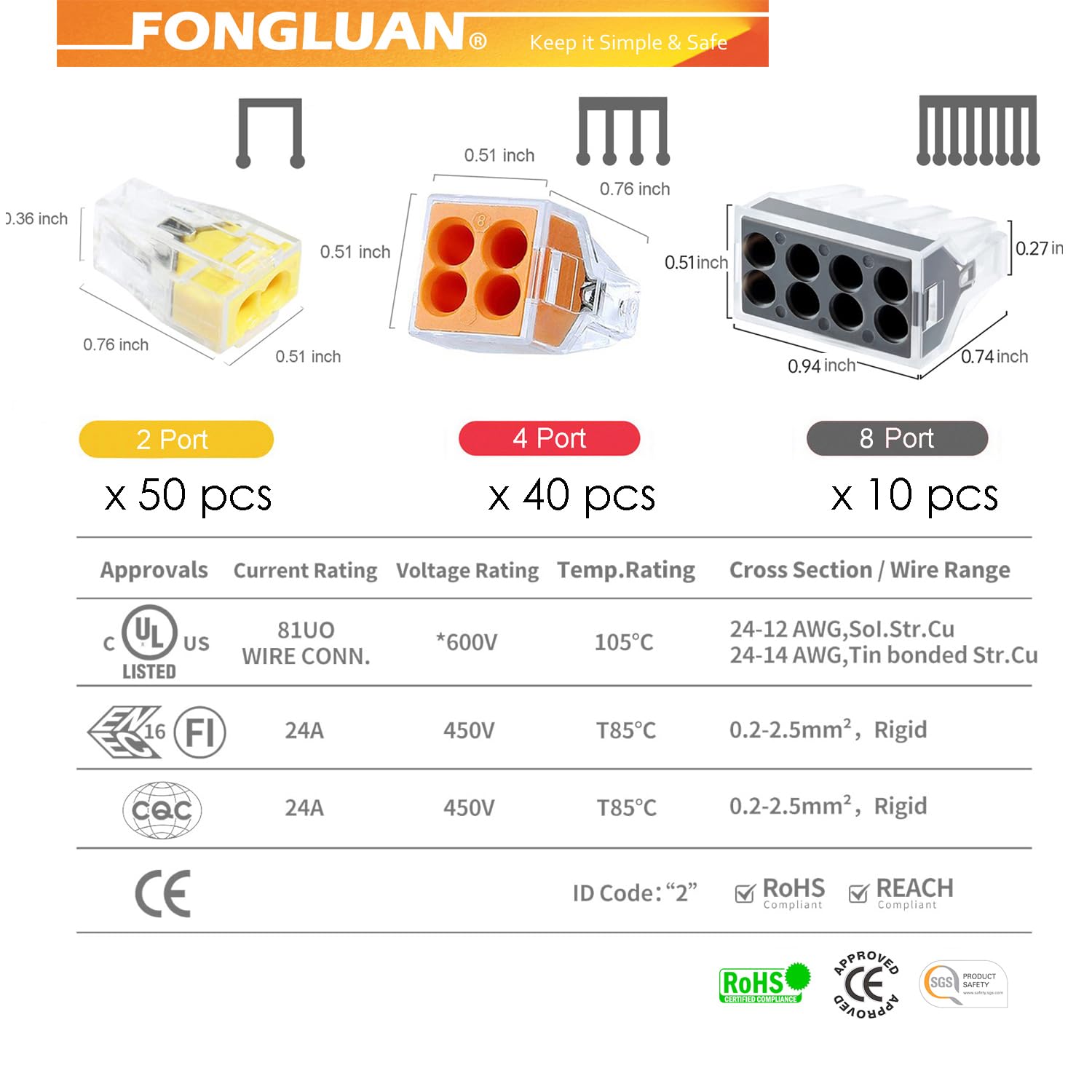

Specification
- Materials:PC,Copper,Plating Tin,Stainless Steel
- Color:Yellow,Orange,Grey
- Rated Voltage: 300V/Max.600V
- Rated Current: 32A
- Wire Range: 22-12 AWG Solid and 18-12 AWG Stranded
- Operating Temperature: -40~105°C

Features
- High-quality:ISO9001:2008/CE/SGS/RoHS/CAS strictly and According to UL486 requirements
- Fully insulated structure design, safer when used
- Accept a combination of solid and stranded wires for single and multiple applications
- Stainless steel inserts restrict pull-out
-Visual verification of connection
- Flame Retardant

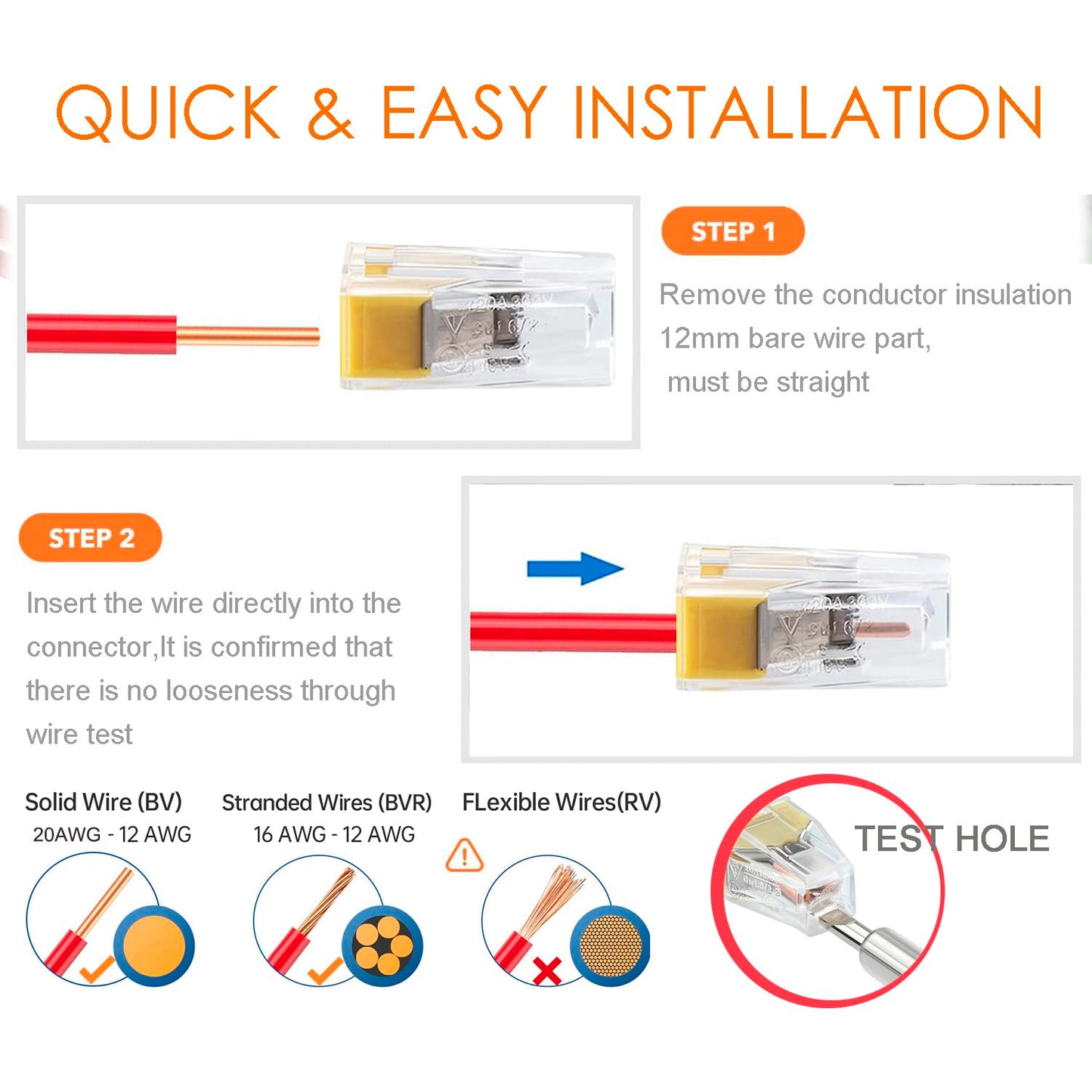

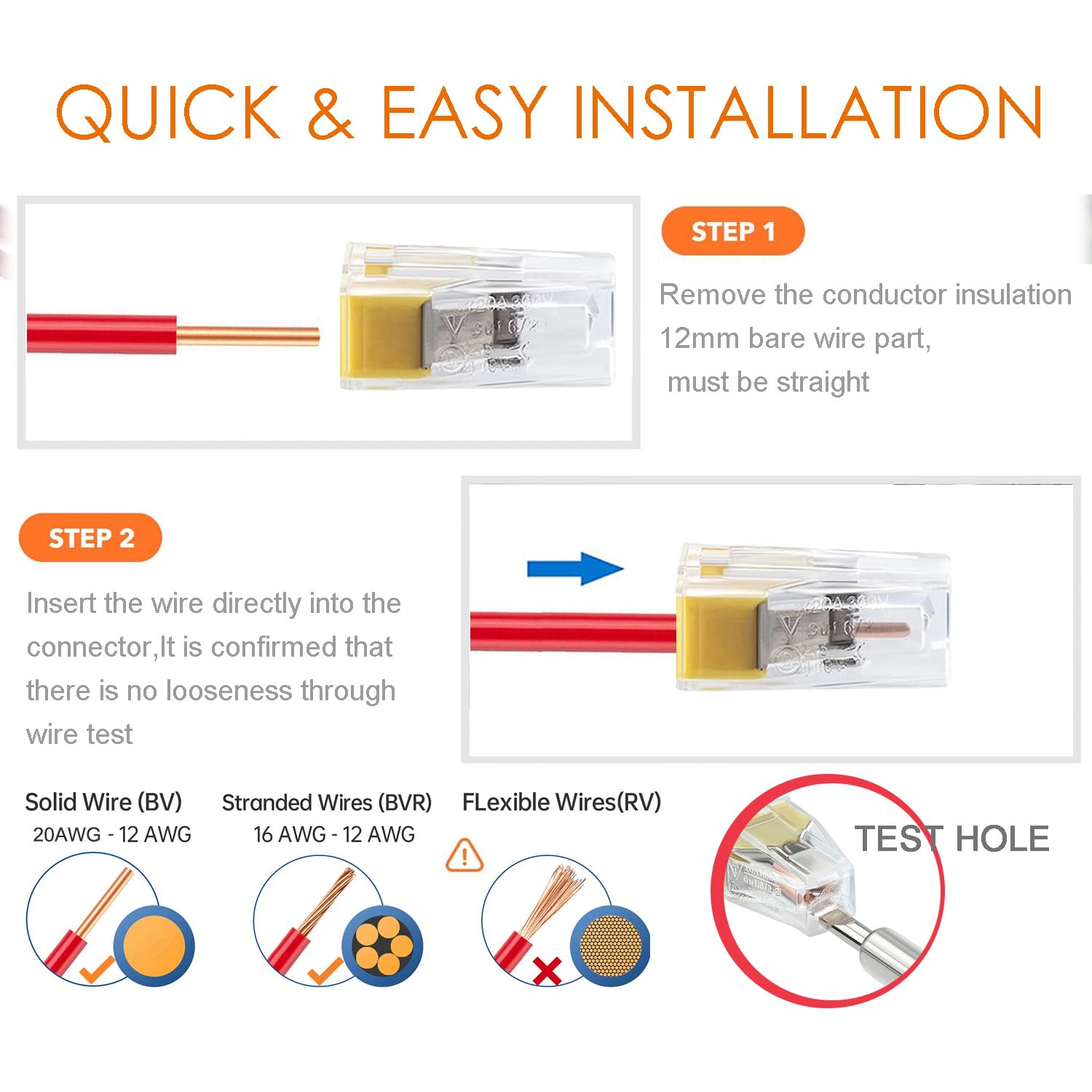

- Pretty easy to use( just push the wires into the ports).
- Good electrical insulation
- Corrosion resistance

Package Dimensions: 6.6 x 4.8 x 1.4 inches
