fushionsea DC 12V 24V 36V 4CH Remote Control Switch 433Mhz 10A Wireless Remote Control Switch for Garage Door, Motor, Industrial Control, Household Control etc. 2 Transmitter 1 Receiver

Brand: fushionsea

Color: Black Gray-2

Features:

• Wide Application: Wireless remote control switches can be widely used in multi-channel control equipment, such as: anti-theft alarm control, electric doors, lifting equipment, LED lights, elevators, electric curtains, roller shutters, garage door openers, gate barriers, motorcycles Vehicles, access control, industrial control and security industries and other fields.
• Easy to Use ：We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
• SIGNAL Stability：the RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 10--30 meters with no obstacle.
• 6 working modes： Unique working mode, the six working modes of Momentary, Latched, Toggle, 2channel Momentary +2channel Latched，2channel Momentary +2channel Toggle，2channel Toggle +2channel Latched can be switched at will, only need to through the Model button
• 4 Channel for Wireless Control ：the remote switch is a learning switch, it can learn different coding remote controls (such as 2262,1527 ect.) it can meet different customer needs. the output way /working way can be changed as you like, it is easy to match the transmitter. One/several transmitters can control one/several receivers simultaneously.They do not interfere with each other.

model number: AK-C211008

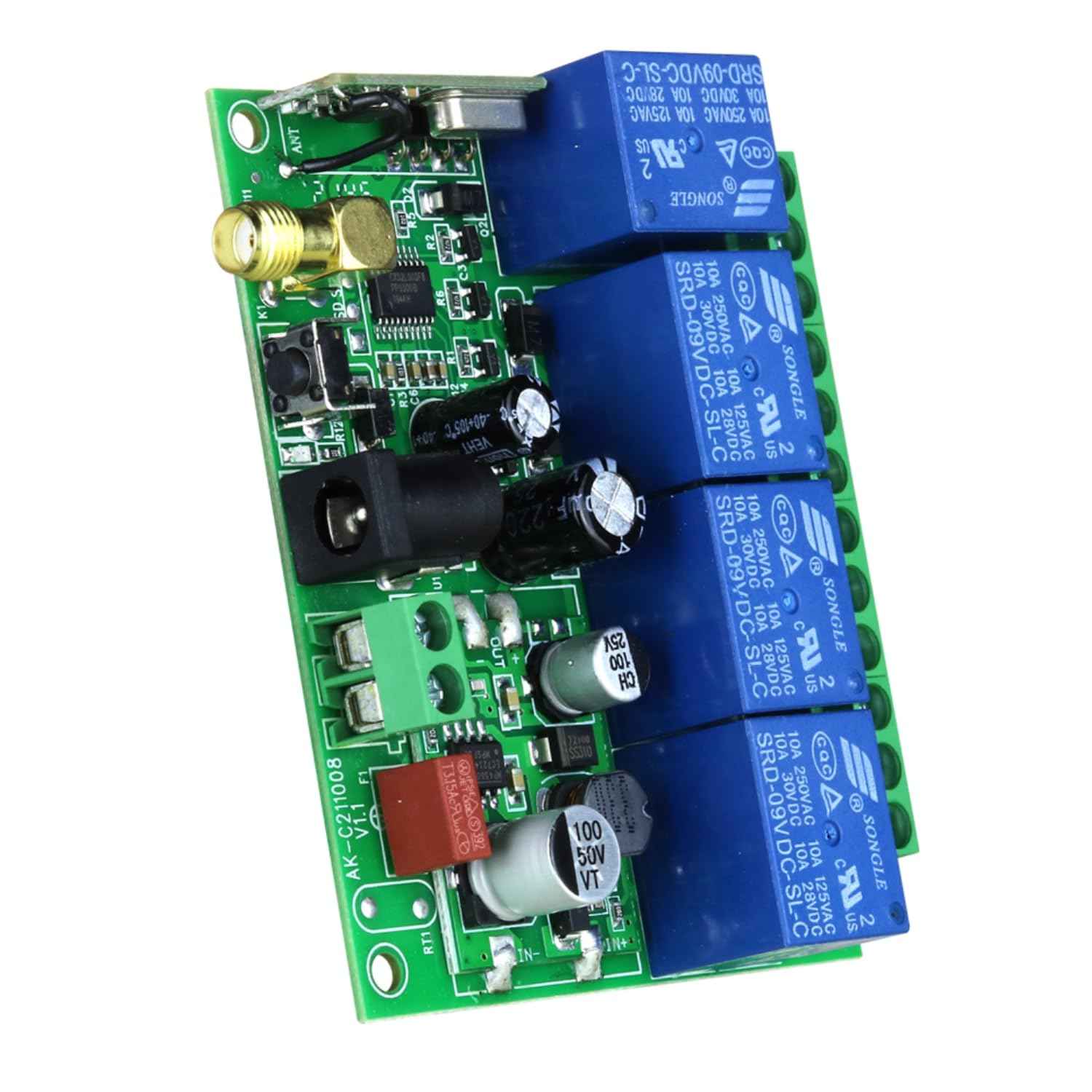

Details: About Receiver:
Model No.: AK-C211008
Working voltage: DC12V-36V
Quiescent condition: Less than 6mA
Working temperature: -40 Degree +80 Degree
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz
Output voltage: DC and AC is optional
Max load current: 10A
Size: 3.74*2.44*1.1 inch

About Working way:Working way changed by Learning button
Momentary: Press the Learning Button 1 times.
Relay: Press and hold -> On; Release -> Off.
Toggle: Press the Learning Button 2 times.
Relay: Press -> On; Press same button again -> Off
Latched: Press the Learning Button 3 times.
Relay: Press -> On; Press other button -> Off.
2channel Momentary +2channel Latched: Press the Learning Button 4 times.
2channel Momentary +2channel Toggle: Press the Learning Button 5 times.
2channel Toggle +2channel Latched: Press the Learning Button 6 times.

About Learning and clearing Method:
Learning: Press learning button, the indicator flashes and OFF, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times press the learning button according to the working way you need)
Clearning: Hold press learning button about 8 seconds,indicator light flashes several times and off, then press remote ,Relay did not Respond ,it means clearning code successful.

Package Includes
2 x Transmitter
1 x Receiver

Package Dimensions: 4.1 x 4.0 x 1.7 inches
