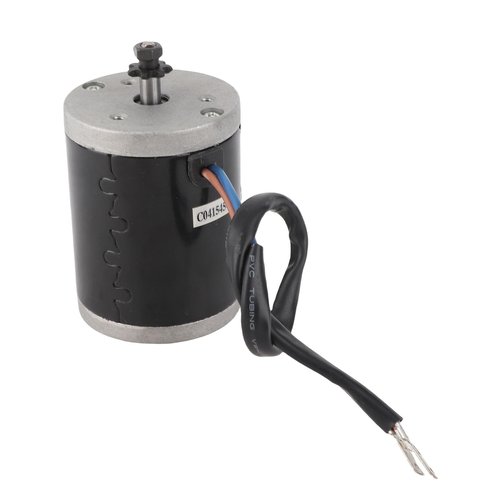

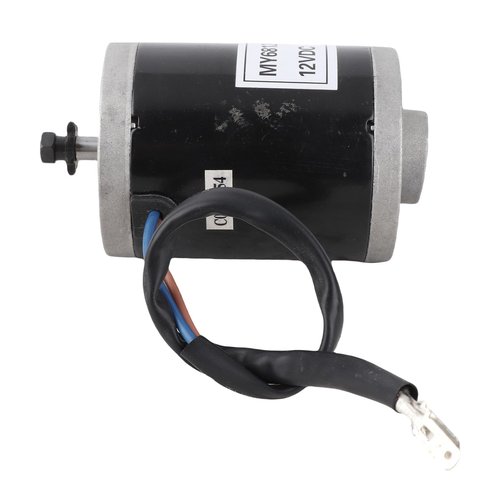

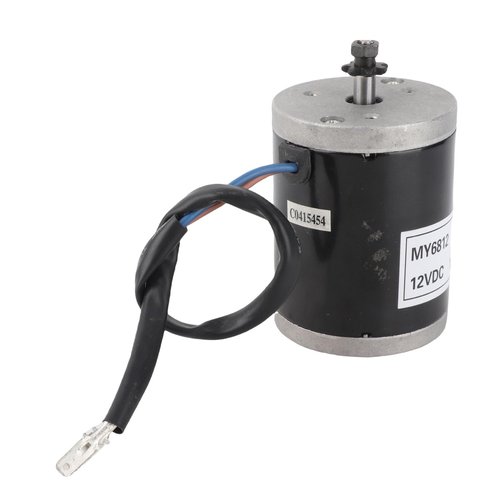

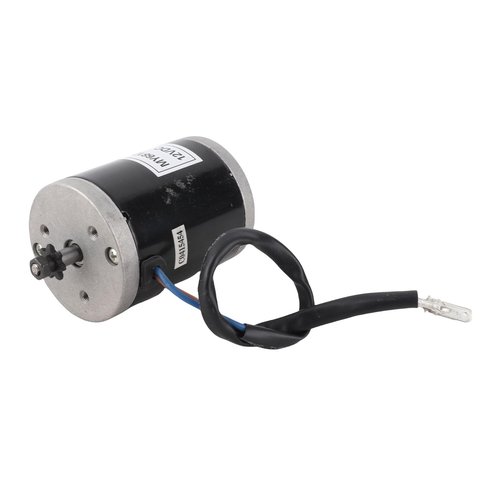

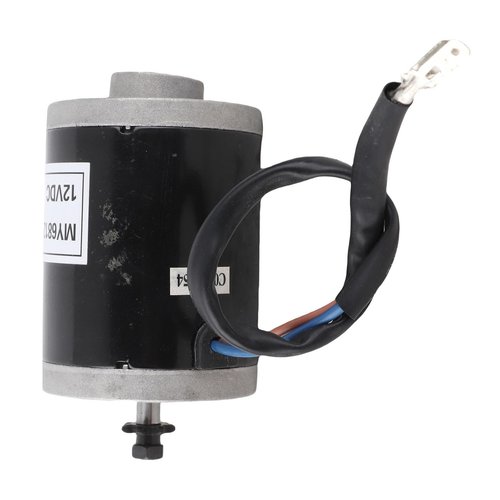

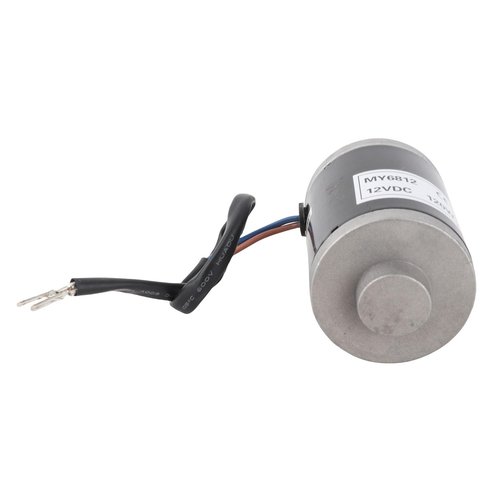

GBSCLOVER MY6812 Replacement Electric Bike Motor 120W, Aluminum Electric Scooter Brushed Motor, Practical DC Motor 12V, Suitable for Electrical Scooter, Electrical Bike, 2.7x3.9in

Brand: GBSCLOVER

Features:

• Metal Build: Crafted aluminum, this replacement electric bike motor has a sturdy metal belt pulley. Whether using it for daily commutes or harsh jobs, it can handle regular use, making it a suitable part for your brushed dc electric motor powered projects
• Specific Specs: The dc motor 12v packs a 120W power output and runs at 12V. With a rated speed of 2500±5%, it meets the performance needs of electric scooter brushed motor. When you need more speed, it can achieve up to 3500±5% RPM, giving you extra push
• Exact Size: Measuring 100mm in length and 68mm in diameter, the motor has an 8mm shaft diameter. The sizing makes the replacement electric bike motor a good fit for various brushed motor setups, allowing for easy integration into different vehicle designs
• Simple Install: Installing this electric scooter brushed motor is a easy process. Just connect the lines, and the dc motor 12v is all set to go. No need for complex tools or long installation times, so you can get your vehicle up and running quickly
• Many Uses: This brushed dc electric motor is suitable for scooters, bikes, and more. Whether upgrading an old vehicle or building a new one, the replacement electric bike motor works across different types of rides, making it a practical option for users

Part Number: GBSCLOVERpe9yvoba74

Details: Item Type: Brushed Motor
Model: MY6812
Material: aluminum
Color: as picture shown
Rated power: 120W (kW)
Rated voltage: 12 (V)
Main application: scooter, electric vehicle
Rated voltage range of 3C: below 36V DC
Rated current: Rated speed (RPM) : 2500±5%
Maximum speed (RPM) : 3500±5%
No-load current: <0.9A
Rated torsion: 0.56 nm
Transmission: belt pulley, metal
Shaft diameter: 8mm (single milling slot 1mm)
Efficiency: > 68%
Motor length: 100mm/3.9inch
Motor diameter: 68mm/2.7inch
Shaft diameter: 8mm/0.3inch
Motor fixed holes distance: 36mm/1.4inch

Package List：
1 x Brushed Motor

Package Dimensions: 5.1 x 3.9 x 3.5 inches
