【Highly Effective Protection】RK5 cartridge fuse offer excellent time-delay characteristics to ensure reliable protection in the event of motor overloads, earth faults and short circuits, effectively preventing costly equipment damage
【Optimised Selective Coordination】Time delay fuse reduce unnecessary downtime and ensure production continuity by simplifying and improving blackout prevention for more accurate selective coordination
【High-Performance Protection】Designed to withstand temporary overloads and inrush currents, our fuses excel at providing short circuit and overload protection, ensuring safe and stable circuit operation
【Current Limiting】RK5 dual element are fitted with 20A amp current limiting RK5 class fuses, AC: 250, VC: 150V

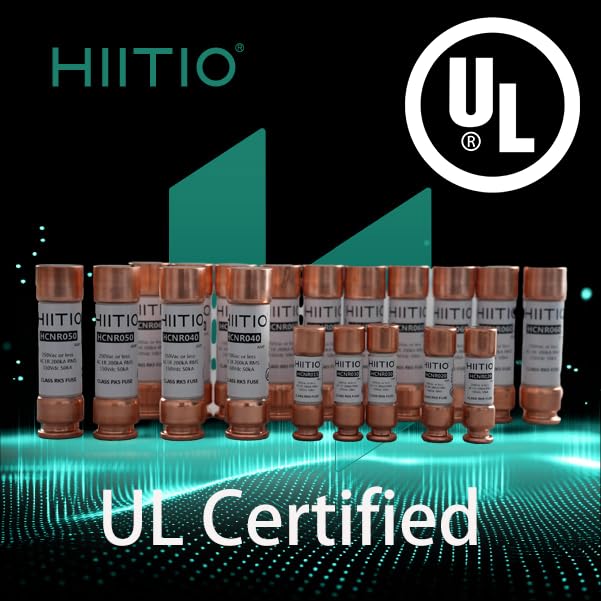

【Authorised Approvals】RK5 Fuse are UL listed and our fuses meet stringent safety standards to ensure your safety and peace of mind during use
model number: 20A-2pcs
Part Number: HCNR01
Details: Exploring the frontiers of electrical safety, we are proud to introduce you to HIITIO RK5 Fuse, designed to provide unrivalled motor protection. The time-delay feature of RK5 fuse means they can withstand brief surges in current while providing continuous overload protection for your motor, ensuring your equipment runs smoothly and safely.
Voltage Rating:
AC: 250V
DC: 150V
Ampere Range:
20A
Interrupting Capacity:
AC: 200kA RMS Sym.
DC: 50kA
Applicable Standards:
UL 248-12, Class RK5
