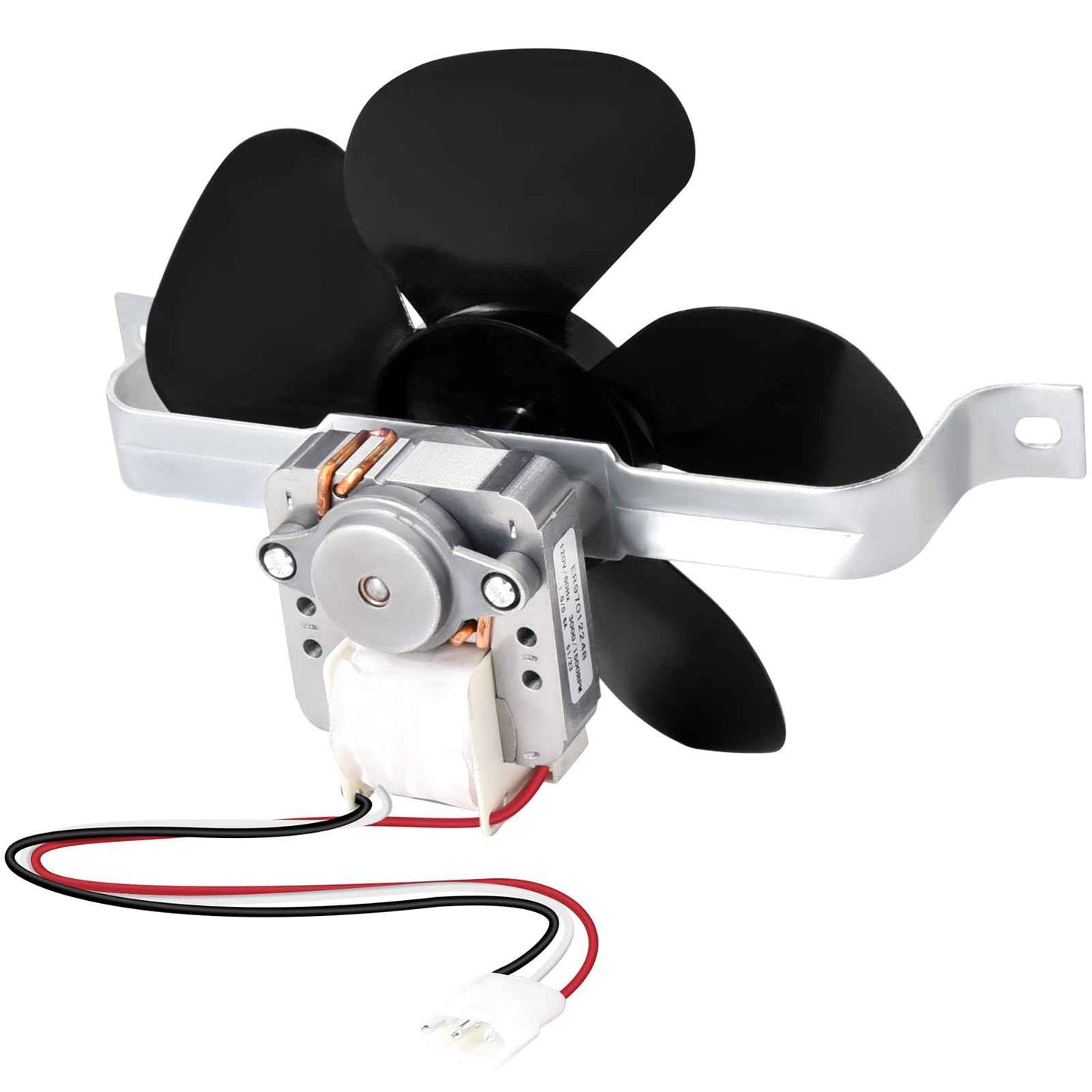

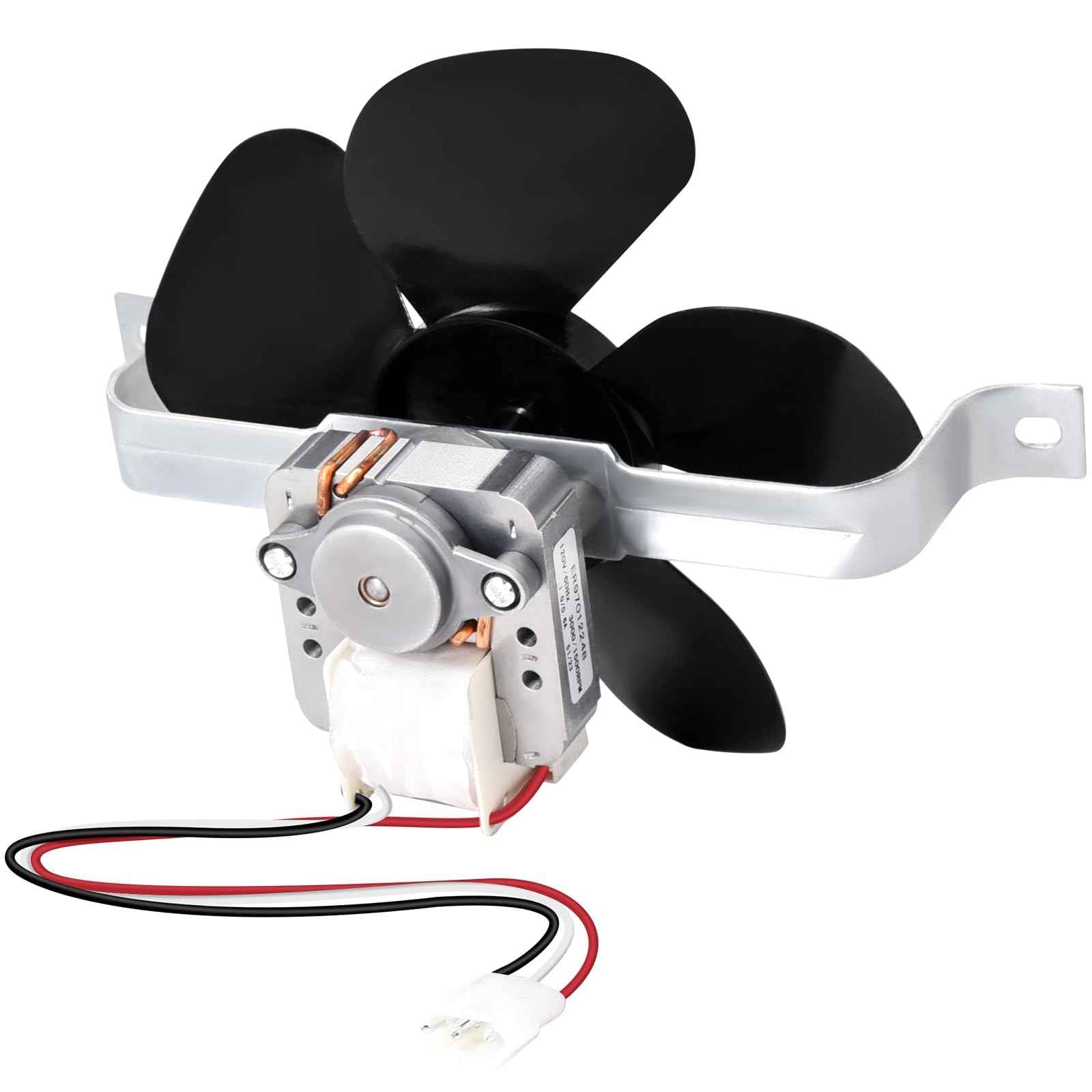

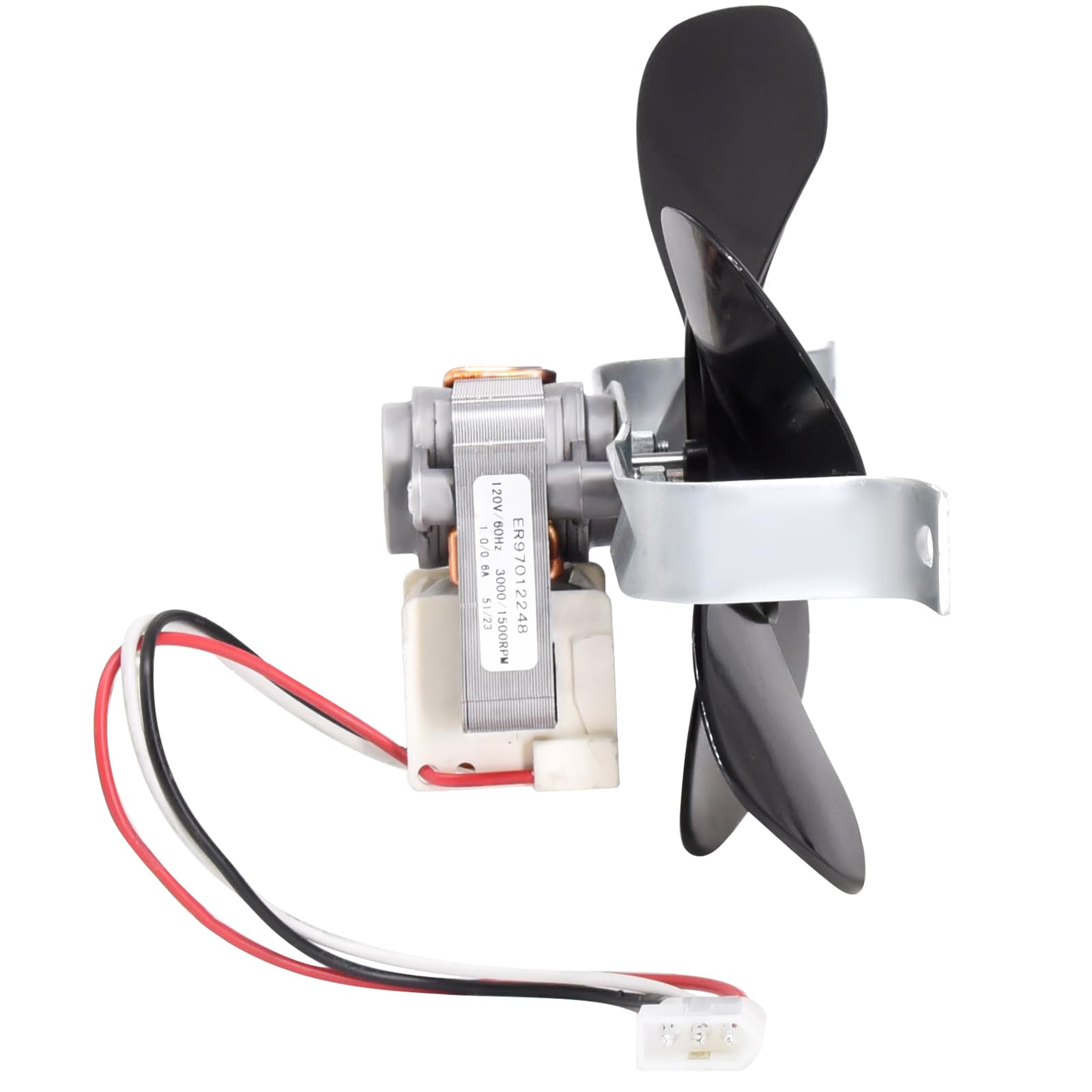

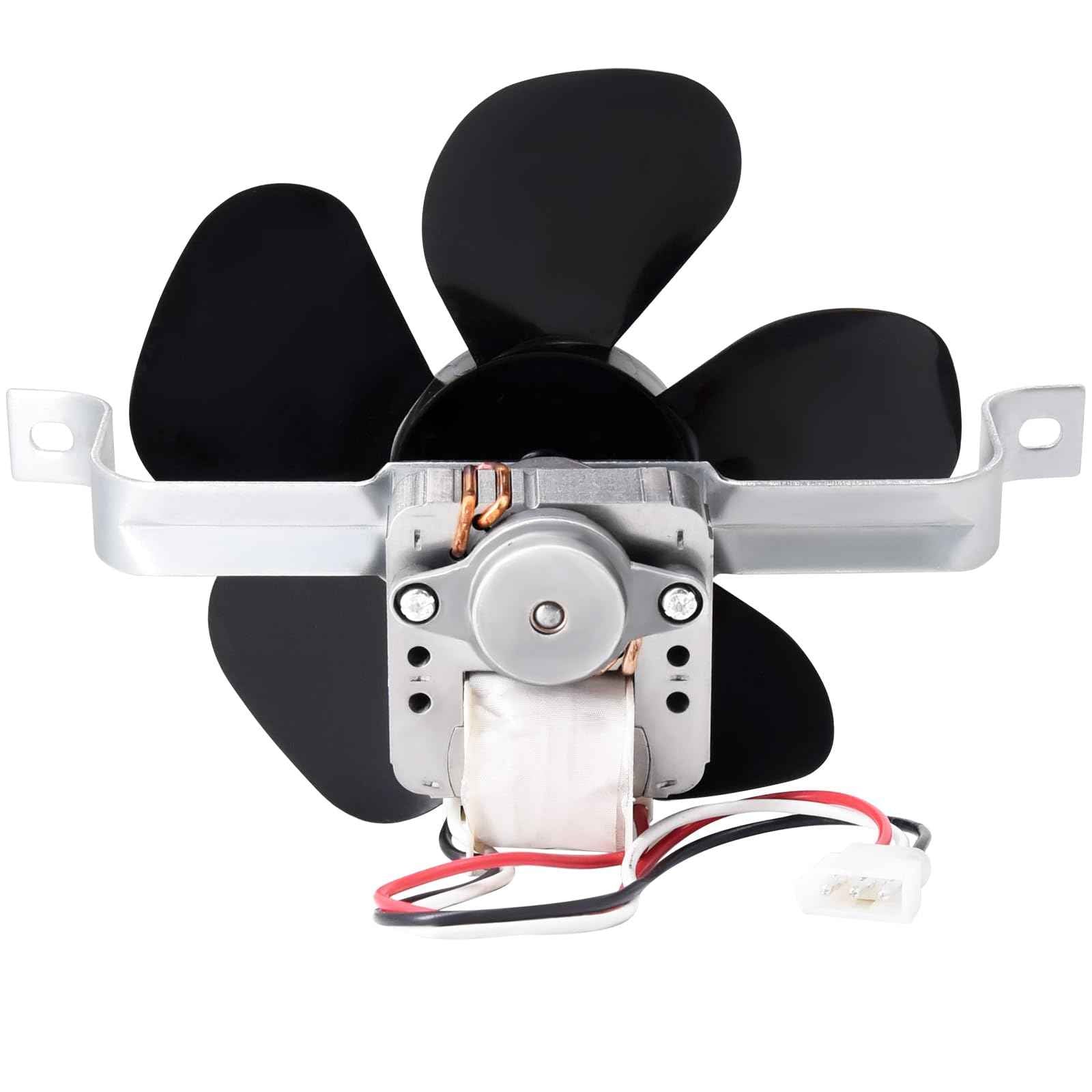

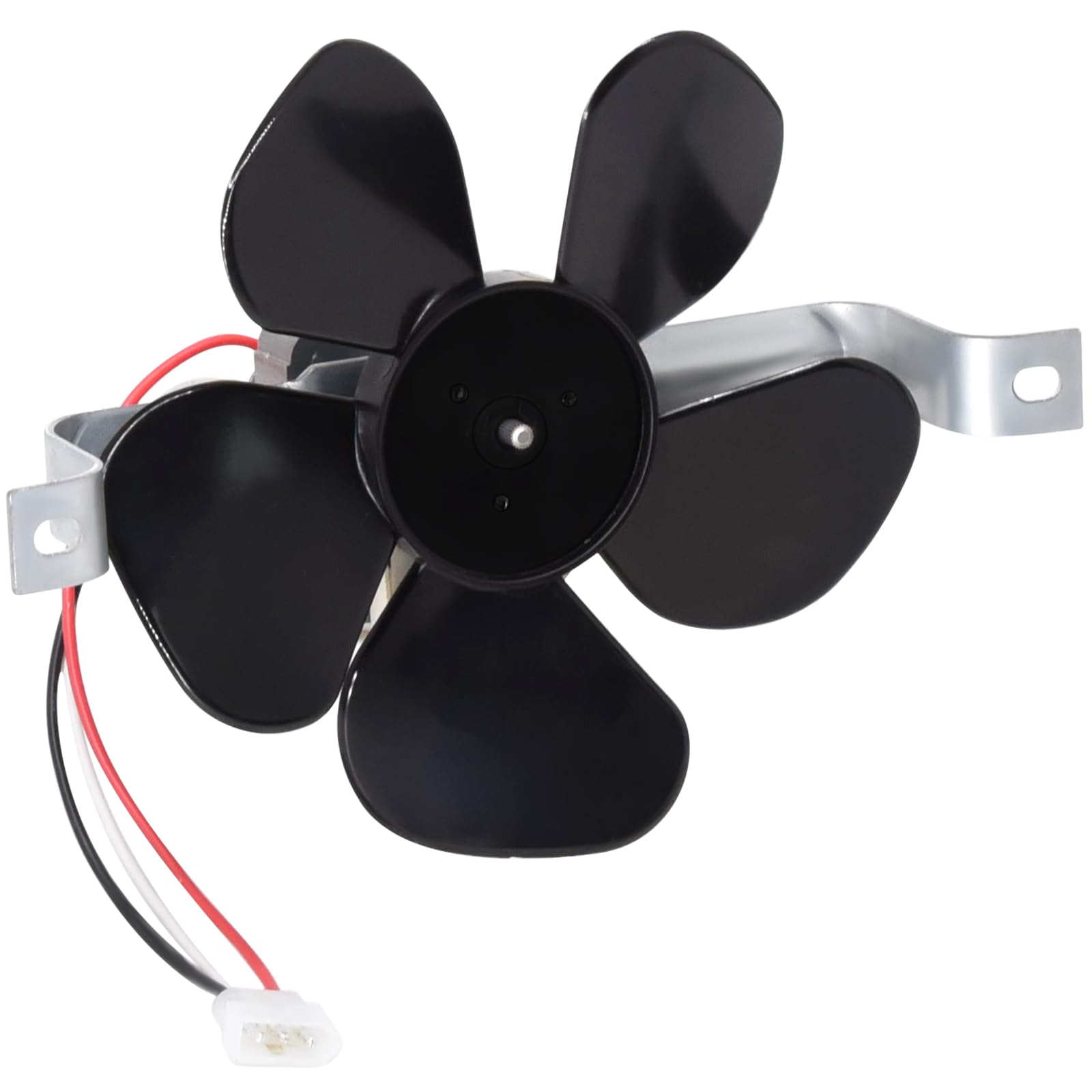

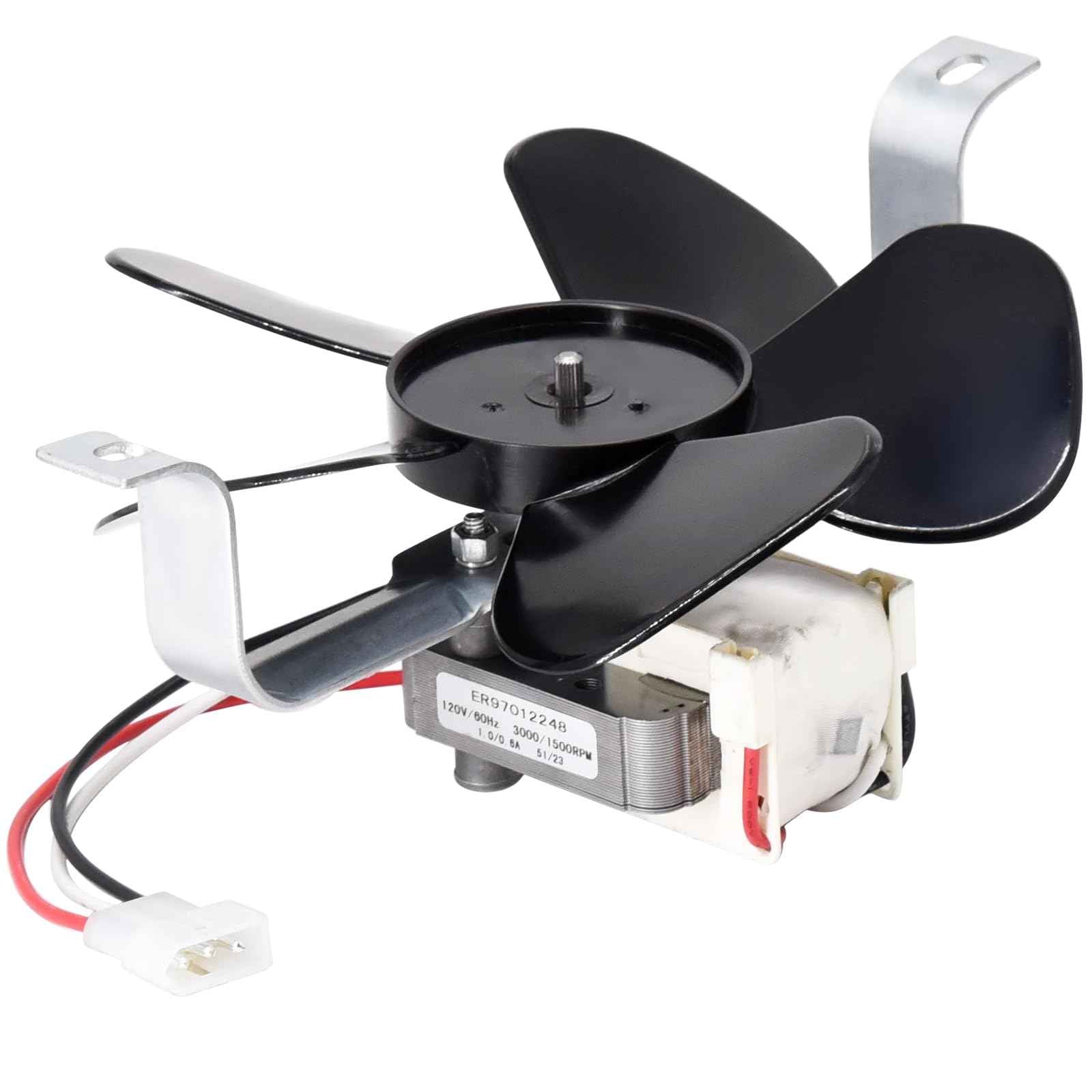

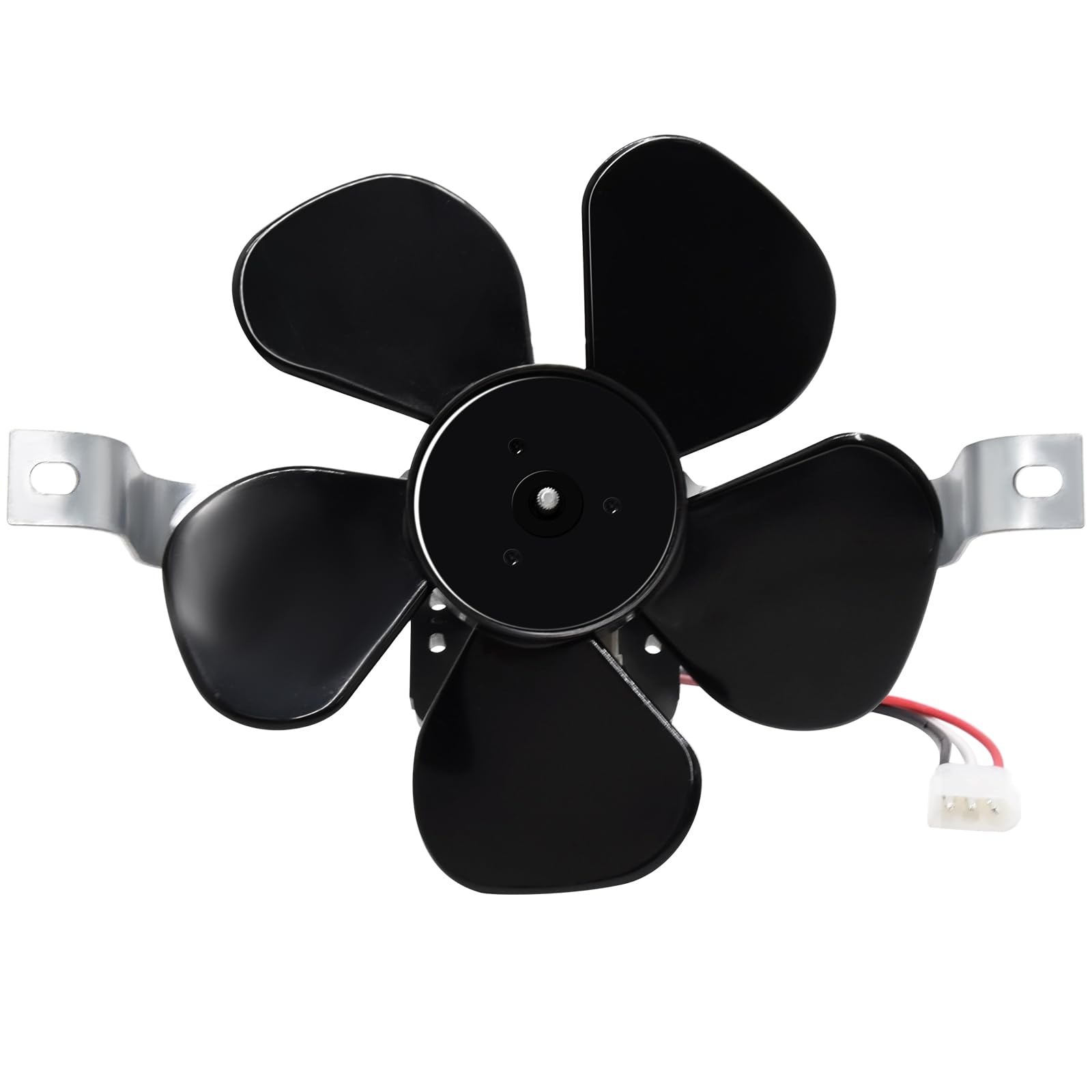

Hiorucet S97012248 2S-67N3 Range Hood Fan Motor Replacement For Broan 42000 40000 Series, Replaces BP17, 99080492, F403011, 97012248, 99080533, F402401 Vent Hood Fan Motor For Broan Nutone Exhaust Fan

Brand: Hiorucet

Features:

• ► Parameter of Range Hood Fan Motor - Bracket Dimension: 8 5/8'', Fan Blades Dimension: 6 1/2'' Dia. 120V, 60Hz, 1.0/0.6A, 3000/1500RPM, C-Frame Motor, 2 Speed Motor, Rotation CCW Shaft End. 3 Wires: Red-Low, Black-High, White-Common. Package Includes: 1 x Motor, 1 x Fan Blade and 1 x Mounting Bracket.
• ► Function - The model 2s-67n3 motor assembly is an part for Broan range hoods. This part is the driving force behind the extraction and circulation capabilities of your range hood, efficiently removing smoke, grease, and odors from the kitchen air.
• ► Causes for Replacement - Noticeable decreases in suction power, abnormal sounds indicating mechanical wear, or failure to start, all of which can compromise your kitchen's air quality and comfort. Symptoms of a bad Motor Assembly include: A noticeable reduction in exhaust efficiency, failing to clear smoke or odors effectively. Increased noise levels, such as grinding, humming, or buzzing, suggesting the motor is struggling. The range hood not operating at all, pointing to a potential motor failure.
• ► Wide Compatibility - S97012248 Range Hood Fan Motor for NuTone Broan 42000 Series, 40000 Series Stove Range Hood. Replaces BP17, S97012248, 99080492, F403011, 97012248, AP4527731, 97011218, 97015415, 99080363, 99080410, 99080533, F402401, ER97012248, 97012248A, 97012248B, S97005161, S97011218, S97015415, S99080363, S99080410, 1172615, 97005161, 23351644590.
• ► Compatible Models - 97012248 Range Hood Fan Motor Replacement for Broan Exhaust Fan, Bro-an 233.5094159, 233.5094459, 233.5094959, 233.5104059, 233.5104159, 233.5104459, 233.5104959, 233.5108911, 233.5114159, 233.5114459, 233.5134459, 233.5134559, 233.5134859, 233.5138912, 233.5154059, 233.5154459, 233.5154559, 233.5164059, 233.5164459, 233.5164559, 233.5164859, 233.5164959, 233.5174059, 233.5174459, 233.5174559, 233.5174959.

model number: 97012248

Part Number: no

Details: Description:

Bracket Dimension: 8 5/8''
Fan Blades Dimension: 6 1/2'' Dia
120V, 60Hz, 1.0/0.6A, 3000/1500RPM
C-Frame Motor, 2 Speed Motor
Rotation CCW Shaft End
3 Wires: Red-Low, Black-High, White-Common

Package Includes: 1 x Motor, 1 x Fan Blade and 1 x Mounting Bracket.

Replaces BP17, S97012248, 99080492, F403011, 97012248, AP4527731, 97011218, 97015415, 99080363, 99080410, 99080533, F402401, ER97012248, 97012248A, 97012248B, S97005161, S97011218, S97015415, S99080363, S99080410, 1172615, 97005161, 23351644590.

Package Dimensions: 7.0 x 6.7 x 5.0 inches
