HQPARRTS 15mm to 12mm Fork Thru Axle Conversion Kit Compatible with Most Road, Gravel, and Cross Bikes

Brand: HQPARRTS

Color: BLACK

Features:

• 【Compatible With】:15mm to 12mm Fork Thru Axle Conversion Kit for most road, gravel and cross bikes.
• 【Product Description】:Use 12mm wheels in a 15mm fork. Converts 15x100 forks to 12x100 standard by using two inserts to reduce the diameter of your fork's dropouts.Converts fork from 15mm to 12mm Thru Axle allowing use of a wide range of hubs and wheels previously incompatible.

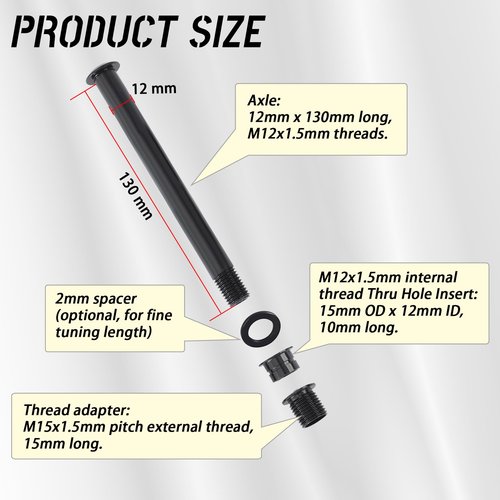

• 【Package Included】: Thread adapter: M15x1.5mm pitch external thread, 15mm long.M12x1.5mm internal thread Thru Hole Insert: 15mm OD x 12mm ID, 10mm long.Axle: 12mm x 130mm long, M12x1.5mm threads.2mm spacer (optional, for fine tuning length),1pcs Washers

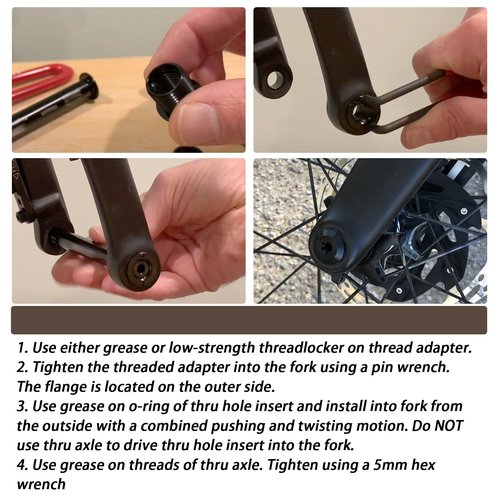

• 【Installation】:1. Use either grease or low-strength threadlocker on thread adapter 2. Tighten the threaded adapter into the fork using a pin wrench. The flange is located on the outer side. 3. Use grease on o-ring of thru hole insert and install into fork from the outside with a combined pushing and twisting motion. Do NOT use thru axle to drive thru hole insert into the fork. 4. Use grease on threads of thru axle. Tighten using a 5mm hex wrench
• 【Note】:Perfect replacement for an original part. It is perfectly matched to the original vehicle after installation.

model number: Fork Thru Axle Conversion Kit

Part Number: Fork Thru Axle Conversion Kit

Package Dimensions: 5.7 x 3.5 x 1.3 inches
