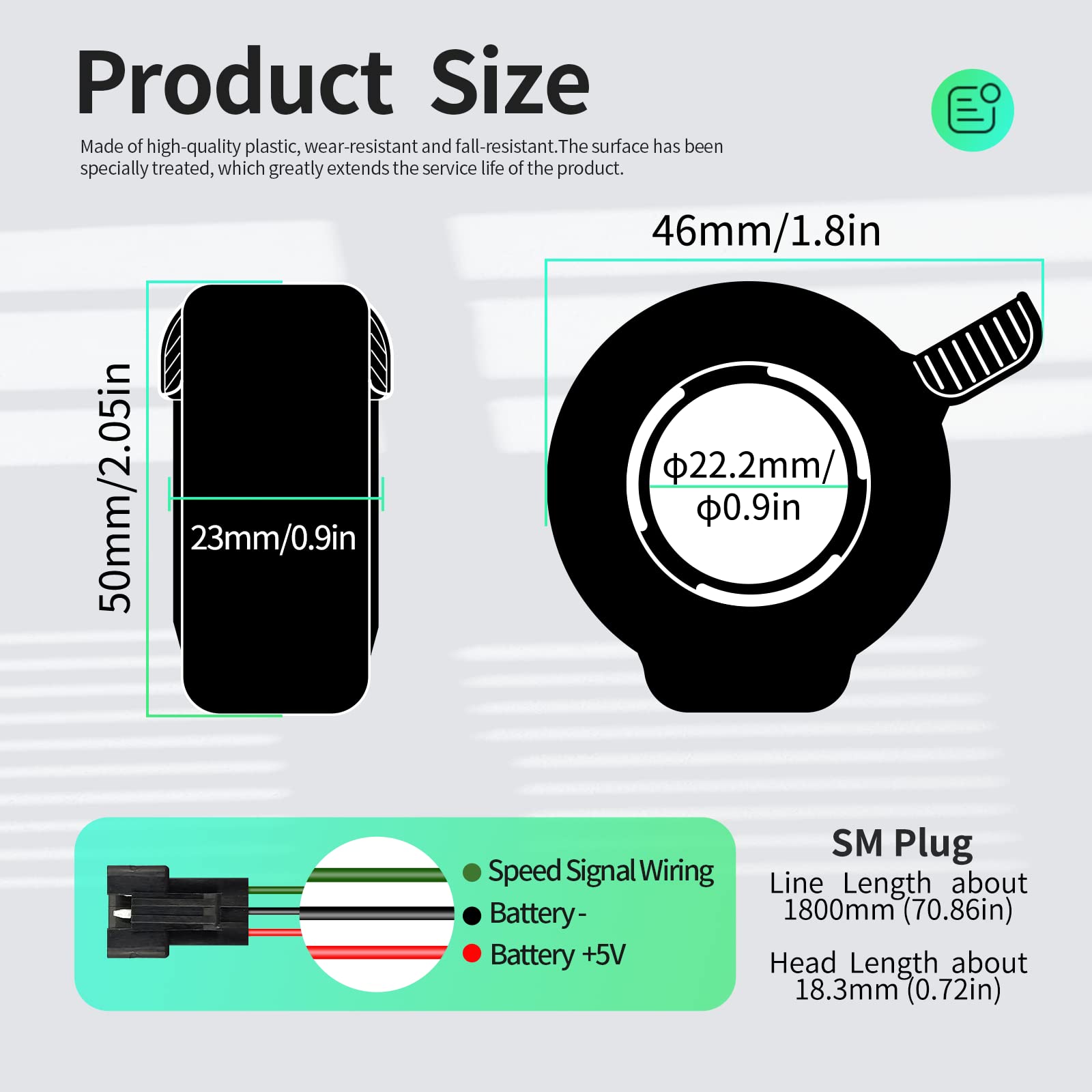

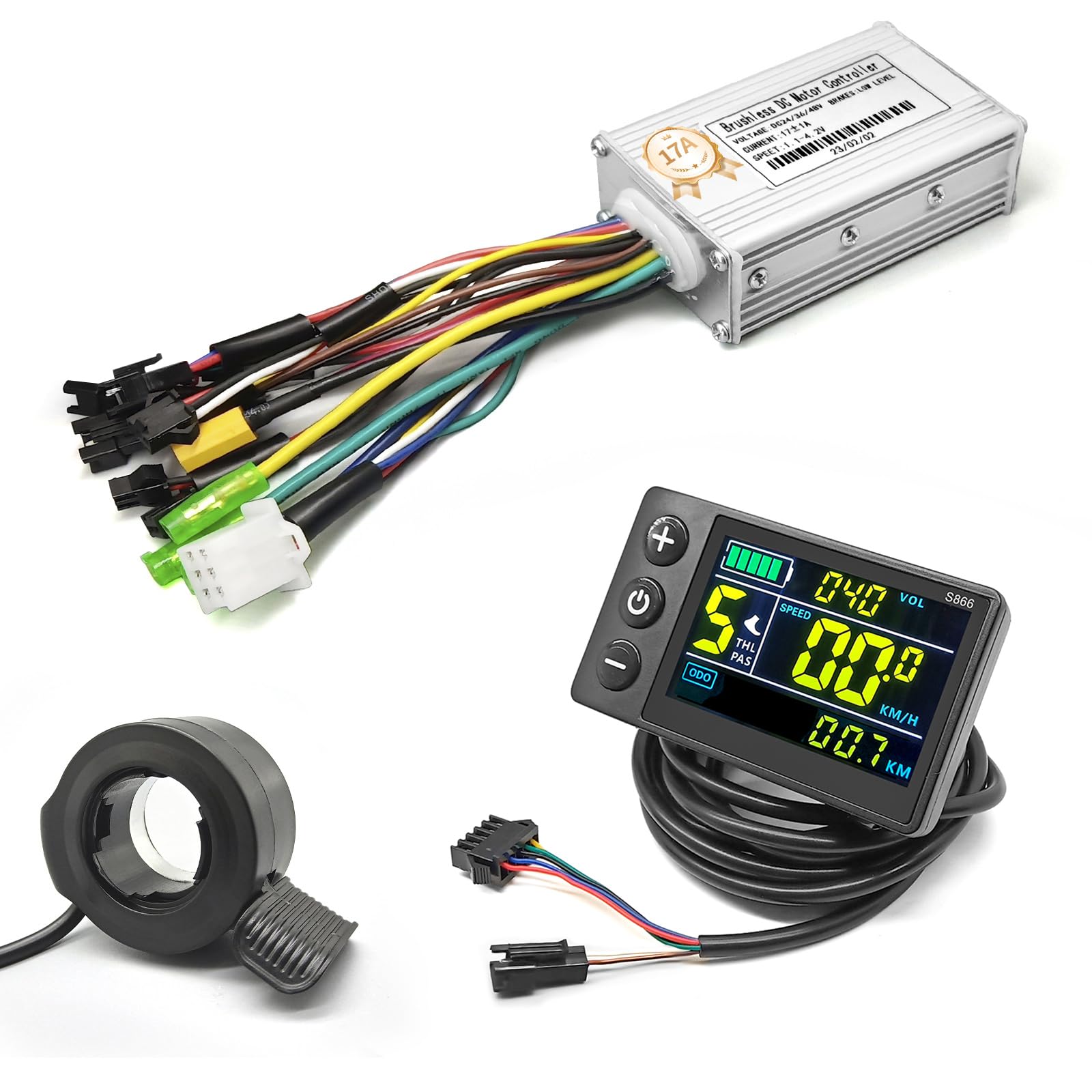

JOCHEN Ebike 36V/48V/52V 17A/26A/30A/40A Brushless Controller Mini Color LCD CS866 Display for Electric Bicycle Scooter Mountain Bike Parts (17A with CS866 Throttle)

Brand: JOCHEN

Color: 17A with CS866 throttle

Features:

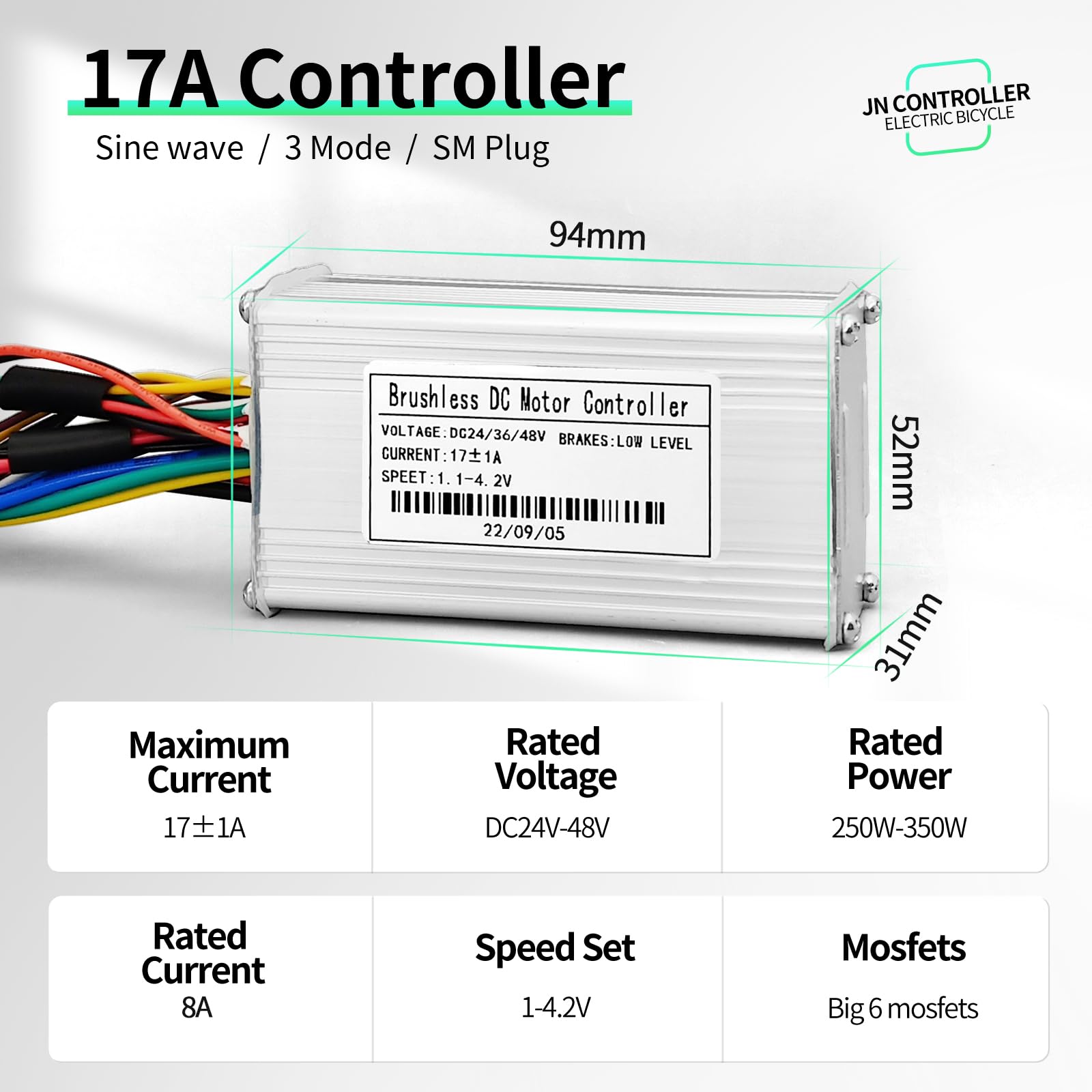

• Sine wave controller: 17A sine wave controller is compatible with Hall and Hall free brushless motors, and is suitable for 250W-350W electric bicycles and scooters

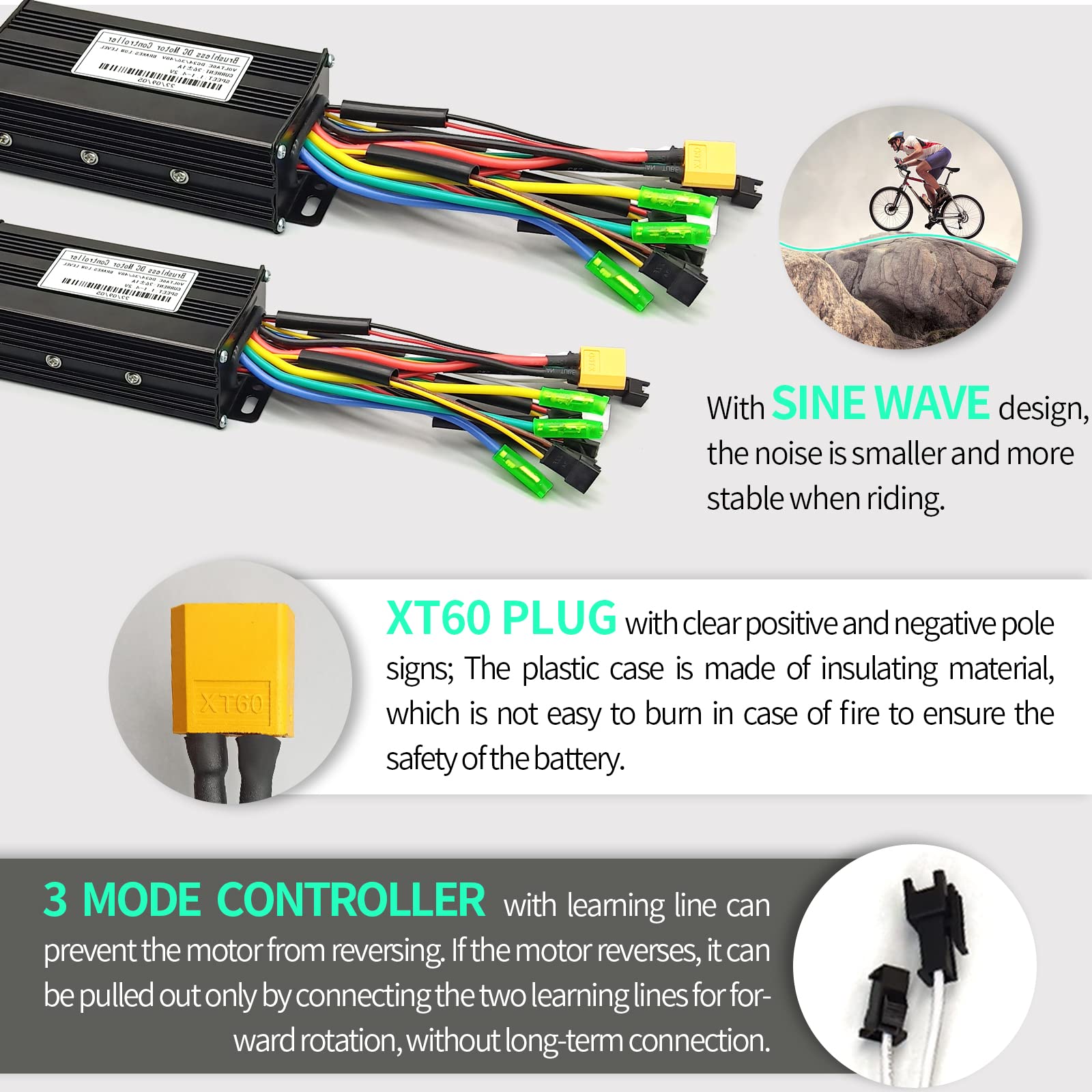

• Self learning function: The white learning line on the controller can learn the phase angle and rotation direction of the motor,Compatible with motors with and without Hall by using self-learning function

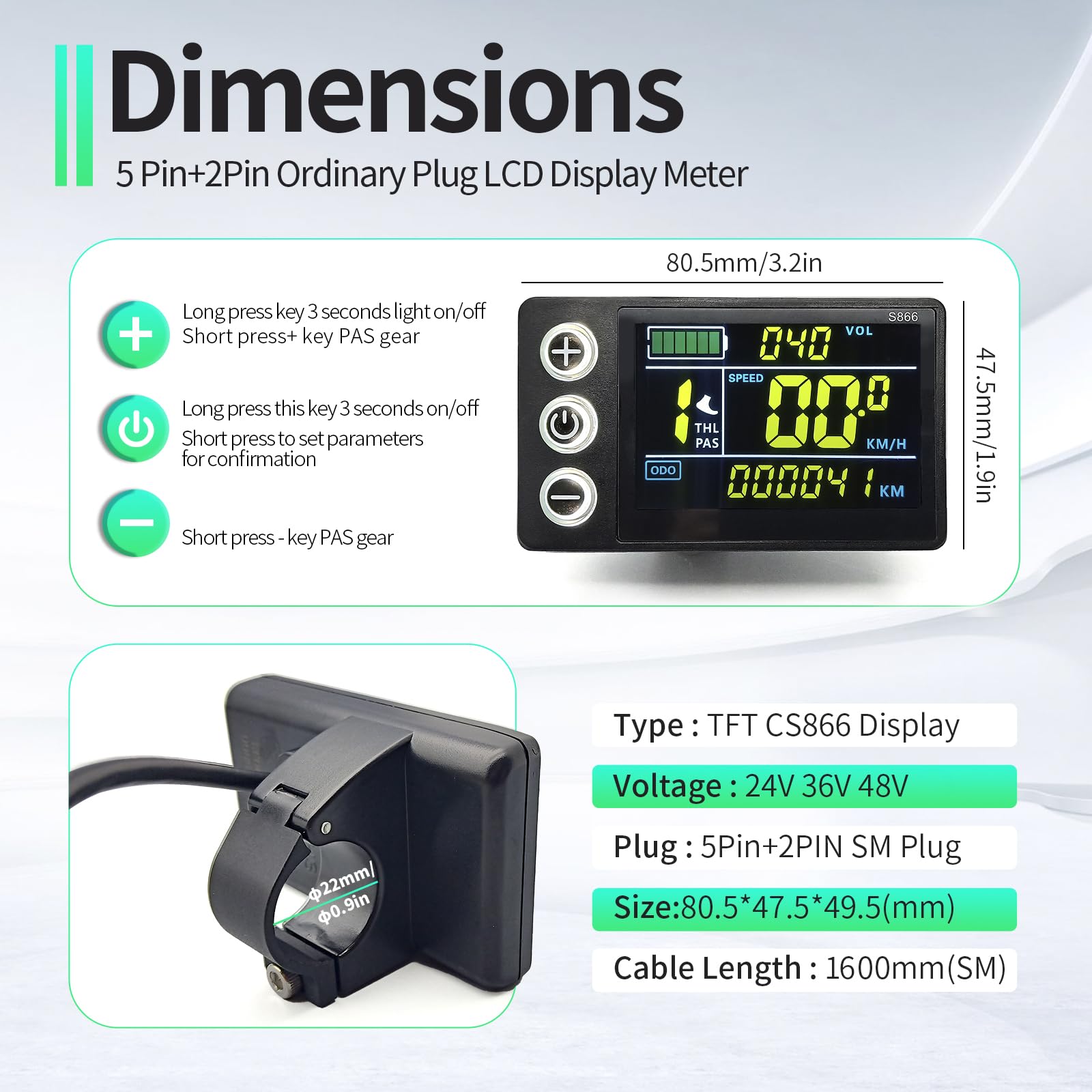

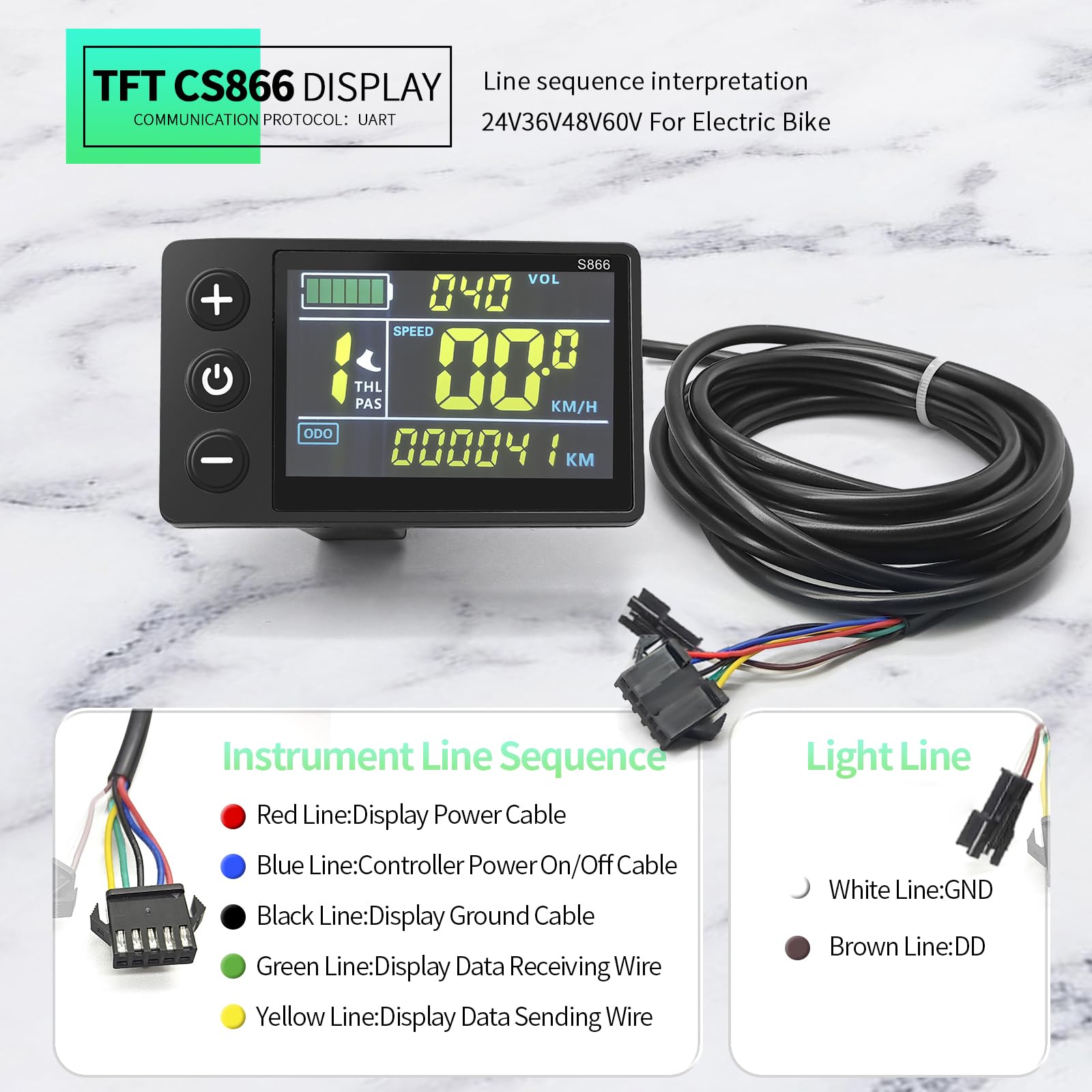

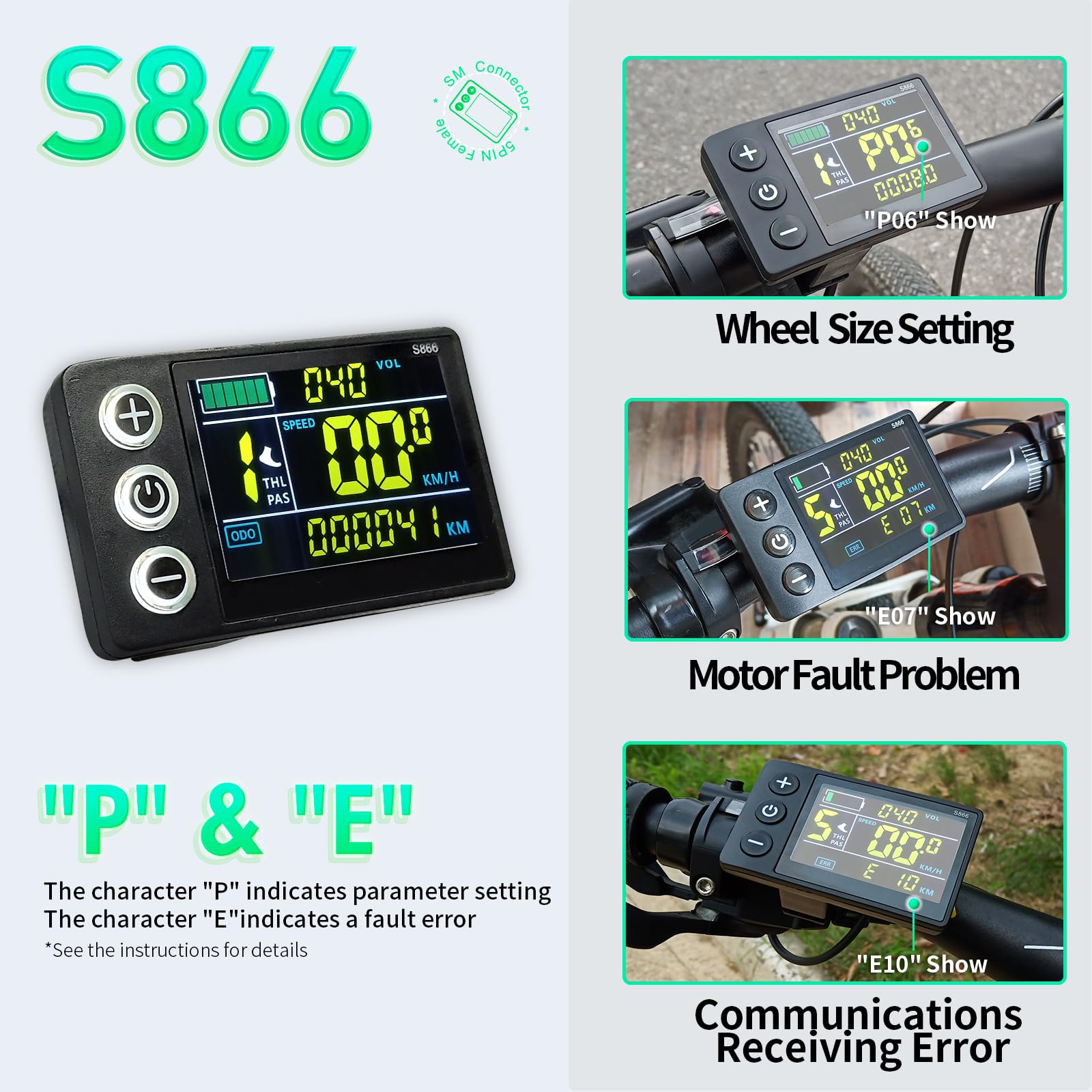

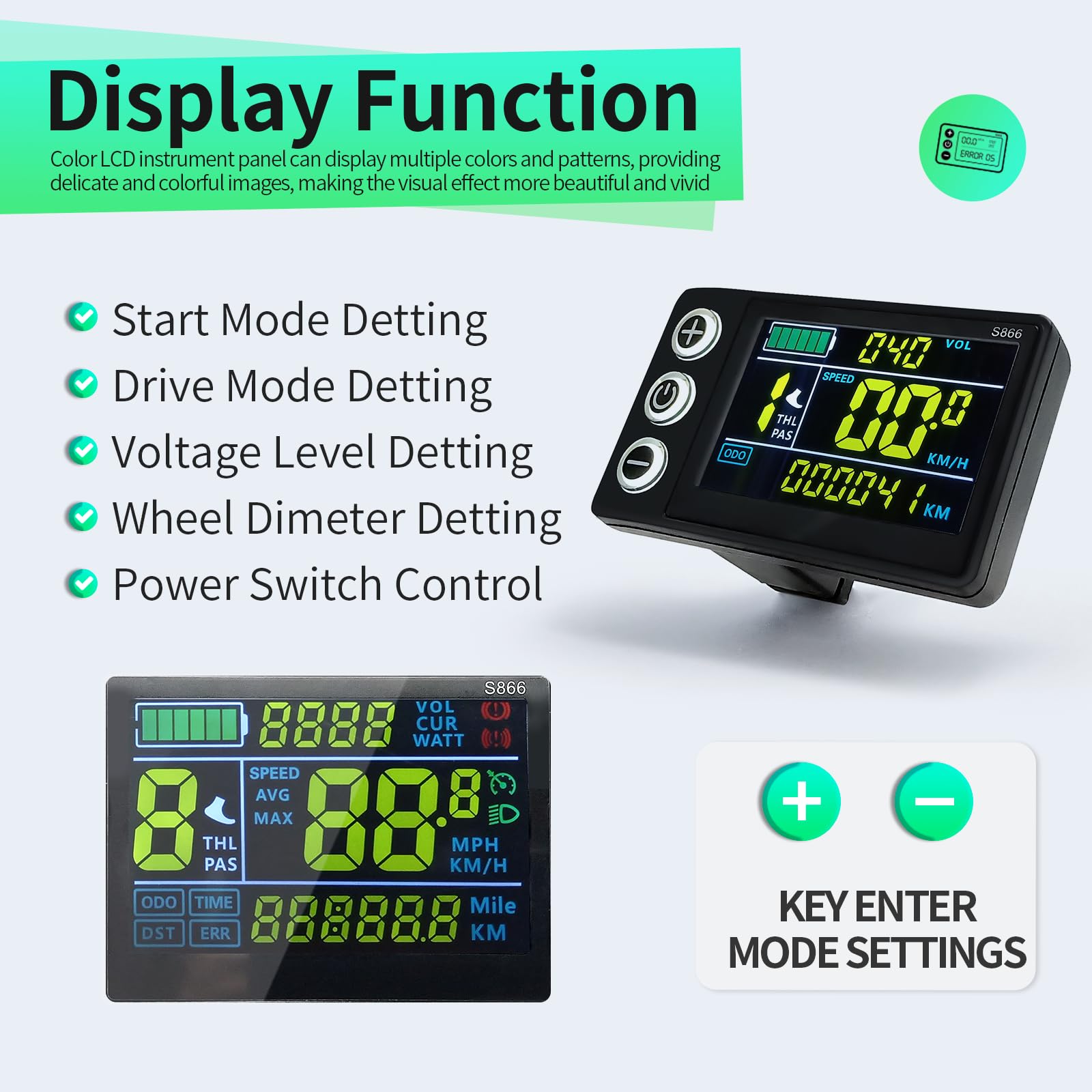

• Display: color LCD CS866 intelligent display, compatible with 24V/36V/48V/52V voltage, can adjust the corresponding voltage in P03 parameter display, complete functions, speed display, residual power display, subtotal mileage, total mileage

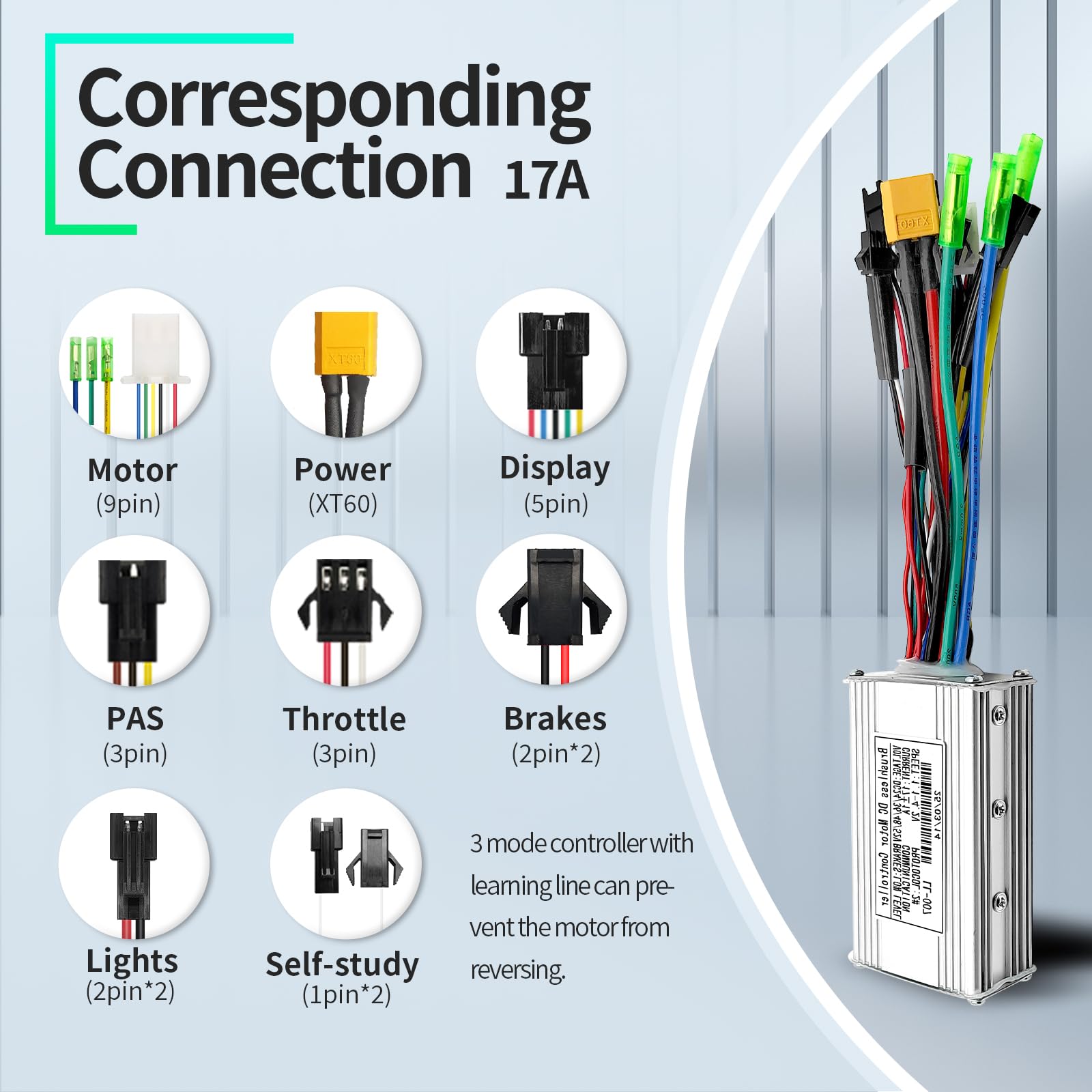

• Lamp function: The controller has a red and black cable as the lamp plug, which only supplies power to the lamp (voltage consistent with the battery). If you want to turn on and off the car lights, you need to install suitable switch buttons.
• The wiring of the car lights on the monitor can be connected to the lights, and the switch of the lights can be controlled by pressing and holding the up button on the monitor for 3 seconds

model number: 17A+CS866

Details: Sine wave controller: 17A sine wave controller is compatible with Hall and Hall free brushless motors, and is suitable for 250W-350W electric bicycles and scooters Self learning function: The white learning line on the controller can learn the phase angle and rotation direction of the motor,Compatible with motors with and without Hall by using self-learning function Display:Color LCD CS866 intelligent display, compatible with 24V/36V/48V/52V voltage, can adjust the corresponding voltage in P03 parameters of the display, fully functional, speed display, remaining battery display, subtotal mileage, total mileage; Wheel size and assist gear can be set according to needs Lamp function: The controller has a red and black cable plug that can connect to the lamp, and this plug only provides power to the lamp (the voltage is consistent with the battery). If you want to turn on and off the car lights, you need to install appropriate switch buttons.

EAN: 0764938255597

Package Dimensions: 6.9 x 5.1 x 3.8 inches
