JRready 50 Pairs 1.57mm (Standard.062) Pin and Sockets 18-22 AWG, Compatible with Molex Standard.062 1560 1561 Series Male& Female Crimp Terminals, Adapt Standard.062 Connector Housing, ST6405

JRready 50 Pairs 1.57mm (Standard.062) Pin and Sockets 18-22 AWG, Compatible with Molex Standard.062 1560 1561 Series Male& Female Crimp Terminals, Adapt Standard.062 Connector Housing, ST6405

$25.95 USD
$51.99 USD $25.95 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Brand: JRready

Features:

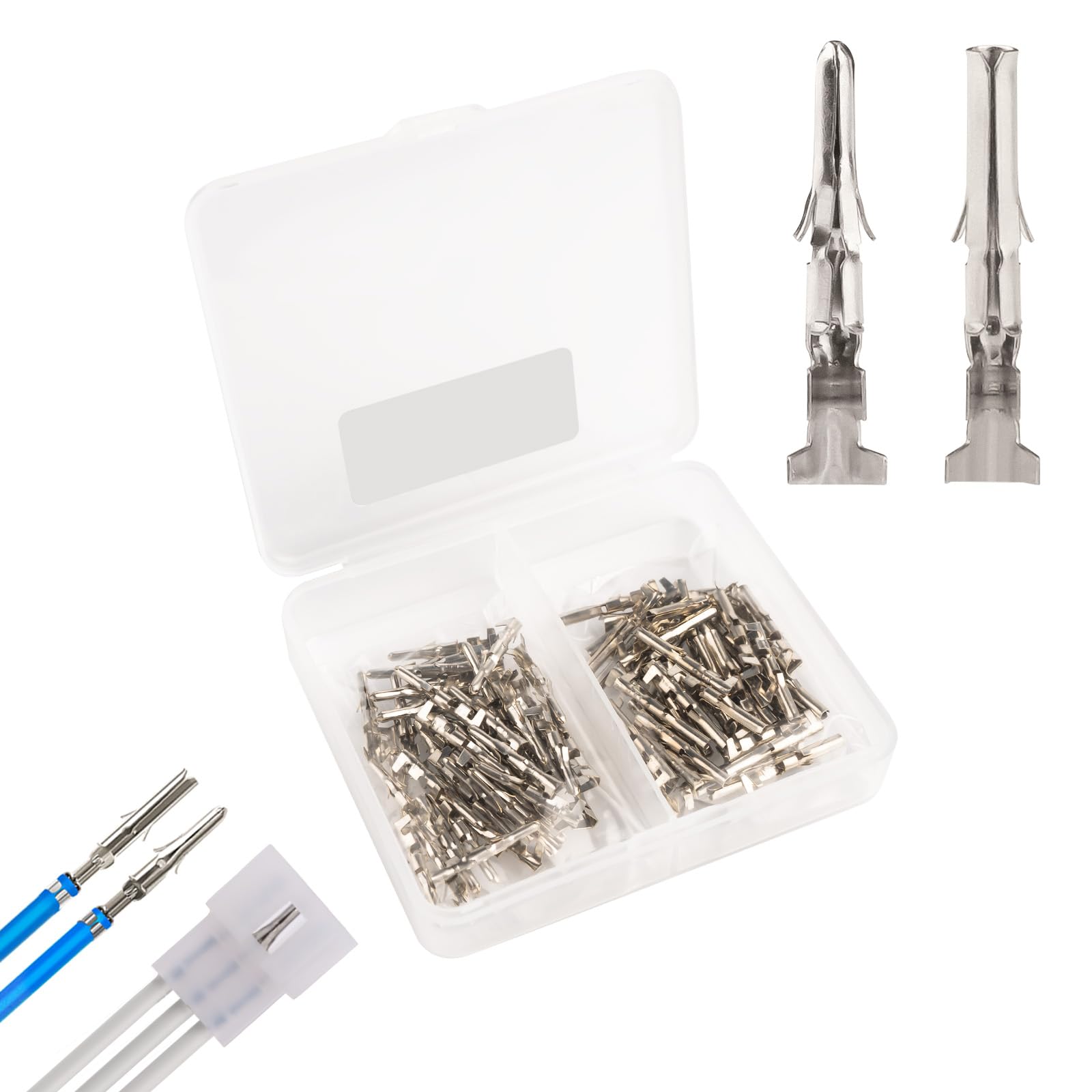

  • Package List: 50 PCS Female and 50 PCS Male Crimp Terminals.

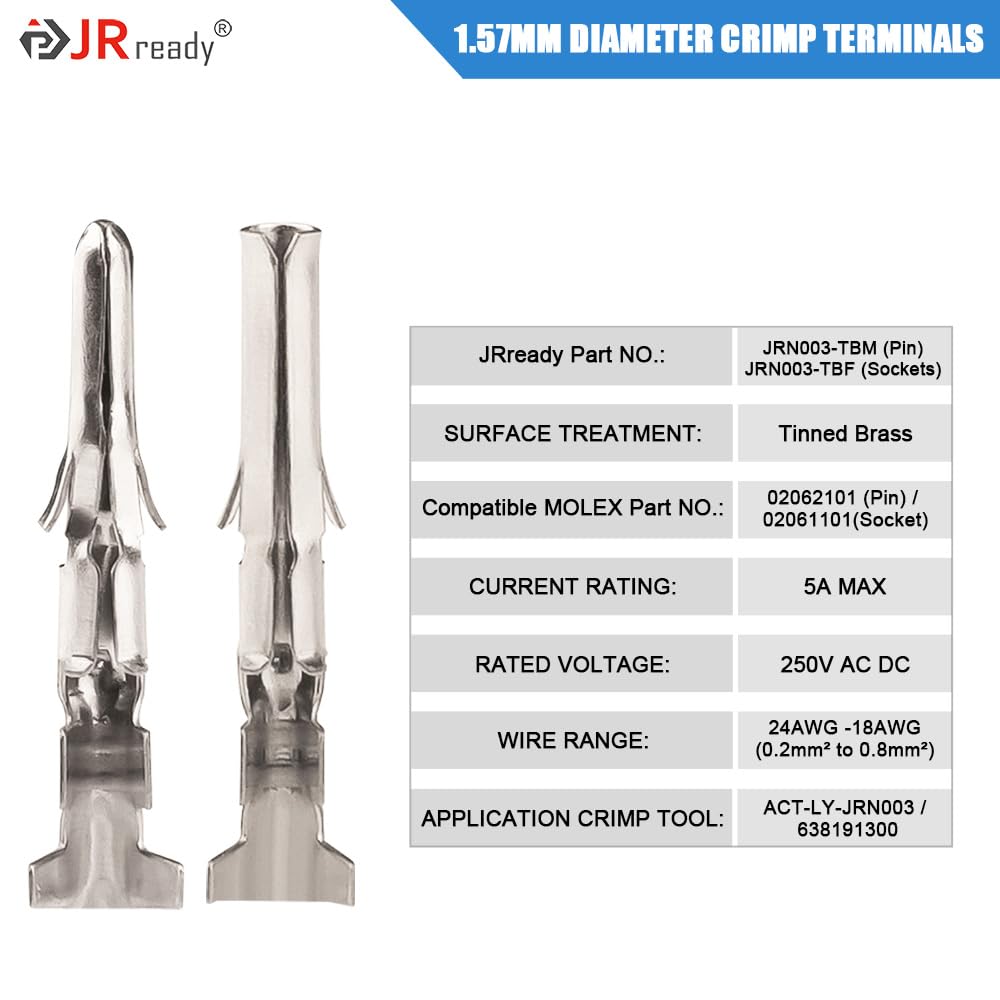

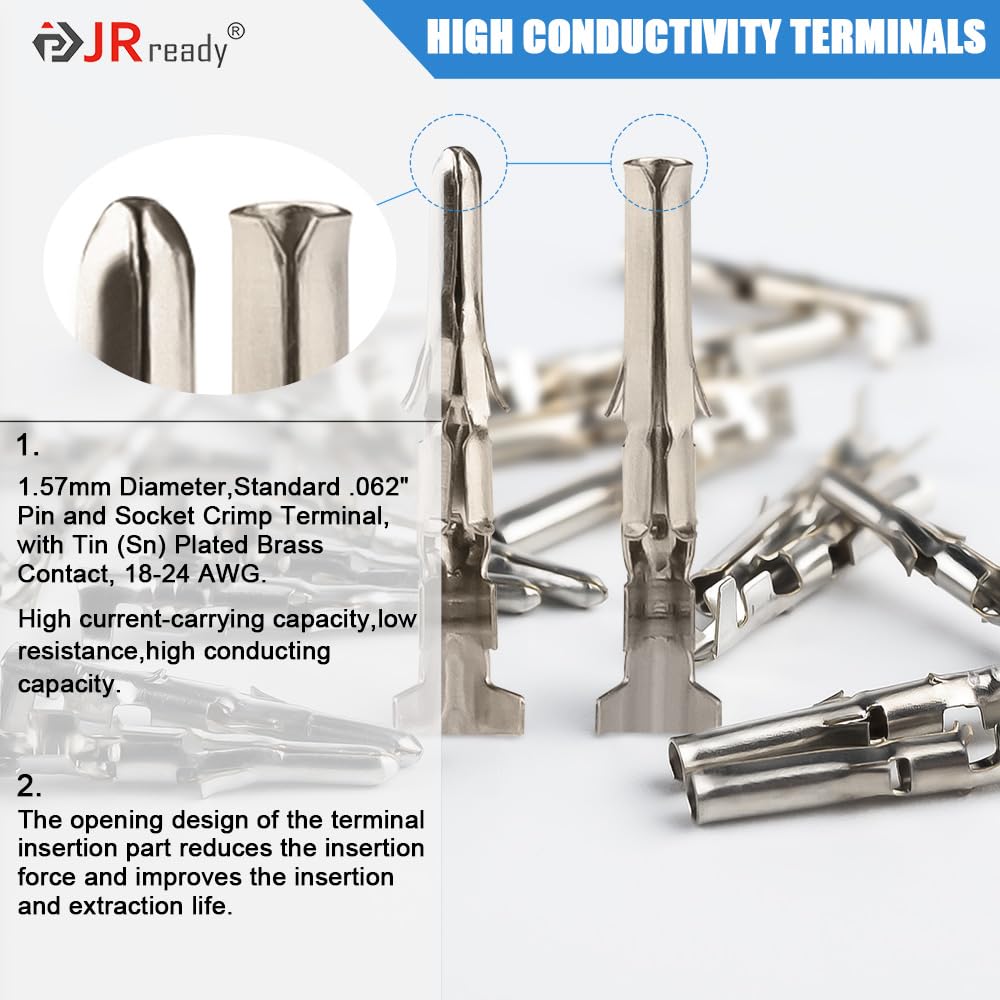

  • Terminals Material: Brass tin plated material, highly conductive, corrosion and oxidation resistant. Rated current 5A MAX.Wire range 24-18AWG.
  • Compatible Molex Models:Pin 02062103 / 02062101，Socket 02061103 / 02061101.
  • Plug force test: the plug force is stable, can adapt to medium and high intensity vibration, and has high safety. The electrical connection is uninterrupted to ensure stable function.

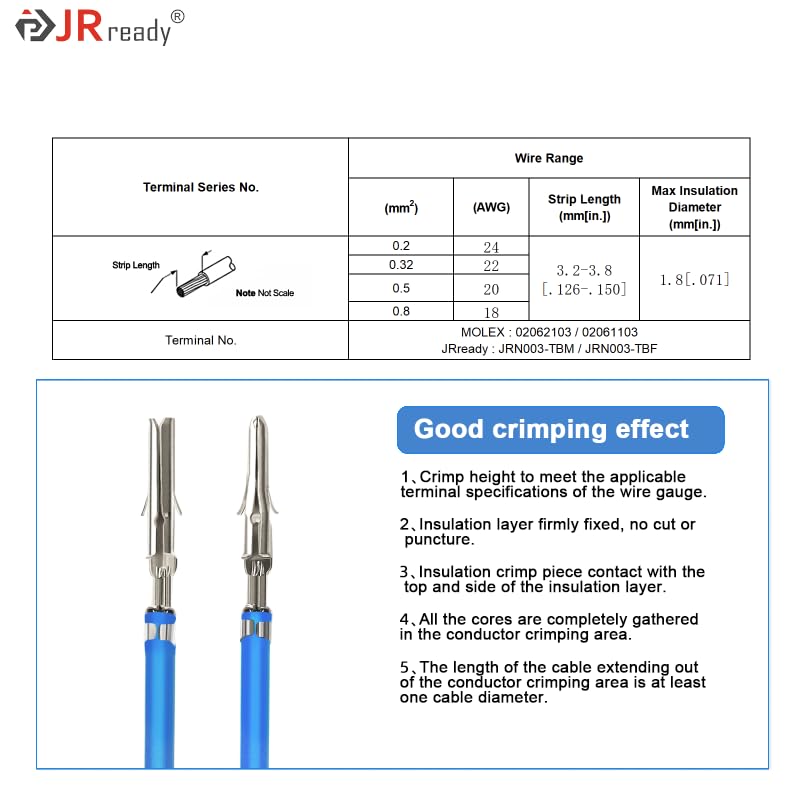

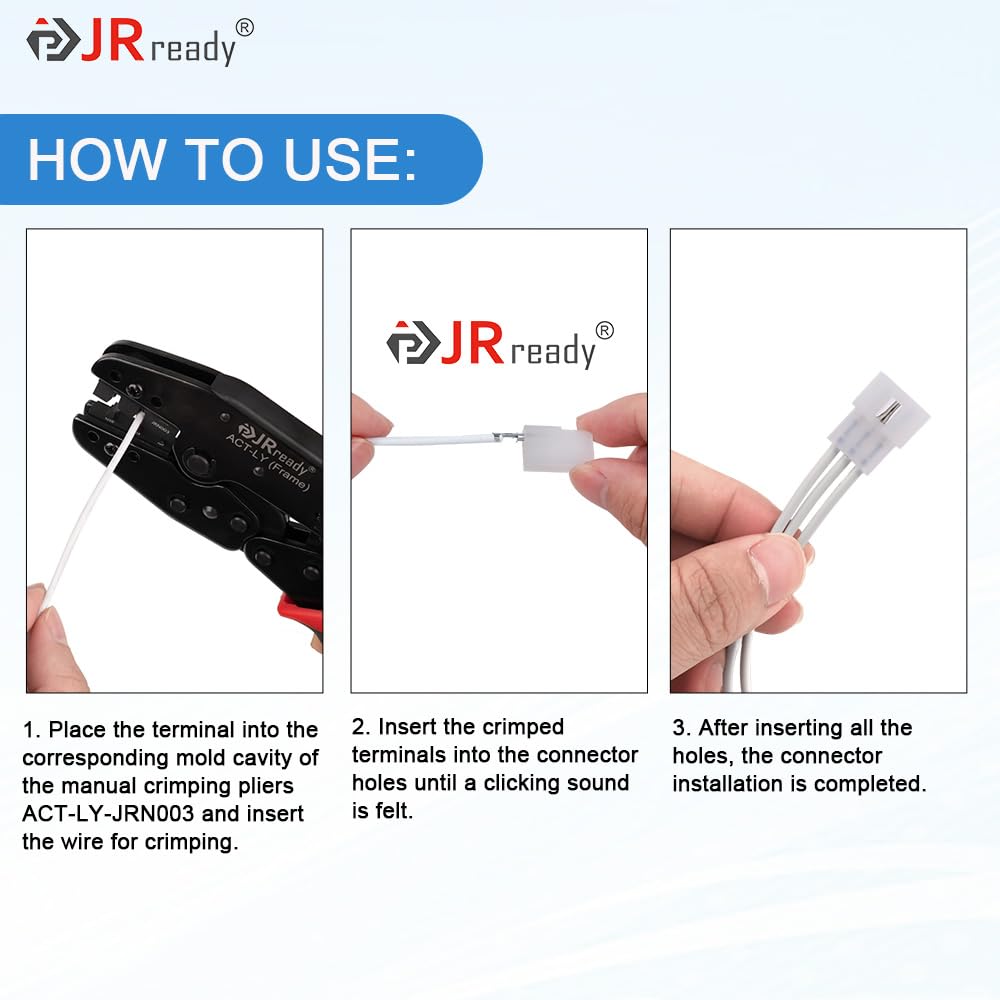

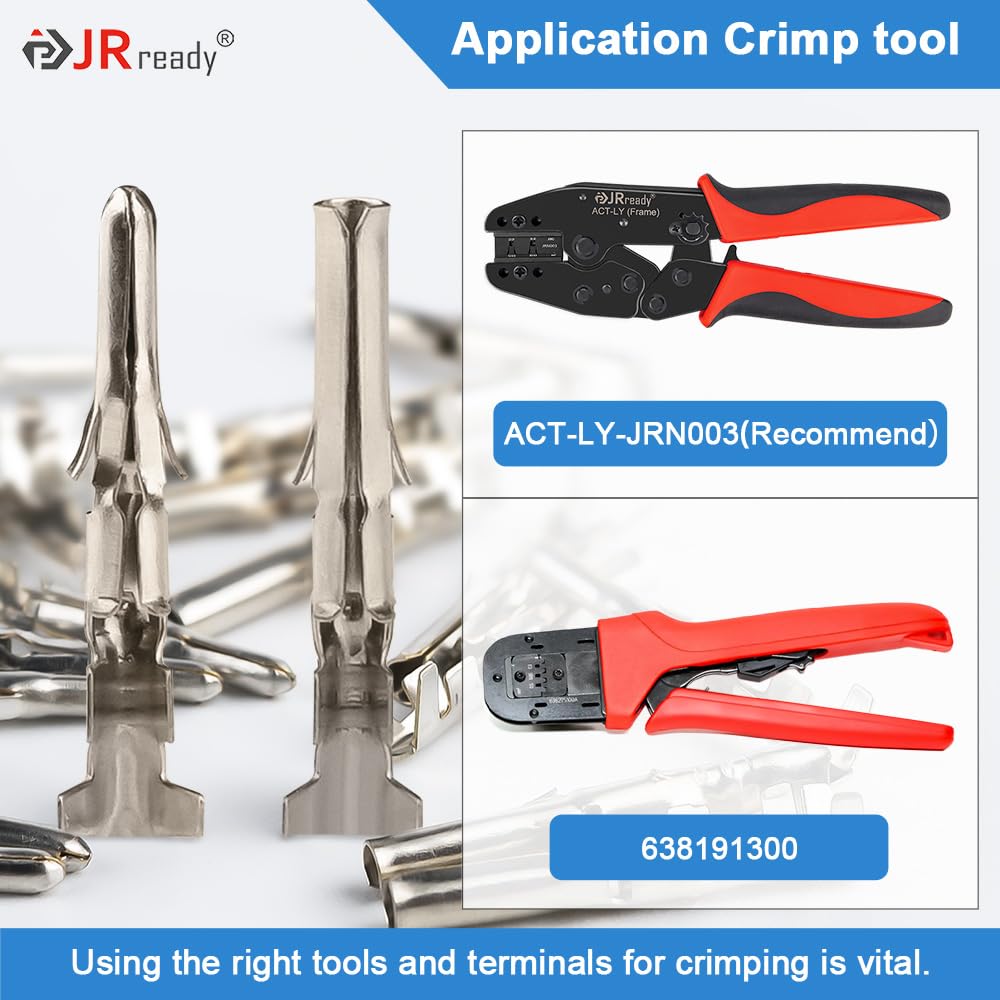

  • Application Crimp Tool: JRready ACT-LY-JRN003 Crimping Pliers,Molex 638191300 Crimping Pliers. suitable for crimping wire range 24 - 18AWG(0.2mm² to 0.8mm²).

model number: ST6405-JR

Part Number: ST6405-JR

Package Dimensions: 3.0 x 2.6 x 0.7 inches
