Long Shaft Clock Movement for Wall Quartz Clock Mechanism Replacement Kit with 2 Pairs of Hands Clock DIY Repair Parts Motor Replacemen Shaft Length 20 mm(4/5 Inch)

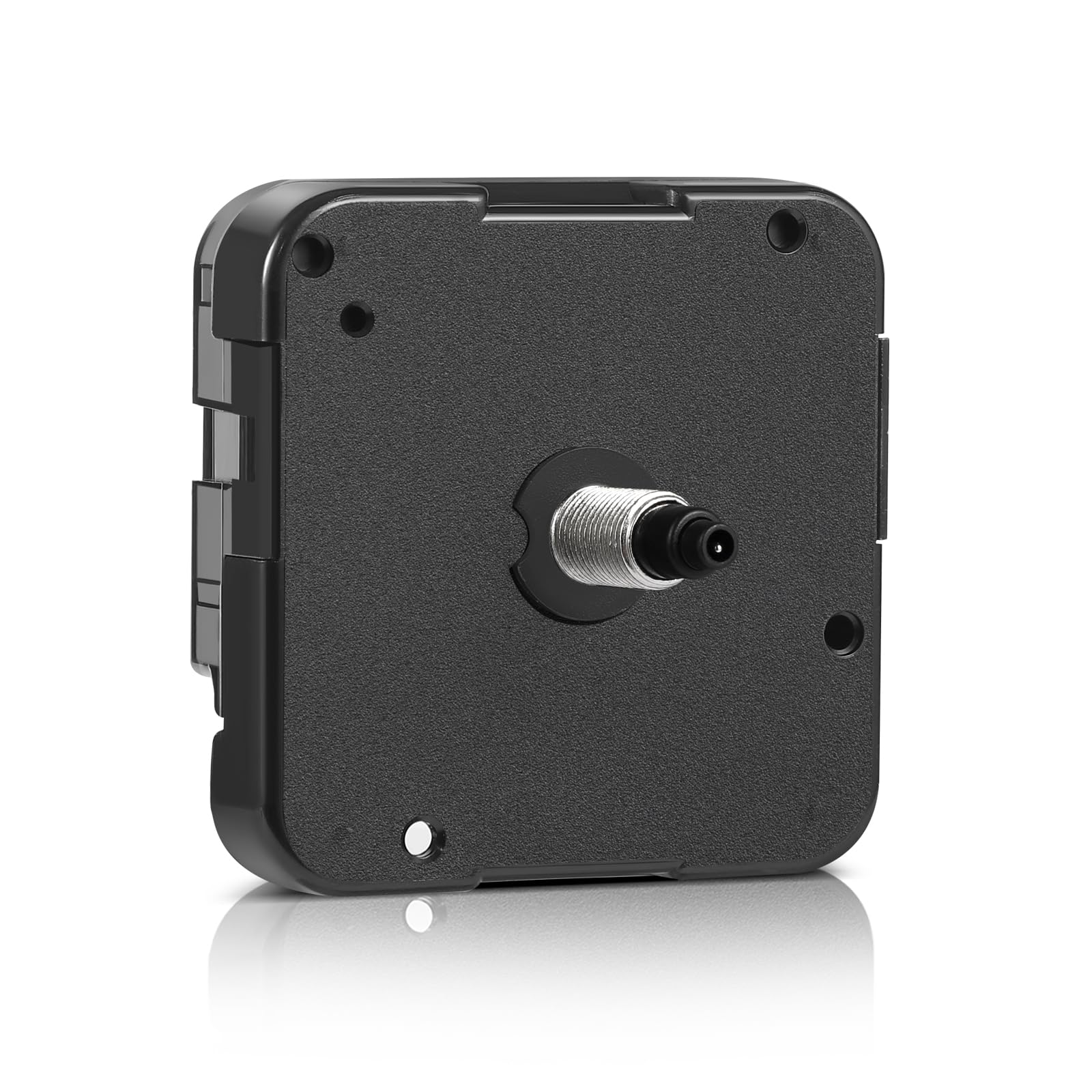

12888 quartz clock replacement movement parts with metal hook,good for repairing, replacing or making a clock.

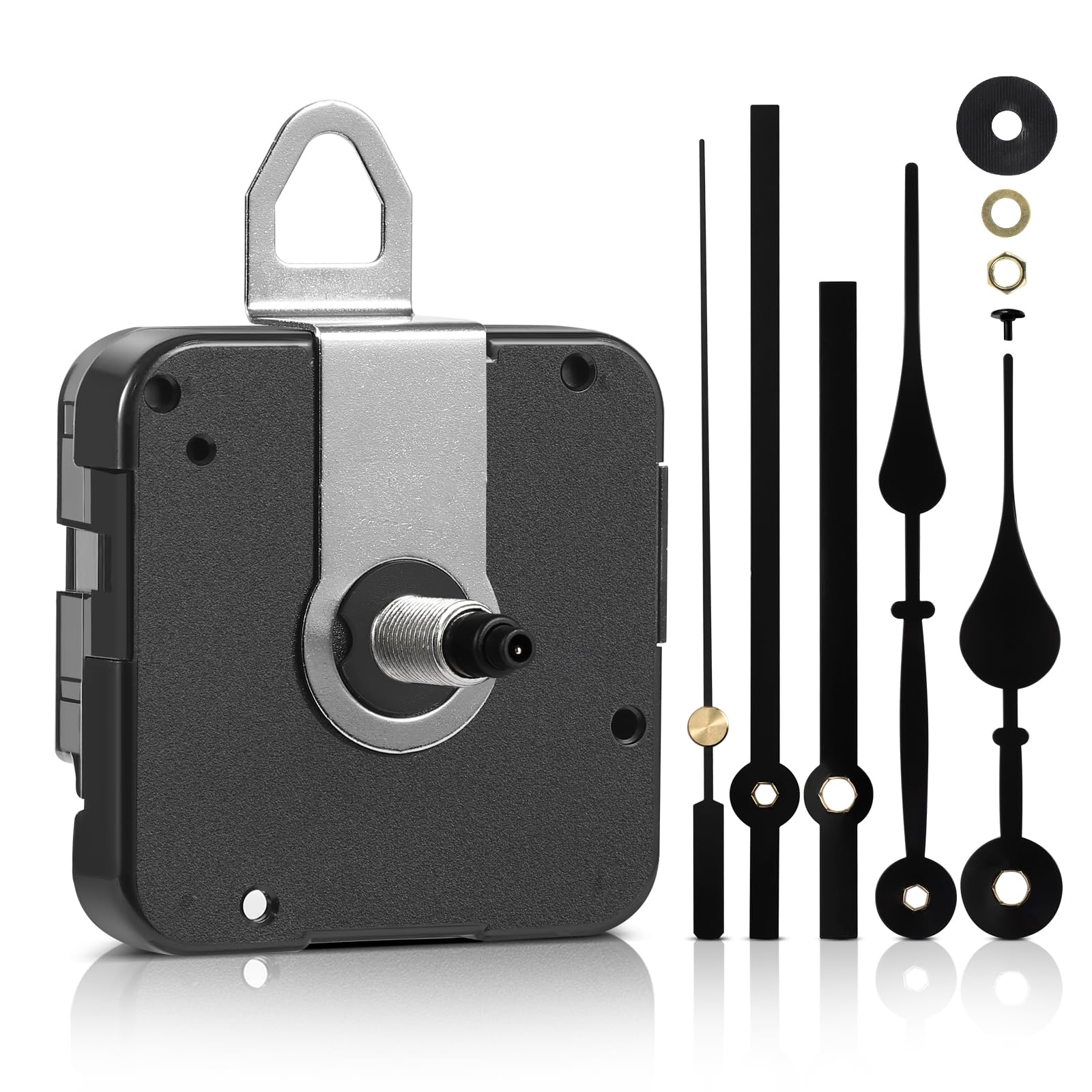

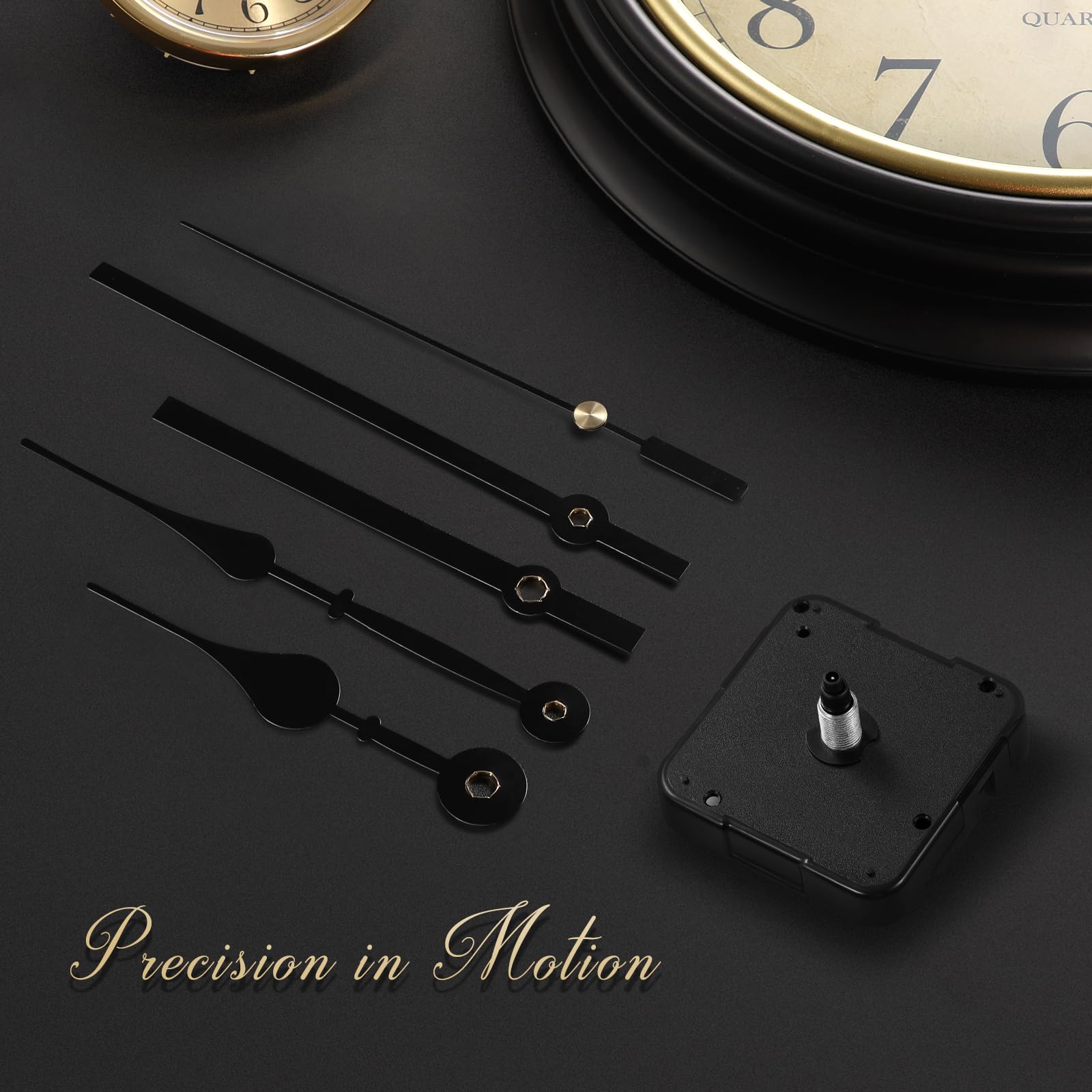

Package contents: 1 clock movements with 1 hooks,2 Hour hands,2 Minute hands,1 Second hands and all necessary mounting accessories.

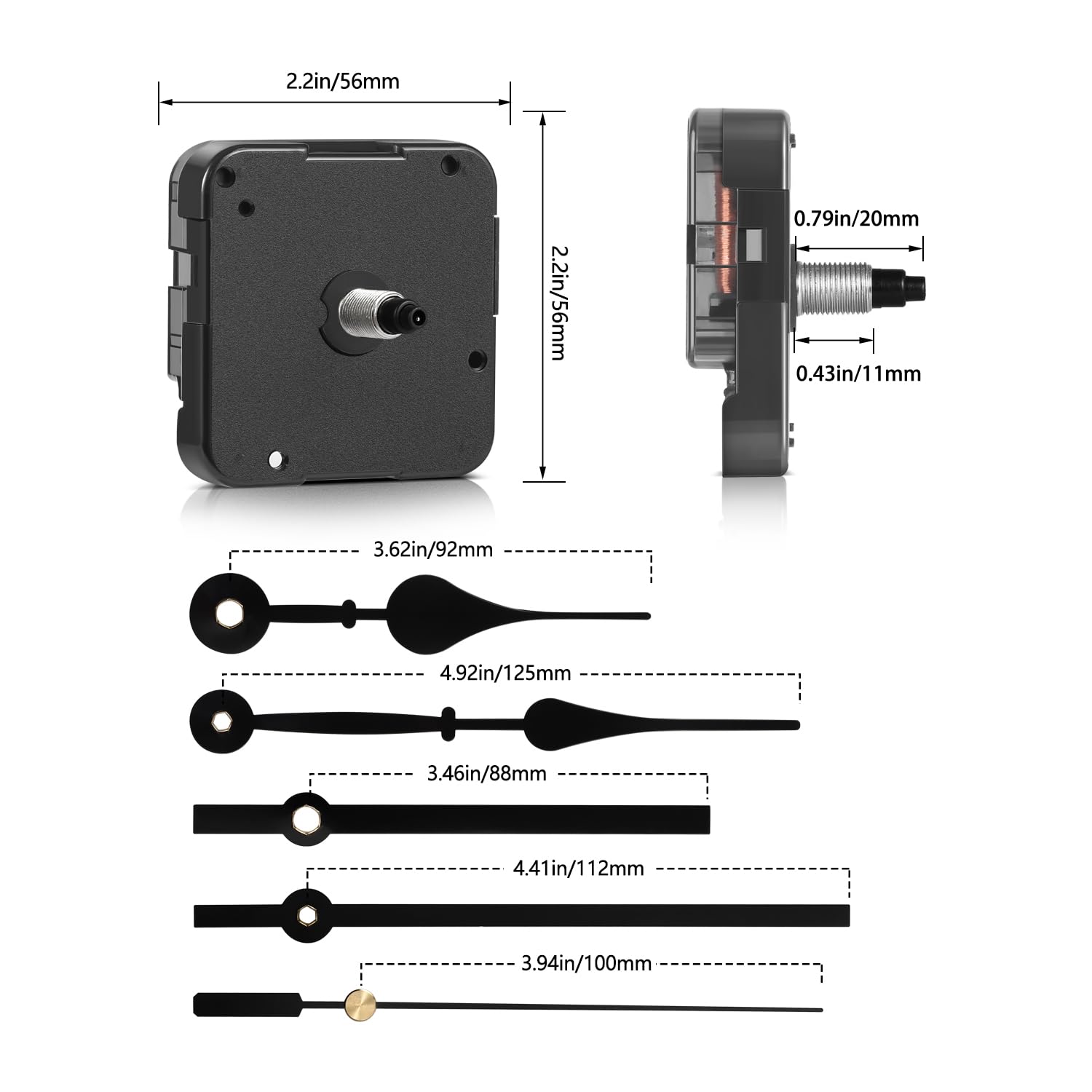

Parameter:Total shaft length is 20 mm (4/5 inch), thread length is 11 mm (7/16 inch).
clock movement:suitable for maxmium clock dial thickness 8mm(5/16 inch).
The complete clock movement kit is suitable for various clock frame styles, making them perfect for repairing, replacing, or DIY clock kits.
Binding: Tools & Home Improvement
model number: S200-T2-01
Part Number: S200-T2-01
Details: Installation Steps: 1.Place rubber cushion over shaft. 2.Insert shaft through hole in clock surface 3.Insert shaft through clock face (if appropriate). 4.Place dial plate washer over shaft. 5.Attach dial fixing hex nut. 6.Balance pressing fixed hour hand (Aim at 12 o'clock). 7.Balance pressing fixed minute hand. (Aim at 12 o'clock). 8. Lightly screw minute nut in place.(Go to the next stepwithout this accessory). 9.Press second hand in place (Aim at 12 o'clock).
