Malictele 300A Battery Disconnect Switch - Heavy Duty Waterproof Ignition Protected Cutoff for Marine, Boat, Car, RV, Truck
Malictele 300A Battery Disconnect Switch - Heavy Duty Waterproof Ignition Protected Cutoff for Marine, Boat, Car, RV, Truck
Couldn't load pickup availability
- Streamlined Switch Design: The ON/OFF knob switch is a single-circuit ON/OFF switch that connects one battery to a single load group. It's designed for low amperage battery switch holes and comes with 4 screws.
- Uninterrupted Power Switching: The make-before-break contact design allows for switching between battery banks without interrupting the power supply.
- Exceptional Quality: Constructed with high-quality ABS plastic for the housing and tinned copper studs, this design helps prevent leakage at the battery switch, protects the power source, and safely disconnects the battery.
- Spark-Proof Design: Featuring an ignition-proof design, it can be safely installed on gasoline-powered boats. The chassis design supports surface, front panel, or rear panel mounting. Suitable for yachts, RVs, off-road vehicles, modified vehicles, and ATV UTVs.
- Safety Protection: With a continuous rating of 300A—45% higher than standard switches, and a maximum voltage of 48V DC, it eliminates any power draw from the battery when the vehicle or boat is not in use, safely disconnecting the battery.
Product Feature

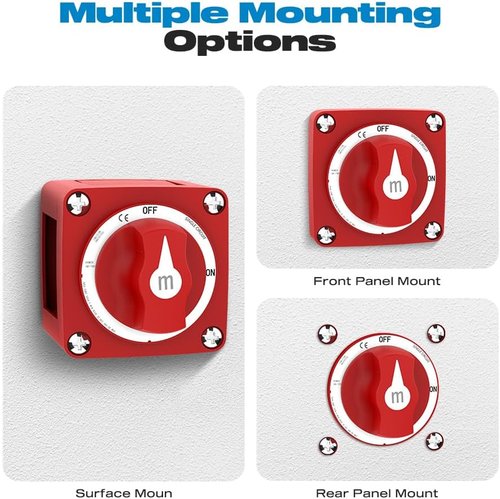

1.Wide Compatibility: The chassis design supports installation on the surface, front panel, or rear panel. Suitable for yachts, RVs, off-road vehicles, modified cars, and ATV UTVs.
2.Uninterrupted Power Transition: The make-before-break contact design allows for switching between battery banks without cutting off the power supply.
3.Superior Quality: Made with high-quality ABS plastic and tinned copper studs, it's resistant to high temperatures, corrosion, and water, ensuring faster and safer electricity flow.
4.Safety Protection: Offers a continuous current rating 45% higher than standard switches—300A, with a maximum voltage of 482V DC. It eliminates any power consumption from the battery when vehicles or boats are not in use, ensuring a safe disconnection.
5.Complete Kit: The package includes 1 battery switch and 4 stainless steel screws, aiding in secure installation,eliminates the need for you to purchase additional parts.
Single Circuit ON-OFF Battery Disconnect Switch 275A
Specifications:

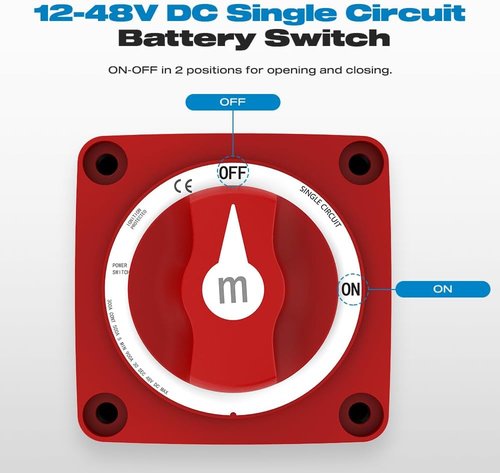

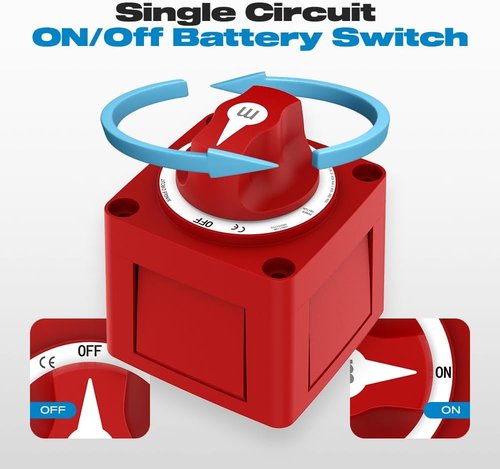

Switch Type:Single Circuit ON-OFF, with Knob
Function:Switches a single battery to a single load group
Battery Inputs:1
Switch Position:2
Ratings:900A Cranking (30 sec)/ 500A Intermittent (5 min)/ 300A Continuous
Voltage Max Operating:48V DC

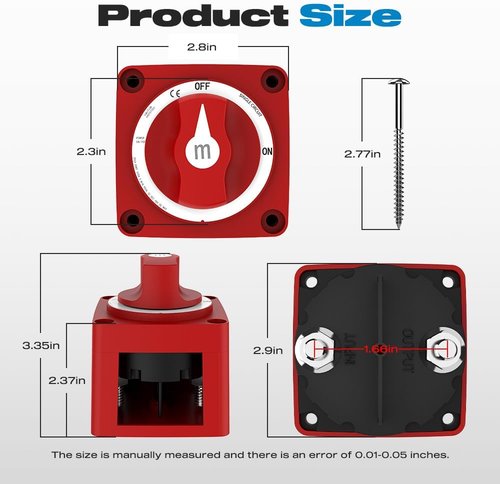

Terminal Stud Size:3/8"-16 x 7/8" (M10 x 22 mm)
Max Terminal Stud Torque:120 in-lb. (13.56 N-m)
Ingress Protection:IP66 - Protected against powerful water jets

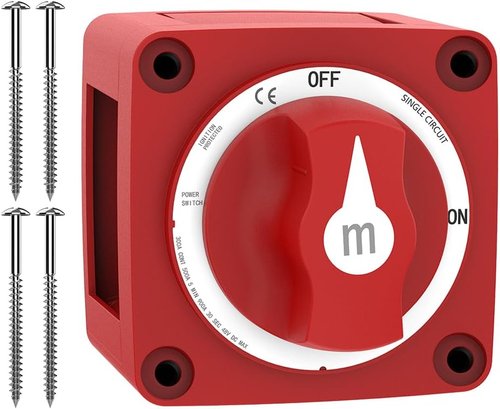

Package Includes:
- 1 x Switch
- 4 x Screws
M10 Tinned Copper Studs and Nuts
M10 Copper bolts are made of high quality copper, thicker than ordinary studs, faster and better conductivity, safer and more reliable, not easy to leakage.
Waterproof Housing
The housing is made of high-quality plastic, waterproof performance, not afraid of rain washout at the same time high temperature resistance and anti-corrosion, so you can rest assured that the use.
300A Power Switch

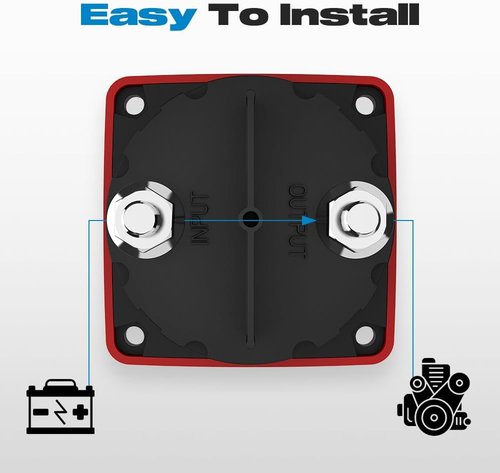

It is a 300A two-position power switch that can withstand high currents,45% higher than standard switches, and a maximum voltage of 48V DC,and is very easy to install. The knob is flexible and easy to use and has a long service life.
Wide Range of Applications
Wide Application: Suitable for isolating and protecting circuits in 12-48V systems, it can be used alone or locked together with other switches, extensively used in cars, boats, RVs, campers, travel trailers, trucks, ATVs, UTVs, battery banks, and other equipment.
