MRBF Terminal Fuse Block - 200A Marine Rated Battery Fuse | IP66 Waterproof Protection for RVs & Cars
MRBF Terminal Fuse Block - 200A Marine Rated Battery Fuse | IP66 Waterproof Protection for RVs & Cars
Regular price
$27.95 USD
Regular price
$48.99 USD
Sale price
$27.95 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

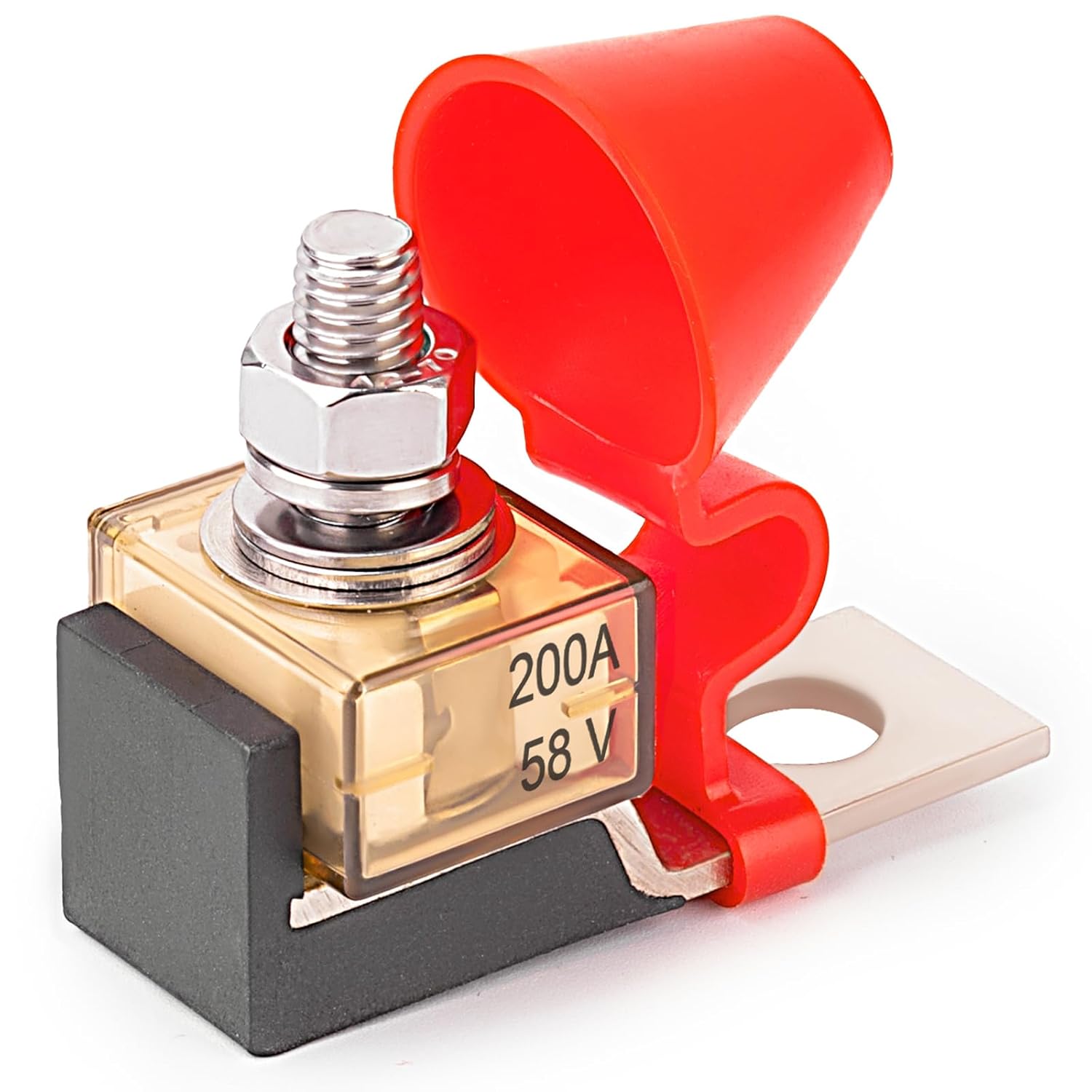

- Product Description: MRBF Terminal Fuse + Fuse Holder; Max Voltage Rating: 58V; Amperage Rating: 200A;Fuse Holder Stud Size: M8 (5/16"); Fuse Holder Mounting Hole: M10 (3/8")
- Clever Design: The insulating cap serves to prevent accidental short circuits, making the fuse holder waterproof and dustproof, and minimizing the impact of environmental factors on its performance.
- High Quality Material: The battery terminal fuse kit is mainly made of ceramic, the seat material is PPS UL.94-V0 thermoplastic, the surface of the ring terminal is tin plated, ensuring robust protection and exceptional safety attributes.
- High Quality Material: The battery terminal fuse kit is mainly made of ceramic, the seat material is PPS UL.94-V0 thermoplastic, the surface of the ring terminal is tin plated, ensuring robust protection and exceptional safety attributes.
- Applications:Commonly used in new energy vehicles, RVs, cruise ships, cranes, batteries, charging piles, as well as other DC main power supplies, inverters, windlasses, and bow thrusters.
Specification:
Type: MRBF Terminal Fuse Block

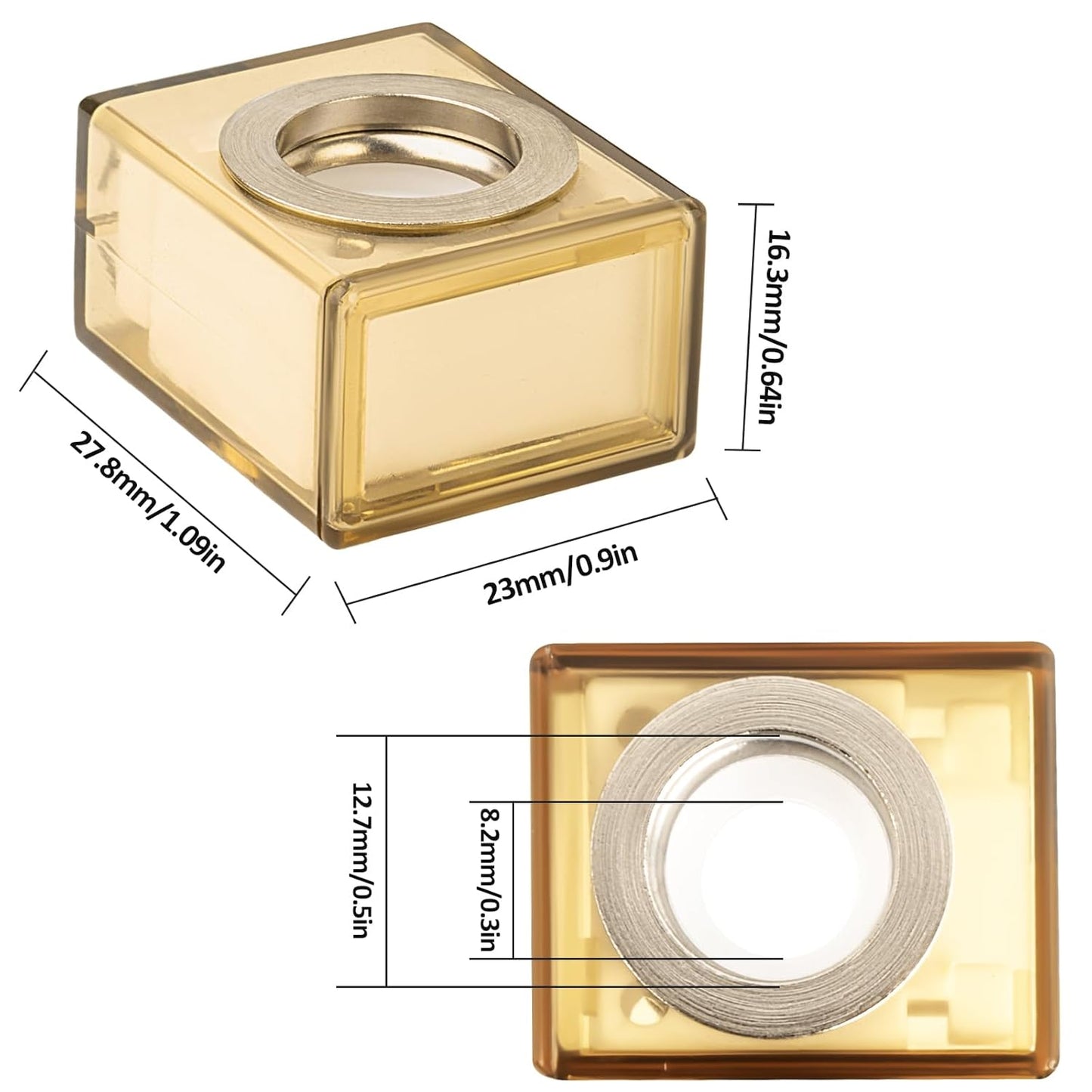

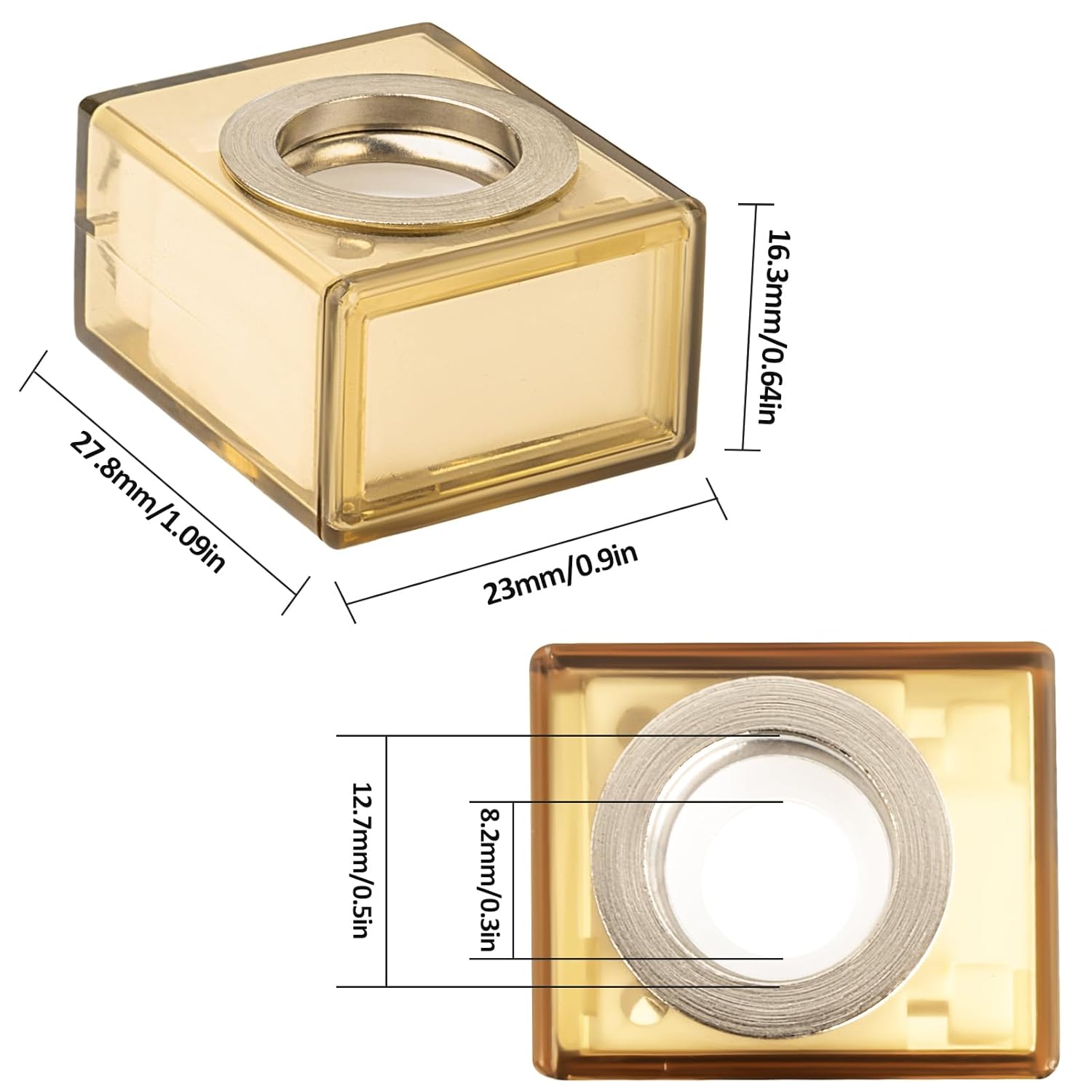

Dimension: 27.8 x 23 x 16.3mm/1.09 x 0.9 x 0.64in

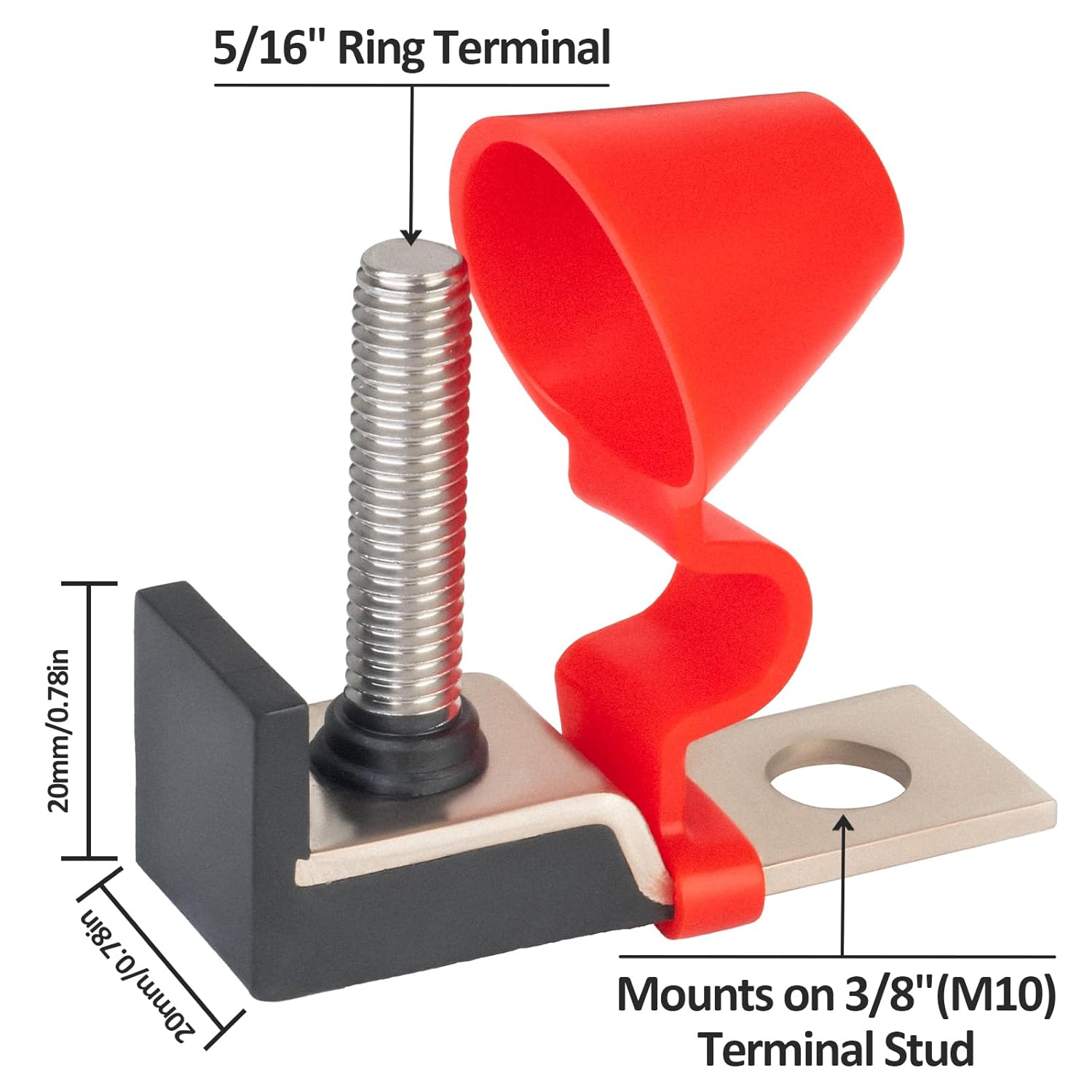

Fuse Holder Stud Size: M8 (5/16")
Fuse Holder Mounting Hole: M10 (3/8")
Voltage: 58V DC Max
Current: 200A
Temperature range: -40C° to +125C°
Fuse type: DC direct fuse
Protection property: overload, short circuit

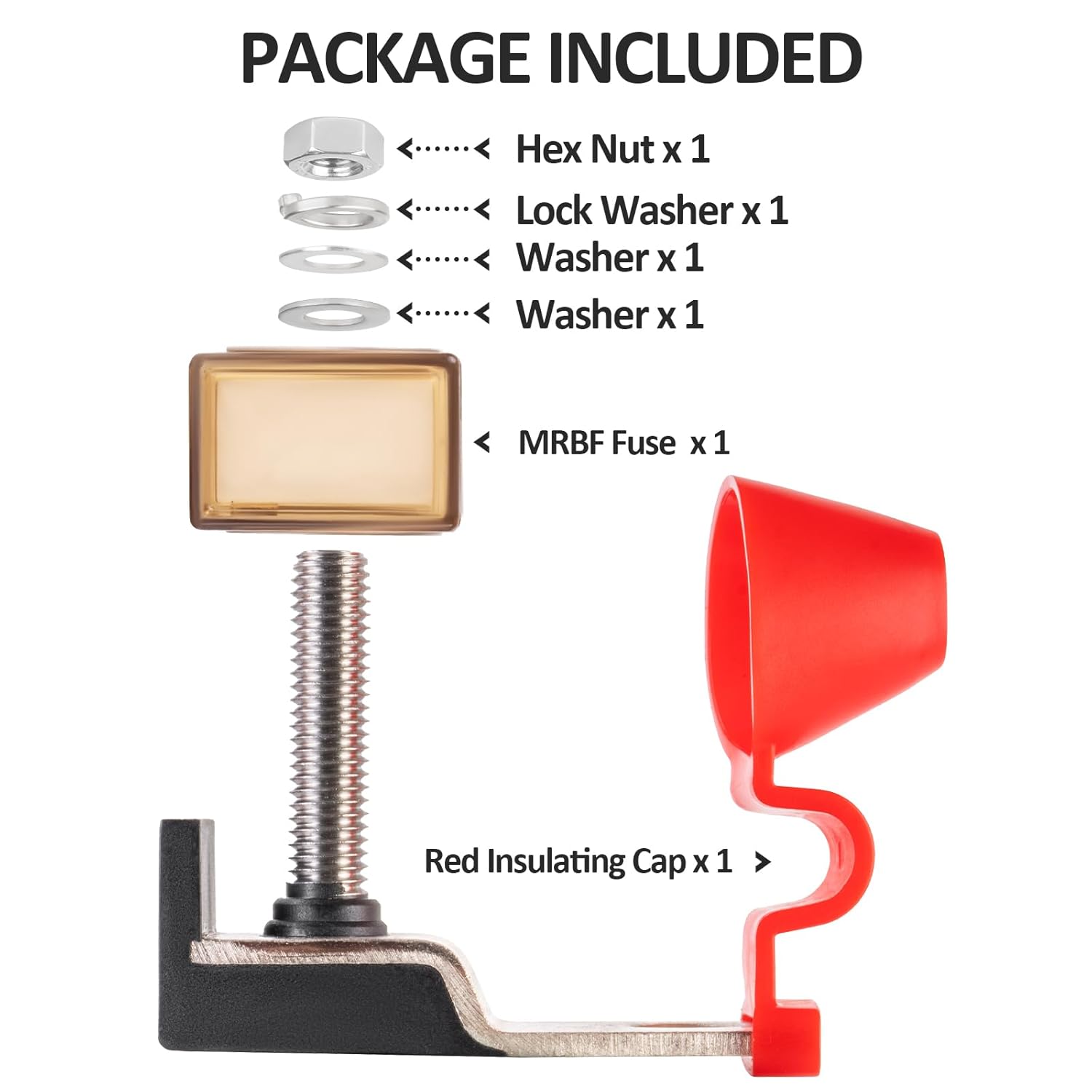

Package list:
1 PCS x MRBF Fuse 200A
1 PCS x MRBF Terminal Fuse Block
1 PCS x Red Insulating Cap
2 PCS x Washer
1 PCS x Lock Washer
1 PCS x Hex Nut
