Professional Fiber Cleaver with 16-Port High Precision Blade | 48,000 Cleaves Capacity & Auto Scrap Collection | FTTH Fiber Optic Cutter for 0.25/0.9/3.0mm Cables

Brand: NovaGrowth

Color: Orange

Features:

• Ultra-Precise Cleaving Technology Engineered to deliver industry-leading <0.5° cutting angle accuracy, ensuring flawless fiber end-face preparation for seamless fusion splicing. Certified to meet IEC 61300-3-27 standards for telecom-grade performance.
• Intelligent Fiber Retention System Dual-size V-groove accommodates 250µm bare fiber & 900µm coated fiber.Precision-calibrated scale enables 8-20mm cleave length adjustments (±0.5mm tolerance). Precision-calibrated scale enables 8-20mm cleave length adjustments (±0.5mm tolerance).Anti-slip clamping mechanism prevents fiber displacement during operation.
• Multi-Application Compatibility Field service teams & mobile splicing units,Telecom infrastructure maintenance,Laboratory R&D environments,FTTH/FTTA deployment specialists,Certified fiber optic training programs.

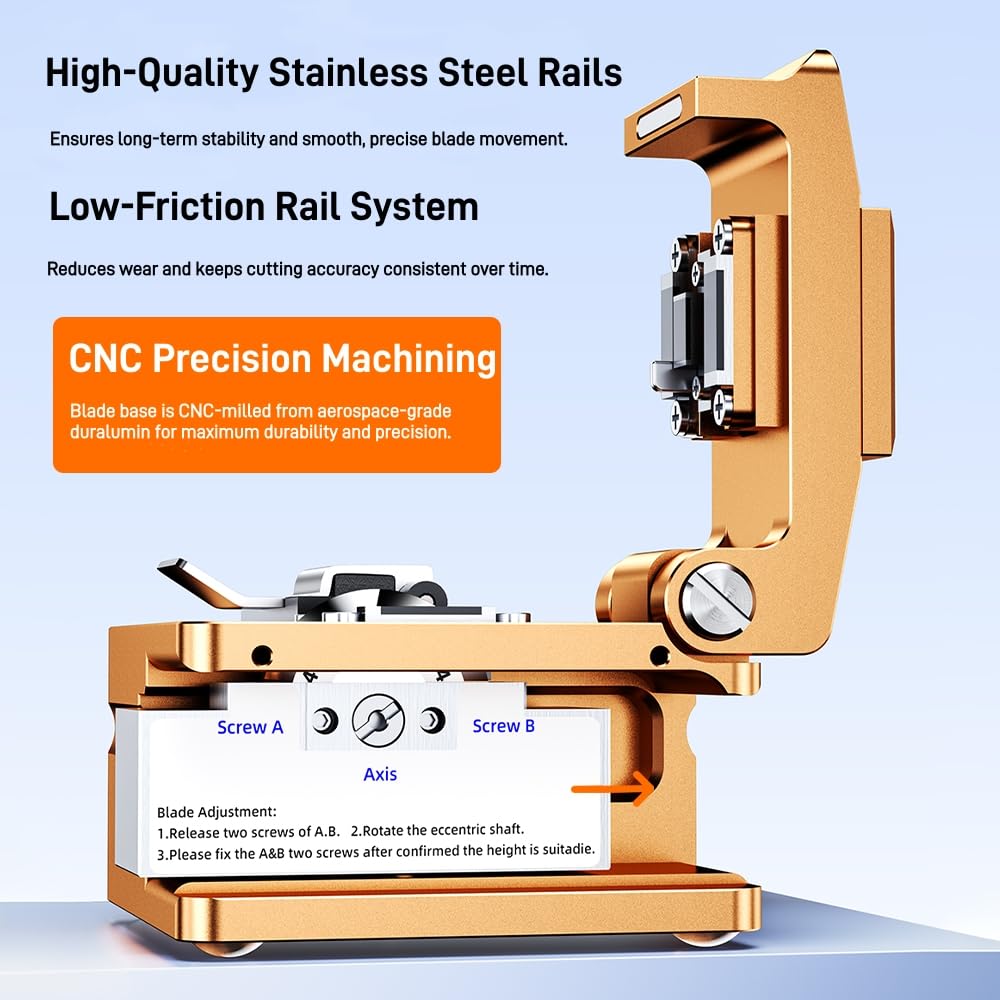

• Military-Grade Durability Features CNC-machined aluminum alloy base with oxidation-resistant coating.Shock-absorbing polymer housing (IP54 rated).Tool-free disassembly for blade maintenance,Ergonomic thumbwheel with torque control (5-15N·m adjustable).
• Extended Blade Economics 48,000-cycle lifespan (3,000 cleaves/blade × 16 positions),Diamond-coated cutting edge maintains sharpness through 48000+ cleaves,Visual wear indicator for proactive blade rotation.

model number: S09

Details: NovaGrowth Professional Fiber Cleaver | <0.5° Ultra-Precision | 48K-Cycle Blade | ETL Certified

🔬 Precision Engineering

Achieve telecom-grade cleaving with NovaGrowth's <0.5° angular accuracy (IEC 61300-3-27 compliant). Our diamond-coated blade system produces mirror-smooth end faces, reducing splice loss to ≤0.1dB in fusion splicing operations.

⚙️ Smart Fiber Management

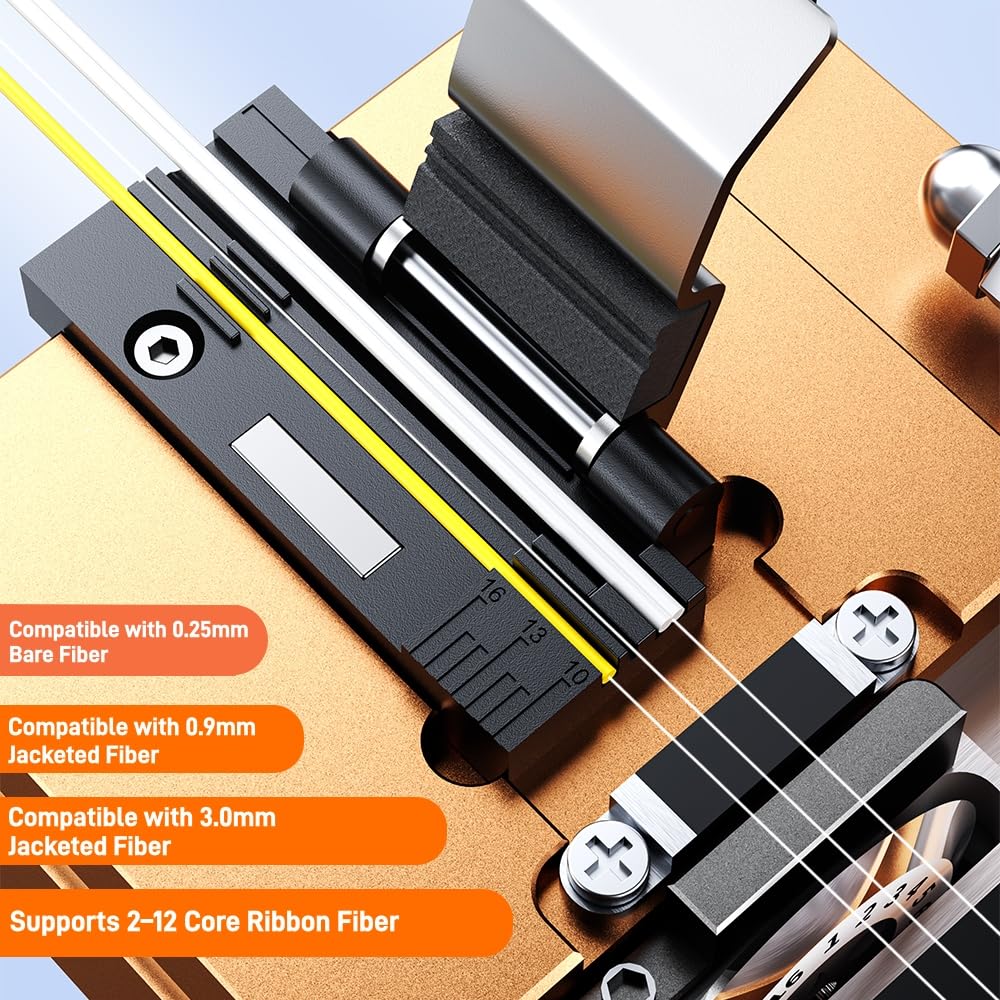

Dual V-groove design: Secures 250µm bare & 900µm coated fibers
Magnified scale: Enables 8-20mm cleave length control (±0.5mm tolerance)
Anti-vibration base: Minimizes micro-cracks during handheld field operations

🏆 Military-Spec Durability

CNC-machined 6061-T6 aluminum frame with anti-corrosion coating
IP54-rated housing protects against dust/moisture ingress
Shock-absorbing TPE grips (15° ergonomic tilt angle)
Tool-free blade cartridge replacement in <30 seconds

📊 Unmatched Blade Economics

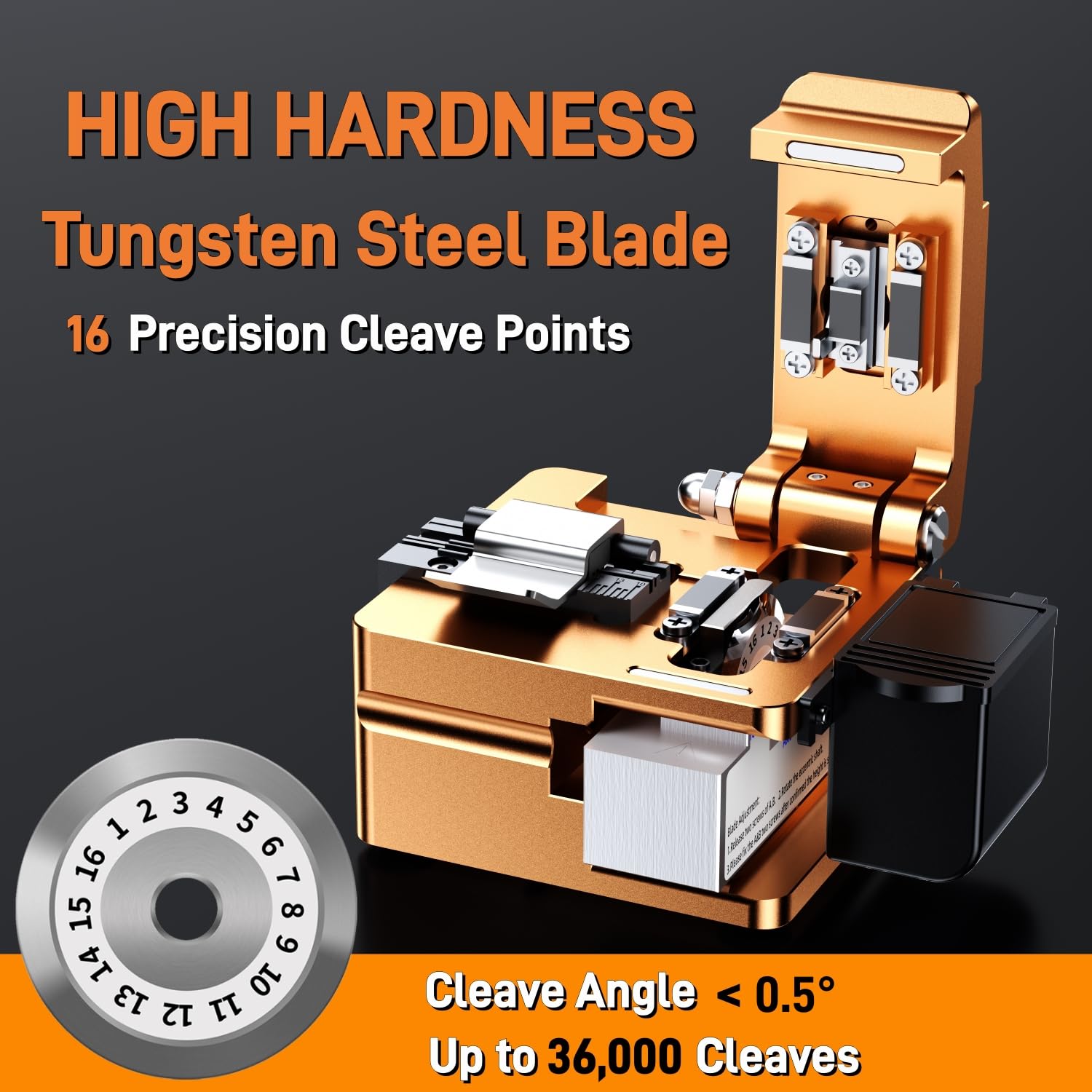

4 pre-loaded diamond blades (expandable to 16 positions)
48,000 total cleaves: 3,000 cycles/blade × 16-edge rotation system
Visual wear indicator (green→red color transition)
Includes OSHA-compliant blade disposal case

🌐 Multi-Scenario Application

✓ Field splicing trucks & aerial fiber deployment
✓ Data center cross-connect maintenance
✓ FTTH/GPON network installations
✓ Fiber optic training & certification programs

📜 Compliance Assurance

ETL Listed (UL 61010-1 Safety Standard)
RoHS 2.0 & REACH SVHC Compliant
18-month warranty + 30-day performance guarantee
Includes: Cleaver, calibration tool, EN/CN/ES user manual

Technical Highlights:

» Blade Force: 5-15N·m (thumbwheel adjustable)
» Operating Temp: -13°F to 131°F (-25°C to 55°C)
» Weight: 9oz (250g) - 50% lighter than industry average
» Package Dimensions: 3.5×3.15×3" (90×80×75mm)

NovaGrowth Advantage: Every unit undergoes 23-point QC inspection and pre-calibration. Backed by 24/7 technical support from certified fiber engineers.

EAN: 0702214375232

Package Dimensions: 3.9 x 3.6 x 3.1 inches
