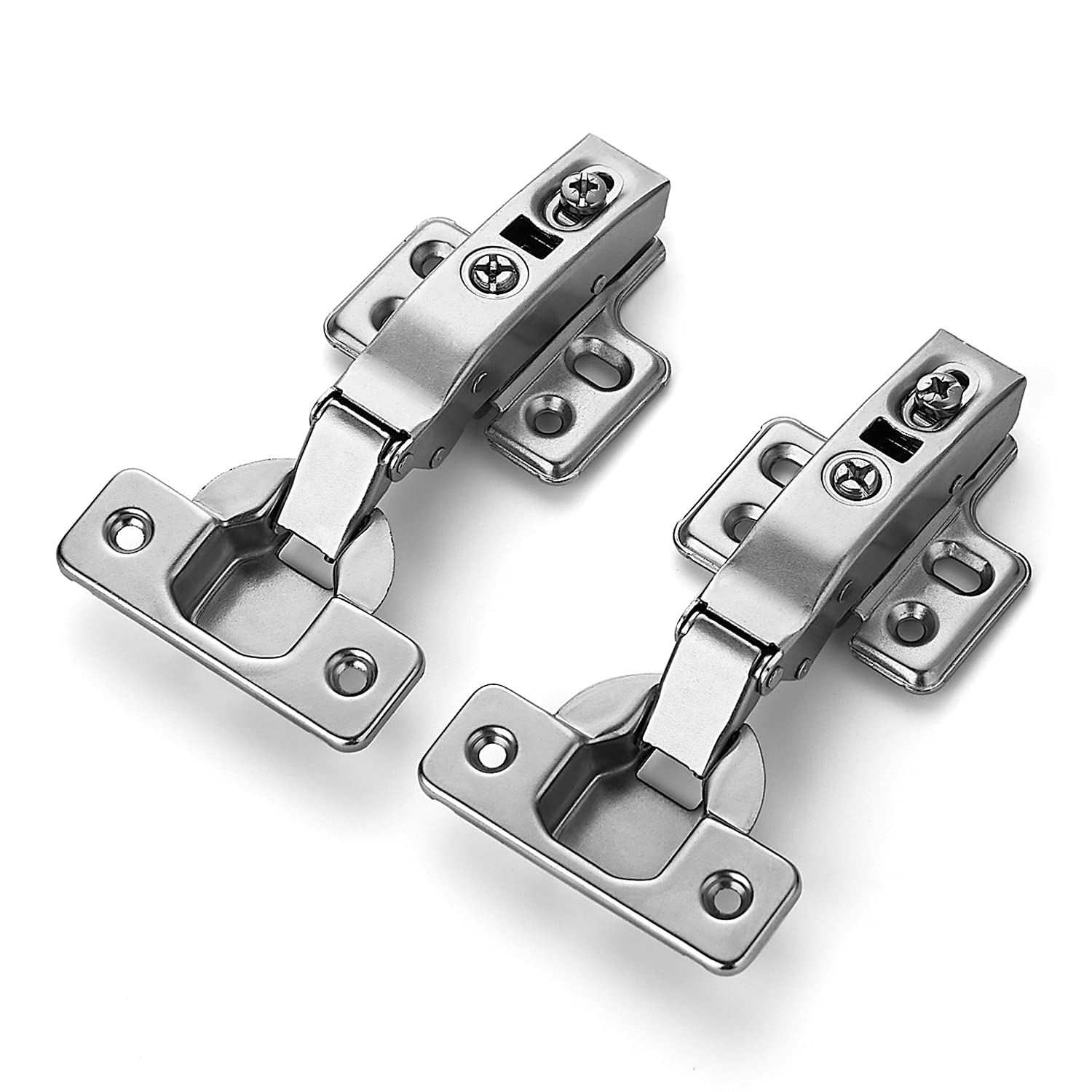

Ravinte 2 Pack 1 Pairs European Kitchen Cabinet Hinges Soft Close Full Overlay Cabinet Door Hinges Heavy-Duty Frameless Adjustable Concealed Cabinet Cup Hinge
Full overlay type: The euro-style concealed kitchen cabinet hinge fit for full overlay doors on frameless cabinets. The cabinet door cover the cabinet almost completely with a 1/4inch of space between the doors or drawer. It’s not fit for face frame cabinet.

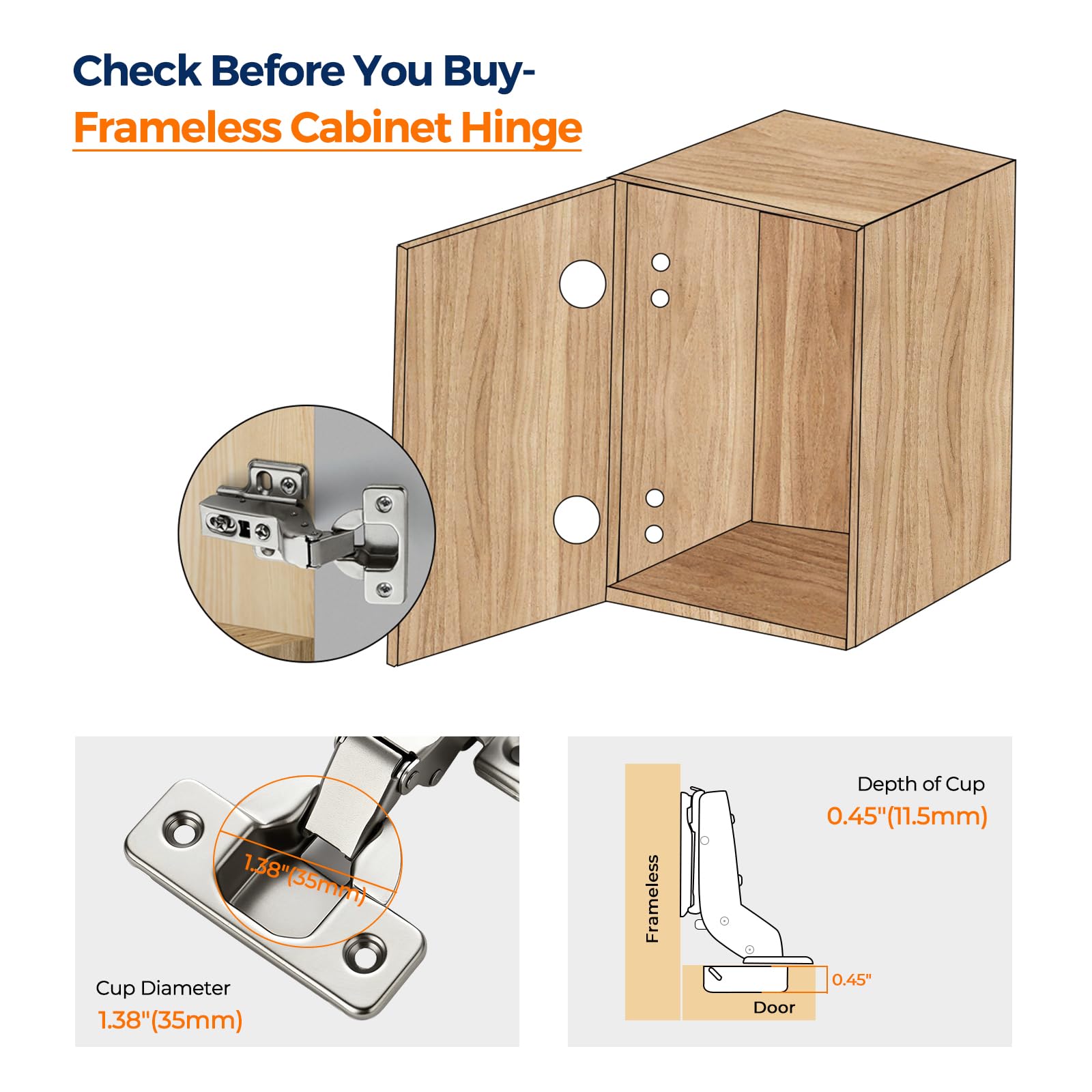

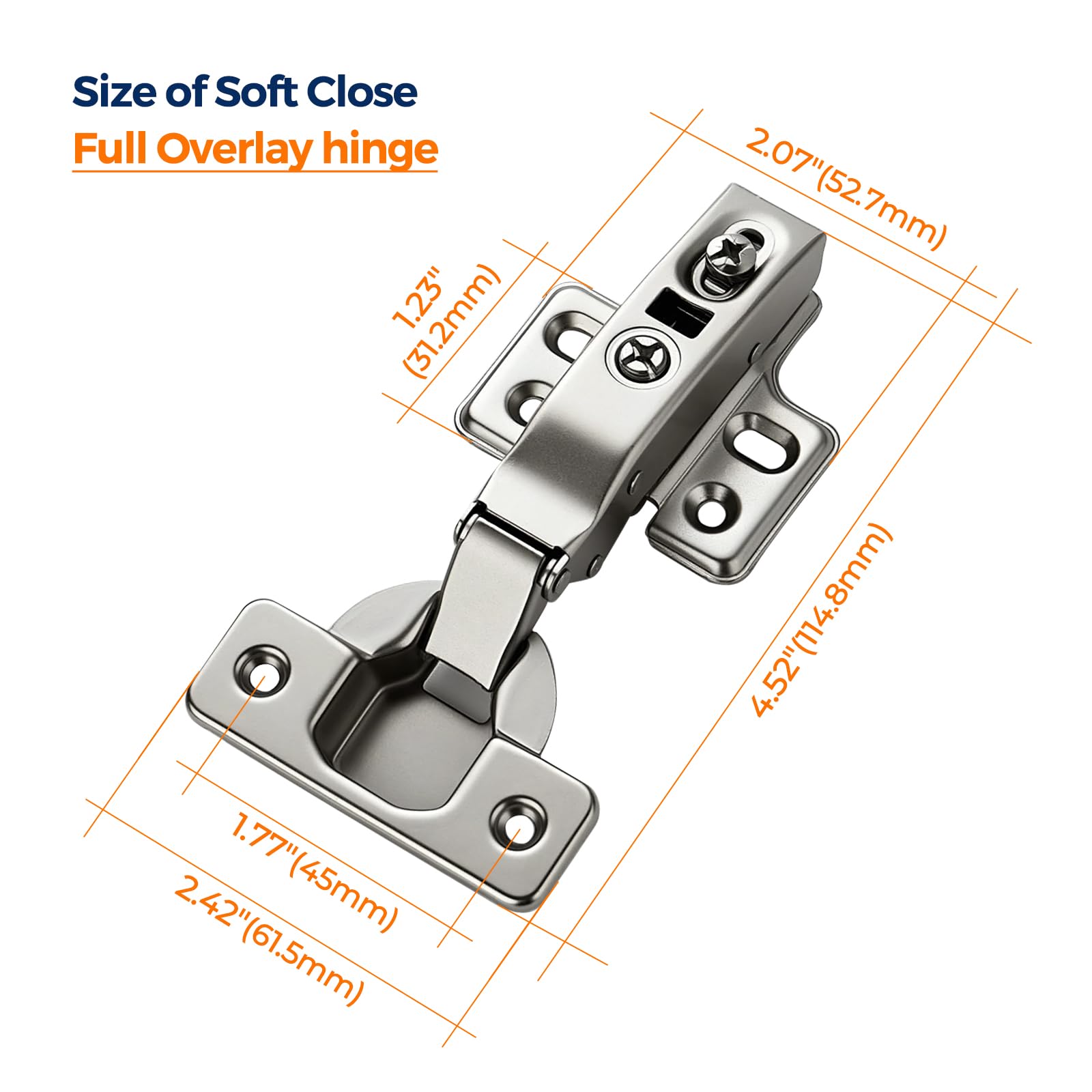

Installation specification: Diameter of the cup is 35mm, depth of the cup is 11.5mm, screw holes distance on the door is 45mm. And the range of door thickness is 14-22mm. Opening degree:105 degree.

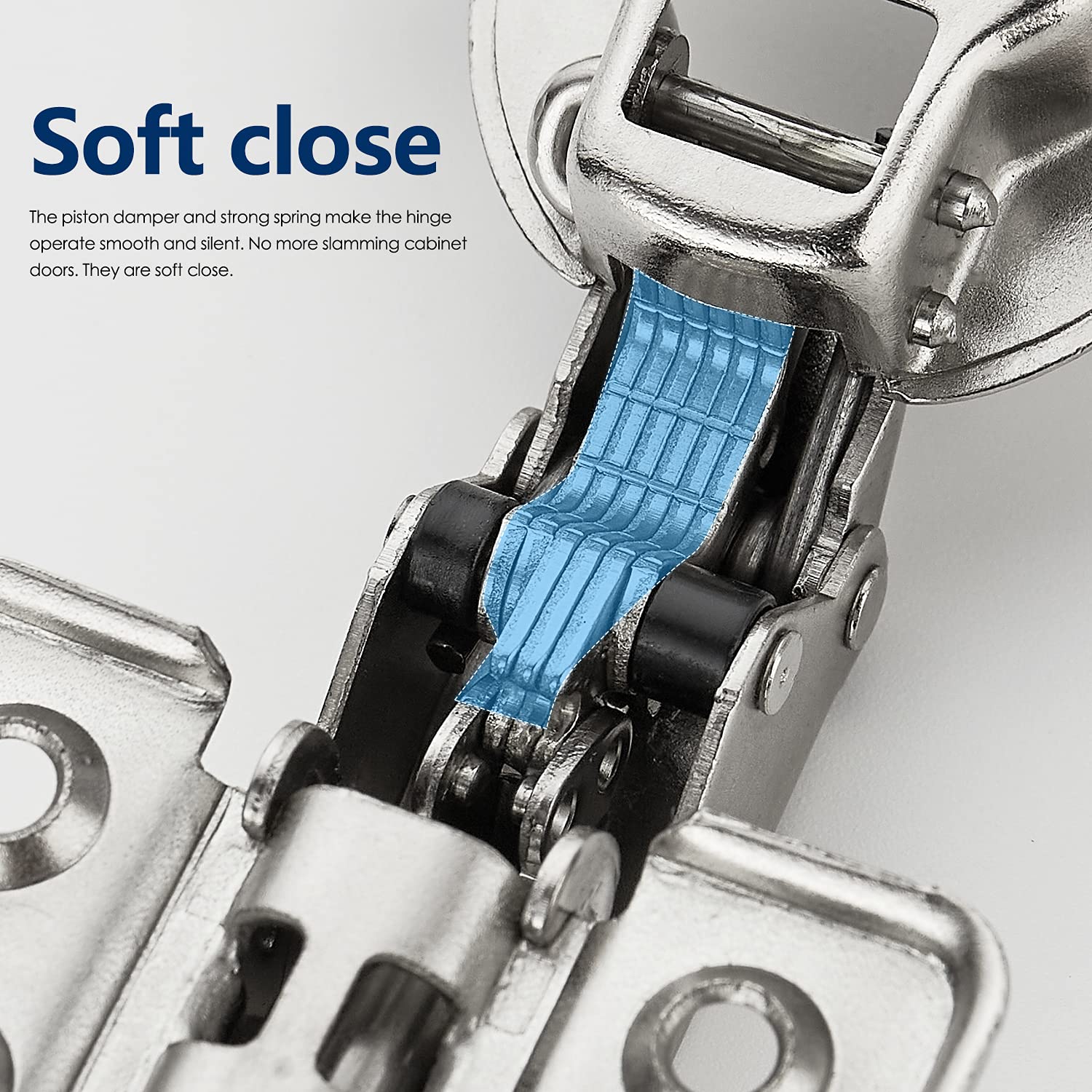

Soft close: The piston damper and strong spring make the hinge operate smooth and silent. No more slamming cabinet doors. They are soft close.

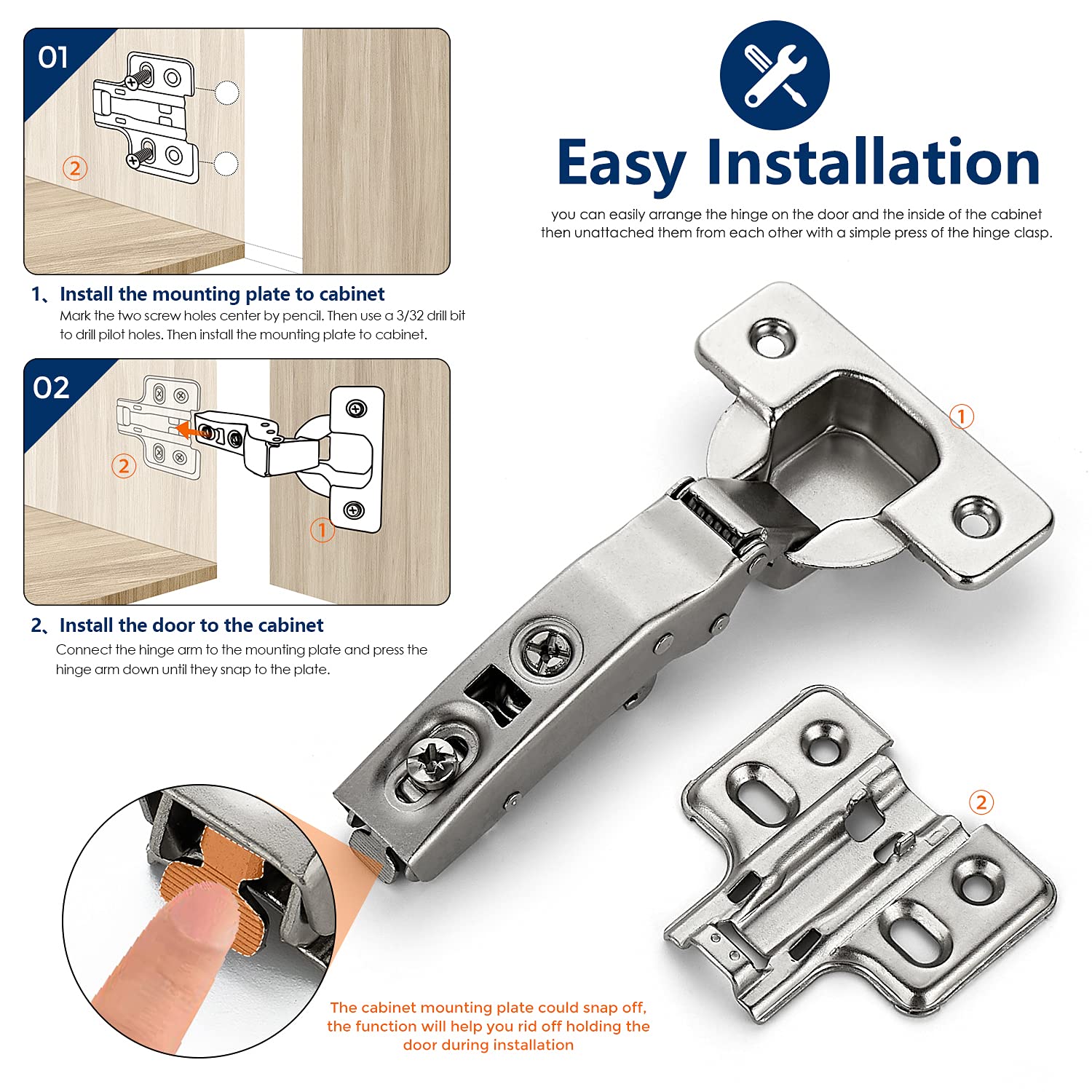

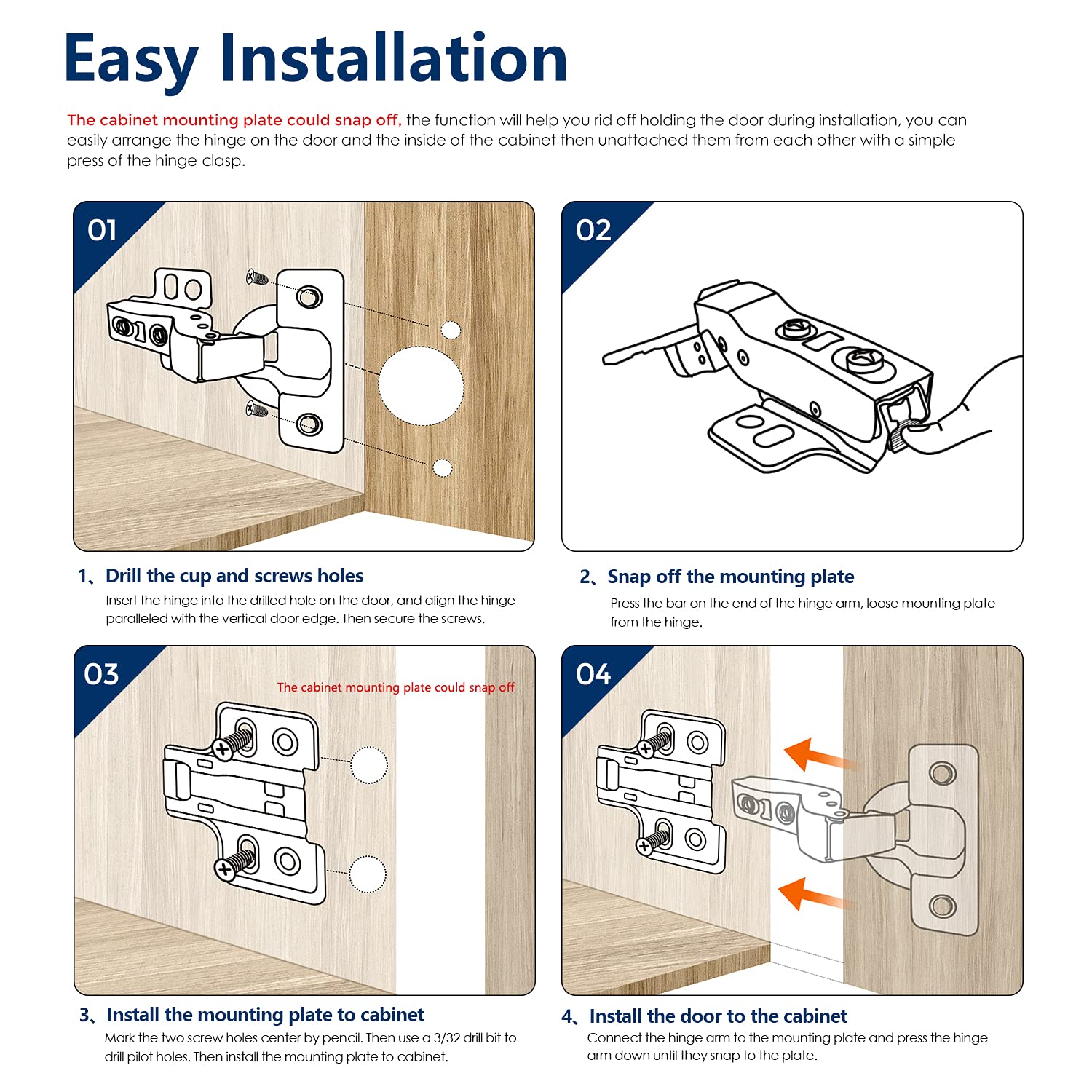

Easy installation: The cabinet mounting plate could snap off, the function will help you rid off holding the door during installation, you can easily arrange the hinge on the door and the inside of the cabinet then unattach them from each other with a simple press of the hinge clasp.

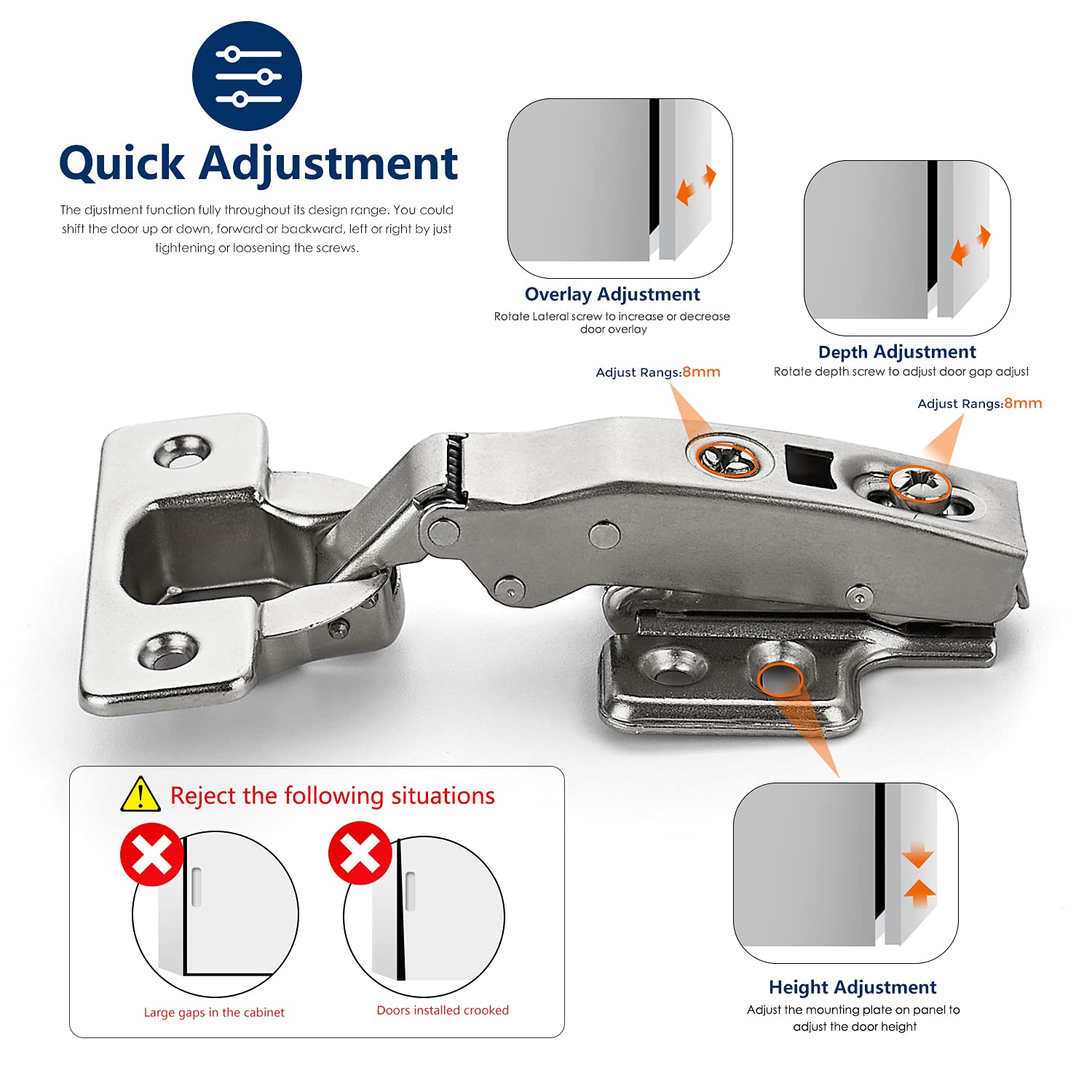

Quick adjustment: The adjustment function fully throughout its design range. You could shift the door up or down, forward or backward, left or right by just tightening or loosening the screws.
Release Date: 15-08-2024
model number: 05908351-2245-40c1-83ea-fc754a6d58f0
