About this item

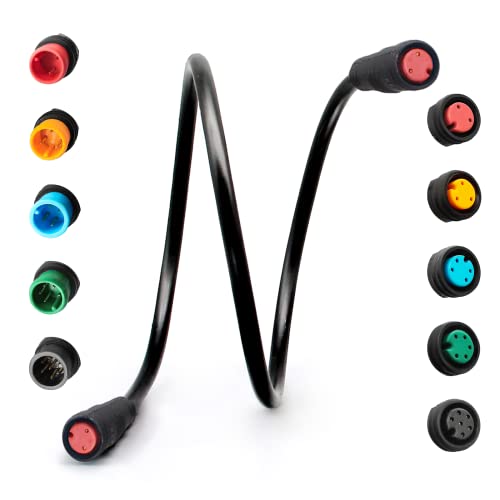

• Ebike Extension Cable suitable for most electric bikes.When you find that the cable on your electric bike is not long enough, such a waterproof extension cable can be very helpful for you
• 2pin 3pin 4pin 5pin 6pin double-ended waterproof cable, can be used for electric bicycle lights, accelerator, ebreak, pas sensor, operation button and display screen respectively
• Female to Male ,Male to male, waterproof grade IP66, applicable temperature is -40℃～+85℃, you can use it in rainy days or cold outdoors with confidence
• Connection: 2 Pin Female to Male,2 Pin Female to Female,3 Pin Female to Male,3 Pin Male to Male,4 Pin Female to Male,5 Pin Female to Male,6 Pin Female to Male,8Pin Female to Male
• This kind of waterproof cable is also suitable for the Mid motor hub wheel motor,cable length of 800mm is enough for all conventional electric bicycles, electric motorcycles, and electric scooters

Ebike Extension Cable Parameter:

• Brand: JULET
• Model: Double-ended waterproof signal line
• Temperature range: -40 ° C ~ +85 ° C
• Rated voltage: 200V AC
• Contact resistance: ≤10mΩ
• Insulation resistance: ≥10MΩ under normal conditions and humid conditions
• Withstand voltage: AC 200V 50Hz 1 minute without breakdown or flashing
• Contact: Copper alloy tin/gold plating

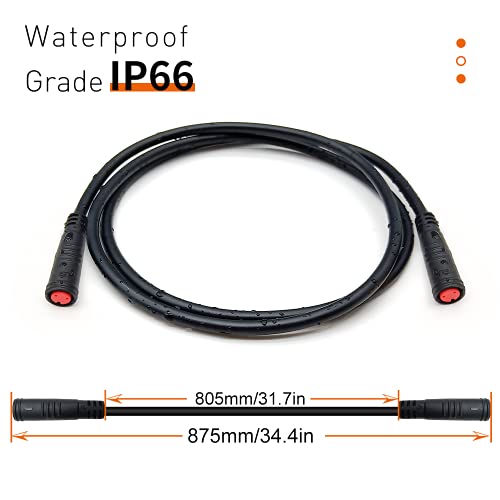

• Protection level: IP66
• Mechanical life: 200 times
• Maximum outer diameter: 9mm
• Use wire specification: 0.05mm-0.2mm 2
• Applications: Power supply and signal transmission for electrical and electronic equipment（Light/Throttle/Ebrake/Display/PAS/sensor)

Cable Length:

• 2 pin male-male 800mm

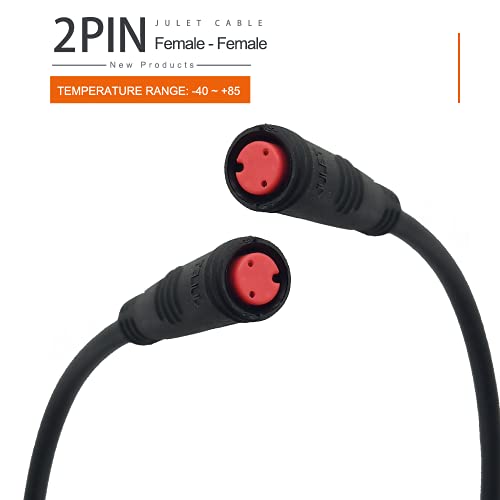

• 2 pin female-female 800mm
• 3 pin male-male 800mm
• 3 pin male-female 800mm
• 3 pin female-female 800mm
• 4 pin male-female 800mm
• 5 pin male-female 800mm
• 6 pin male-female 800mm

800mm is enough for all conventional electric bicycles, electric motorcycles, and electric scooters
