YIXIN 48V 4 Terminal Solenoid Coil Compatible with Club Car 95-Up DS and 04-Up Precedent Golf Carts 101908701 102774701 SW80-1275P

Brand: YIXIN

Features:

• 【Part Number 】Replace for Club Car SW80-1275P 101908701 102774701 1019087-01 1027747-01 Stens 435-459 J & N 240-22240 Albright SW80-2028P Arrowhead 240-22240
• 【Application】Compatible with Club Car 95-Up DS and 2004-2008 Precedent Golf Carts
• 【Spec】48V 4 Terminal Solenoid Switch Silver Contacts Continuous Duty
• 【Note】Take care not to overtighten the nut/terminal during installation.You'd better often check the nuts as they may become loose over time.
• 【Customer Service】 If you have any inquiries about model or installation or other aspects, please feel free to contact us before ordering.

Part Number: 101908701

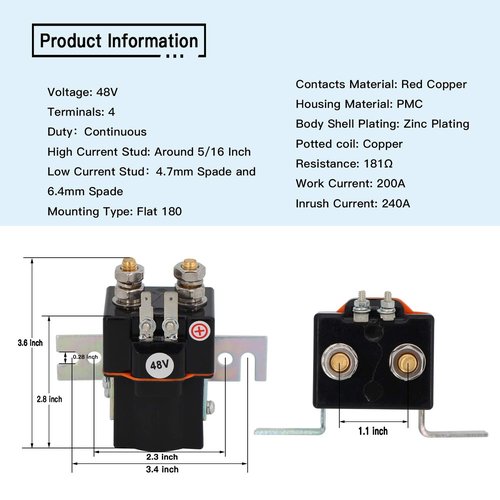

Details: 【Spec】
Voltage: 48V
Terminals: 4
Duty：Continuous
High Current Stud: Around 5/16 Inch
Low Current Stud：4.7mm Spade and 6.4mm Spade
Mounting Type: Flat 180
Contacts Material: Red Copper
Housing Material: PMC
Body Shell Plating: Zinc Plating
Potted coil: Copper
Resistance: 181Ω
Work Current: 200A
Inrush Current: 240A
【Replace for】
101908701 102774701 1019087-01 1027747-01 Albright SW80-2028P
【Compatible With】
Club Car 95-Up DS and 2004-2008 Precedent Golf Carts

EAN: 0194852801561

Package Dimensions: 5.2 x 3.7 x 3.3 inches
