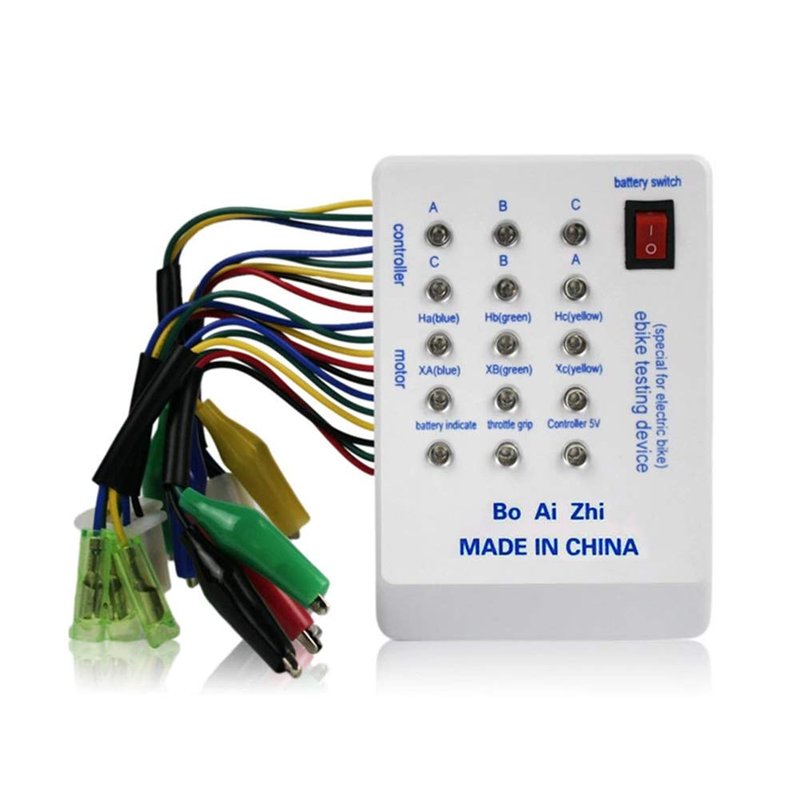

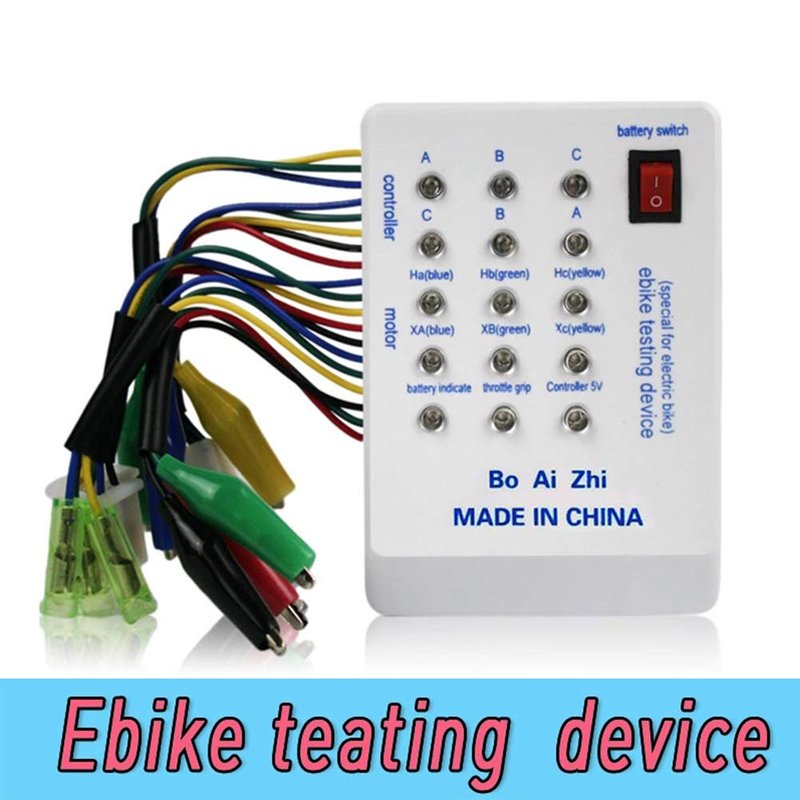

ZHANGLI E-Bike Tester 24V/36V/48V/60V/72V Brushless MotorTester with Indicator, Portable Riding Quick Battery Powered Spared Device Tester Controller

Brand: ZHANGLI

Color: White

Features:

• Function: Quickly test whether the brushless motor coil is good or not.
• Applicable machine: 24 V / 36 V / 48 V / 60 V / 72 V.
• Temperature: Relative temperature ≤80°c.
• Check brushless controller: Quickly check if the brushless controller is good or bad.
• Check phase angle: Quickly check if the phase angle is 60 degrees or 120 degrees.

model number: 15978220730344

Part Number: 15978220730344

Details: Features:
Quickly test whether the brushless motor coil is good or bad
Quickly test whether the brushless controller good or bad
Quickly test whether the the brushless motor phase sequence is ABC and abc colors
Quickly test whether the the phase angle is 60 degrees or 120 degrees
Quickly test whether the brushless motor hall's good or bad

Specifications:
Name: Electric Car Scooter Brushless Controller Tester
Applicable Machine: 24V/36V/48V/60V/72V
Working Temperature: -20C-50C
Relative temperature 80c

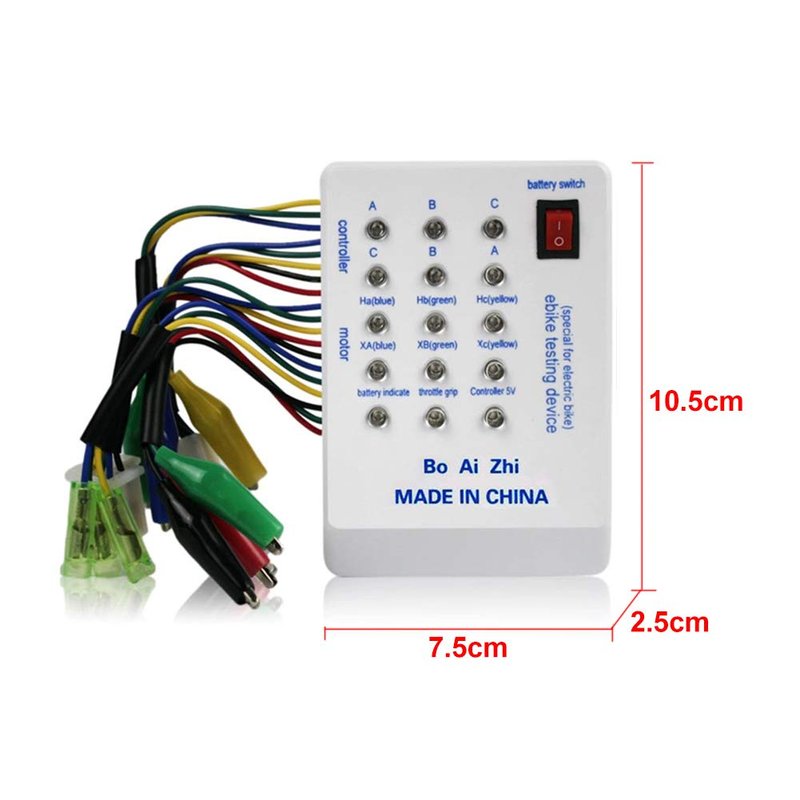

Dimension:10.5x7.5x2.5cm
Power: 9V battery(included)

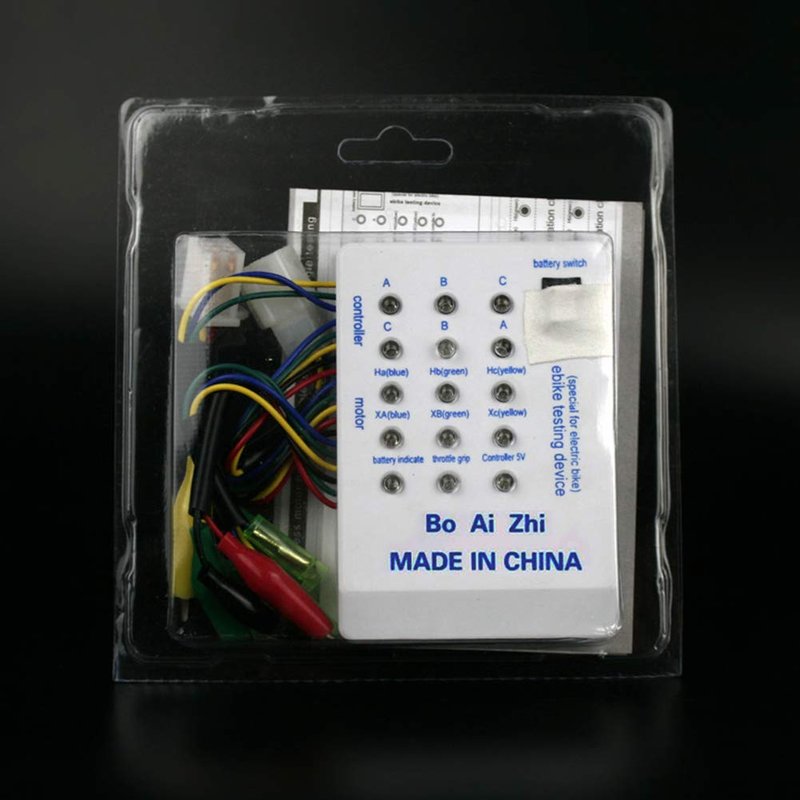

Package included:
1x Brushless Motor Tester
1x Manual in English

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.

EAN: 0694341555550

Package Dimensions: 6.0 x 5.7 x 1.5 inches
